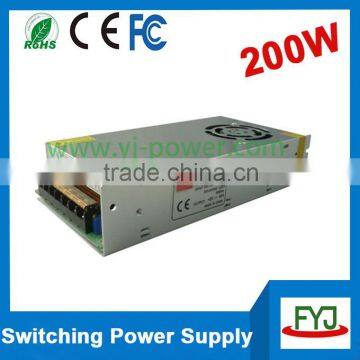

AC 220v to DC 24v 8.5a switch mode power supply for LED equitment Single output nonwaterproof 24v 200w driver

200W Switching Power Supply

Model

200W-5V

200W-12V

200W-15V

200W-24V

200W-36V

Output

DC Voltage

5V

12V

15V

24V

36V

Rated Current

40A

17A

13A

8.5A

5.5A

Current Range

0~40A

0~17A

0~13A

0~8.5A

0~5.5A

Rated Power

200W

204W

195W

204W

198W

Ripple & Noise (max.)

100mVp-p

100mVp-p

150mVp-p

150mVp-p

150mVp-p

Voltage Adj. Range

4.75~5.5V

11.4~13.2V

14.3~16.5V

22.8~26.4V

34.2~39.6V

Voltage Tolerance

±2.0%

±2.0%

±2.0%

±1.0%

±1.0%

Line Regulation

±1.0%

±1.0%

±1.0%

±0.5%

±0.5%

Load Regulation

±5.0%

±5.0%

±5.0%

±5.0%

±5.0%

Setup,Rise time

600ms,30ms at full load

Hold Up Time(Typ.)

13ms at full load

Input

Voltage Range

90~132VAC/180~264VAC

Frequency Range

47~63HZ

Efficiency(Typ.)

83%

86%

85%

88%

90%

AC Current (Typ.)

5A/115VAC         3A/230VAC

Inrush Current (Typ.)

30A/115VAC         50A/230VAC

Leakage Current

<2mA / 240VAC

Protection

Over Load

110~115% rated output power

Protection type: Shut down O/P,re-power on to recover

Over Voltage

5.5~6.75V

13.2~16.2V

16.5~20.25V

26.4~32.4

39.6~48.6V

Protection type: Shut down O/P,re-power on to recover

Over Temperature

100°C±5°C(5V~12V); 105°C±5°C(15V~36V); TSW1 detect on main power transformer for others

Protection type: Shut down O/P,recovers automatically after temperature goes down

Environment

Working Temperature

 -20~+40°C

Working Humidity

20~90% RH  Non-condensing

Storage temp.& humidity

-20~+85°C, 10~95%RH

Temp. coefficient

±0.03%/°C (0~50°C)

Vibration

10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes

Safety & EMC

Safety Standards

RoHS,CE approved

Withstand Voltage

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

Isolation Resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

Others

MTBF

10000hrs     MIL-HDBK-217F (25°C)

Dimension

200*110*50mm (L*W*H)

Packing

0.75Kg; 30pcs/24Kg/1.79CUFT

Note

1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. Derating may be needed under low input voltages.
