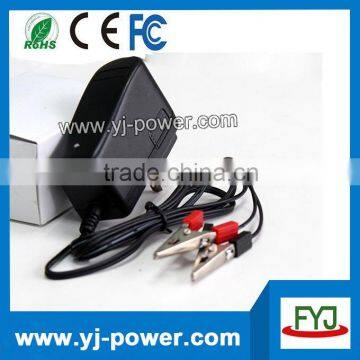

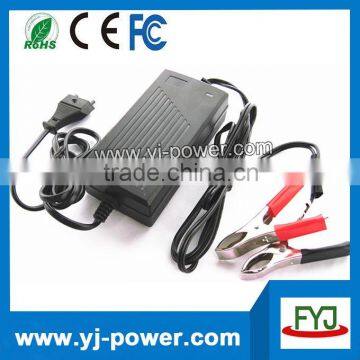

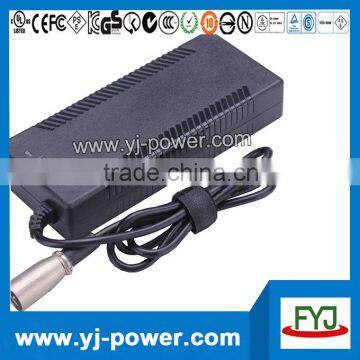

Lead acid battery charger
Model:6V 12V 24V 48V 36V 36 volt battery charger
Input : AC 110~240V 50/60HZ
Output Voltage Range of main products: 4.2~60V DC (Optional)
Output Current Range of main products: 0.3-50A (Optional)
6V Lead acid battery charger: 6.8V(Float Voltage), 7.3V(Top Voltage)
12V Lead acid battery charger: 13.8V(Float Voltage), 14.6V(Top Voltage)
24V Lead acid battery charger: 27.6V(Float Voltage), 29.2V (Top Voltage)
36V Lead acid battery charger: 41.4V(Float Voltage), 43.8V (Top Voltage)
48V Lead acid battery charger: 55.2V(Float Voltage), 58.4V (Top Voltage)
Cable length: 1~1.5 M

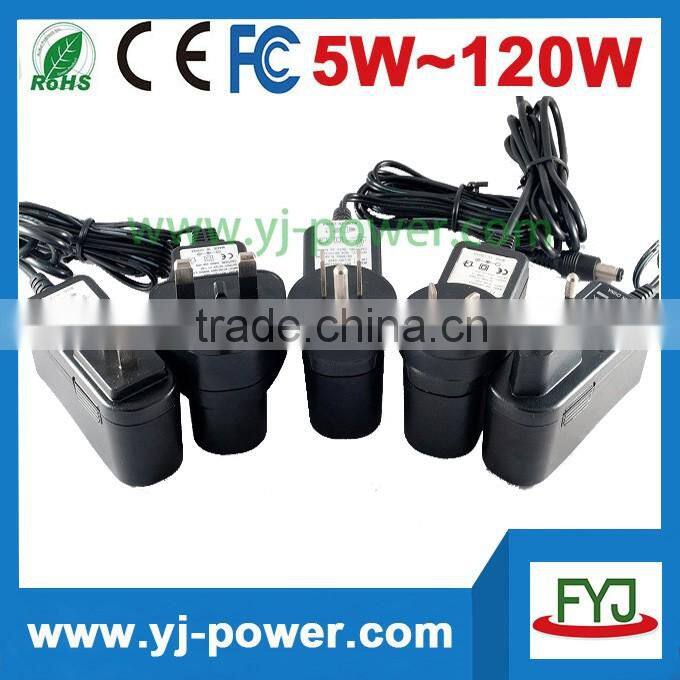

Plug type: EU plug or US plug or AU plug or UK plug or Japanese plug or Korea plug for choice,so charging Cable will suitable your country.

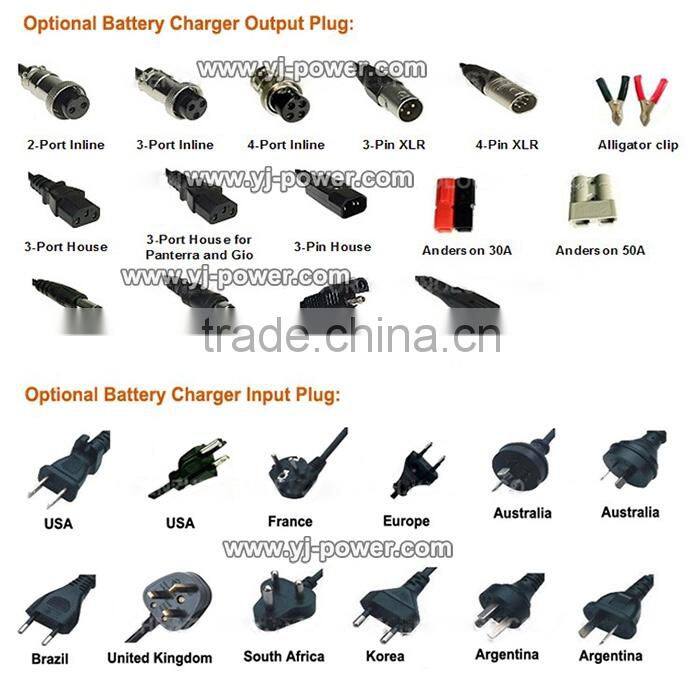

Output Connector: Alligator Clips, DC Jack, SAE, XLR, Aviation Plugs, Hoursing connector, JST
Charging Mode: CC—CV—Float Mode (Constant Current—Constant Voltage —Float Charging)
LED Display: Red—In charging state, Green—Full Charged,Cut-off Current: 10-15% of Charge current
Efficiency:>=85%
Safety Protection: Short-circuit Protection,
Over-current protection,
Over-voltage protection,
Over-load protection,
Polarity Reverse protection,
Operation And Storage Condition
♦ Operation Temperature: -20°C to 40°C
♦ Operation Humidity: 20% to 90% R.H
♦ Storage Temperature: -20°C to 75°C
♦ Storage Humidity: 1% to 90% R.H.
♦ MBFT: > 50,000Hours
Application
♦ Electric vehicle, Ebike, Electric Scooter, Mortor, Golf car, car jumper etc.
♦ Solar Systems, Access control, alarm, Mobile speaker, Home Application,UPS, Loadometer, magnetic lock etc.
♦ LED Torch, headlight, Portable power bank,etc.
♦ Electronic scale, emergency lamp, barn lantern, lawn lamp, Mosquito beat, flashlight,toy, Baby car, Child Motorcycle, emergency lamp, Camping lamp, etc
Certificate Approval: FCC, CE, CE-EMC,CE-LVD, ROHS
