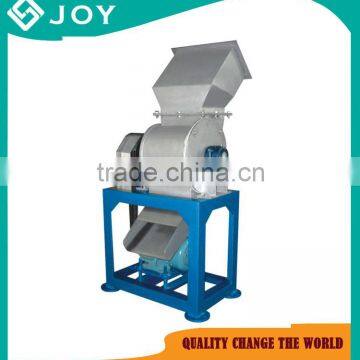

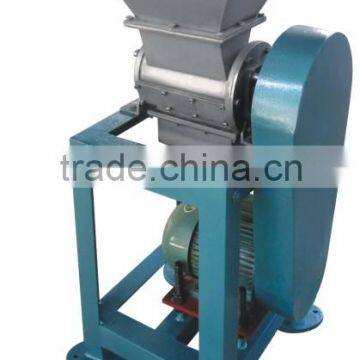

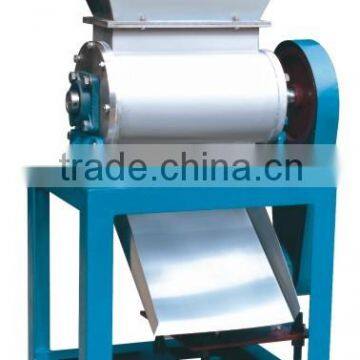

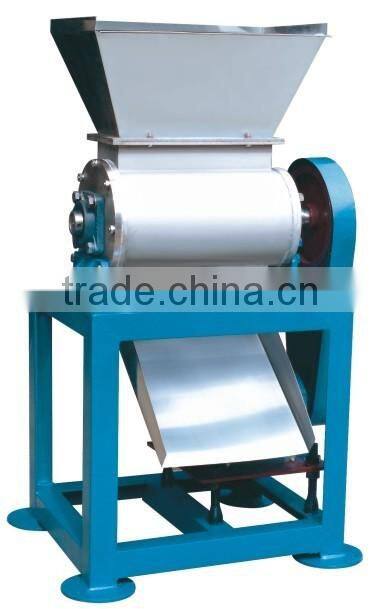

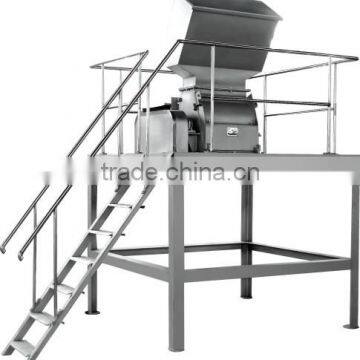

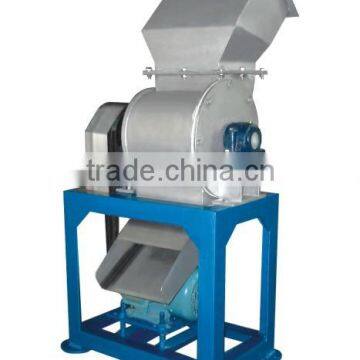

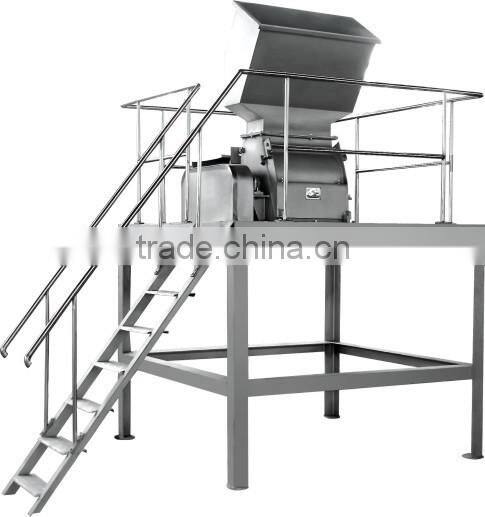

Hammer Type Crusher for Fruit and Vegetable

The machine is mainly used to crush fruit and vegetable. It consists of side cover, flying blade, sieve, machine body and spindle etc. Parts.

The whole machine is composed of material feeding hopper, side cover, machine body, spindle, bearing seat, motor, machine frame and material discharging hopper etc.

During the operation, the motor will drive the spindle at a constant speed to rotate through a pair of pulleys. The spindle is installed with flying blade for high speed rotation. The materials drop into the material feeding hopper through the lifter and are crushed by the flying blade rotating at high speed. Due to the function of centrifugal force, the materials will drop into the storage tank from the sieve with waist-shaped holes, and then will be transferred to the next procedure by the delivery pump.

The advantage of hammer type crushing machine is the granularity of the crushed materials is even and the size depends on the sieve with waist-shaped holes.

1. Production line for one-year warranty (except for man-made damage);

2. Installation and commission service;

3. Regular routine service checks;

4. Adequate inventory of spare parts;

5.  After sales service supported by a wide network of experienced servicepersonnel.

After-sales service hotline: 021-57598035/57598036
