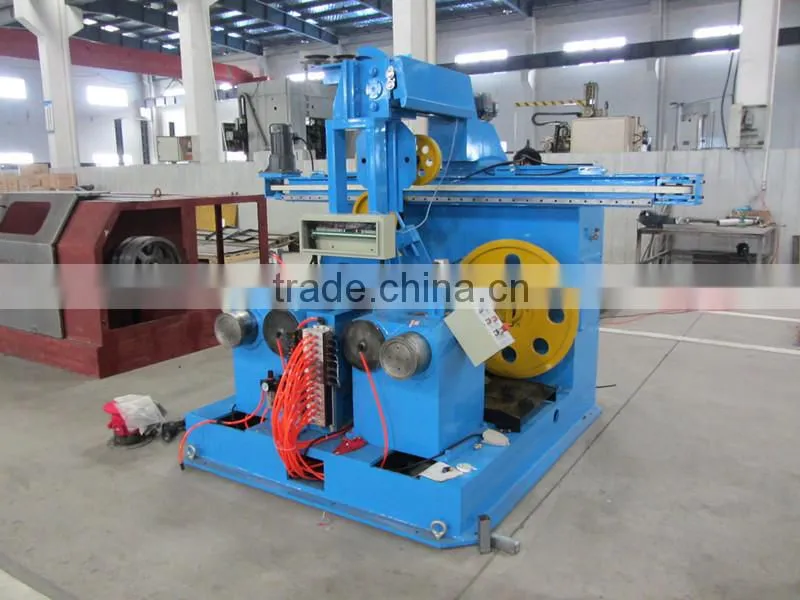

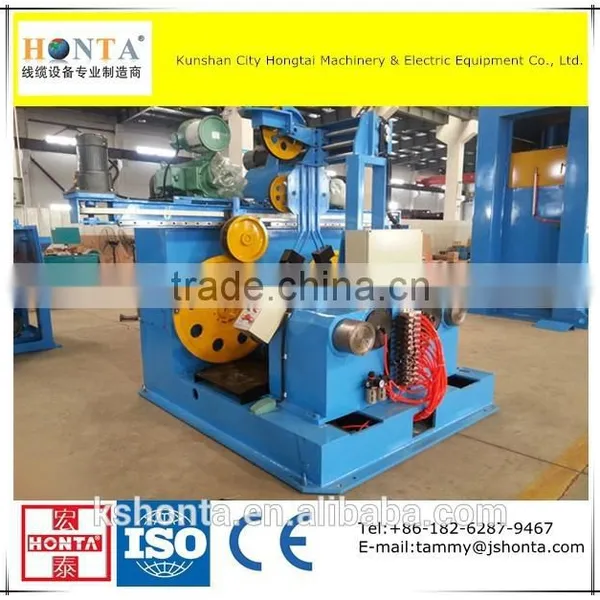

( Take-up Machine )HONTA 630S Dual Dynamic Spoolers
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT- 630S
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
( Copper Making Equipment ), Wire Basket Coiler MachineryNegotiableMOQ: 1 Set -
( Copper Electrolytic Take up Machinery ), Vertical Wire CoilerNegotiableMOQ: 1 Set
-
Hydraulic Spooling Wire MachineNegotiableMOQ: 1 Set
-
HT-630P Automatic Dual SpoolerNegotiableMOQ: 1 Set
-
Automatic Change Over Spooler MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT- 630S
Usage
Other, Receiving wires
Product Description
SPECIFICATION OF 630P DOUBLE DYAMIC SPOOLERS
HT-630S Pneumatic double take-up:
1. Bobbin: 500 and 630mm
2. Wire: copper or aluminum
3. Speed: Max1800m/min
4. MOQ:1 set
MAIN TECHNICAL DATA OF 630P DOUBLE DYNAMIC SPOOLERS
| Machine model | HT-630SP Double Dynamic Spoolers | |||||
| Drawing line speed | Max1800m/min | |||||
| Take-up wire diameter (mm) | 1.3-5.0 | |||||
| Take-up motor (mm) | DC30KW*2 | |||||
| Traversing limit motor (KW) | 0.75 | |||||
| Max spooler | 630mm | |||||
| Min spooler | 280mm | |||||
| Max width | 475mm | |||||
| Max weight | 500kg | |||||
| Min hole | 56mm | |||||
| Brake | Pneumatic control | |||||
| Chargging | Button control/Two-pintle hydraulic structure | |||||
| Power | 3*380V 50/60Hz | |||||
| Machine size | 4050mm*3400mm*2700mm | |||||

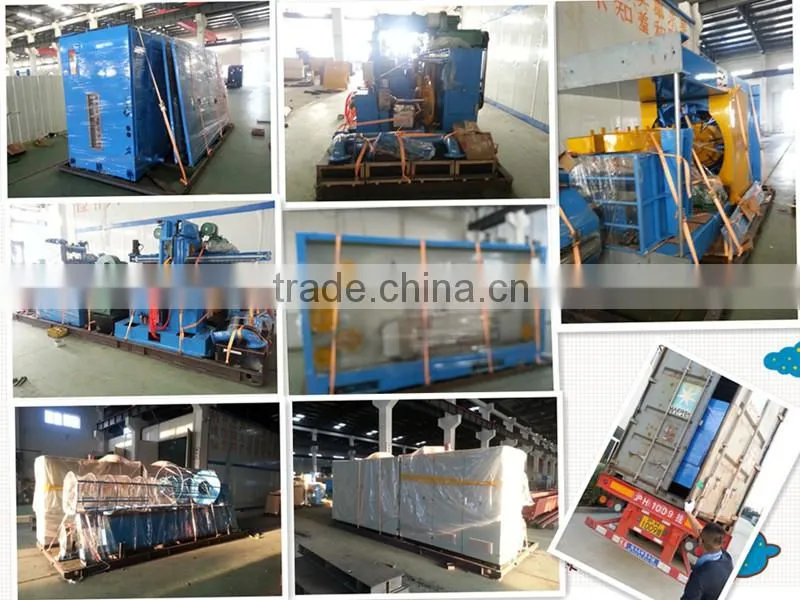

Packaging & Shipping
