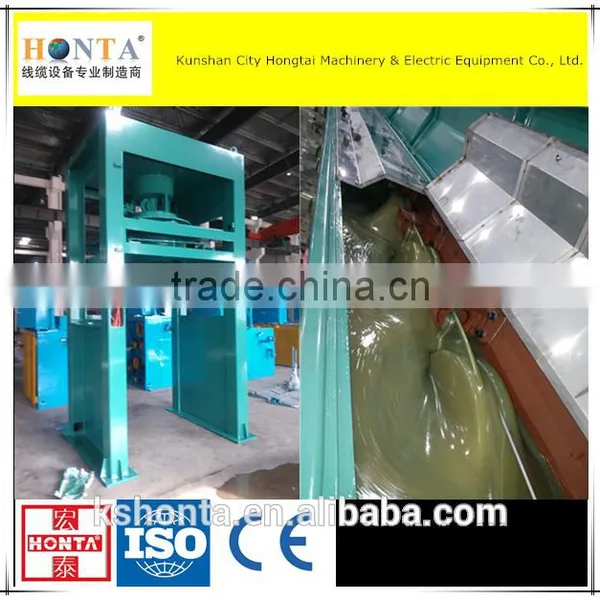

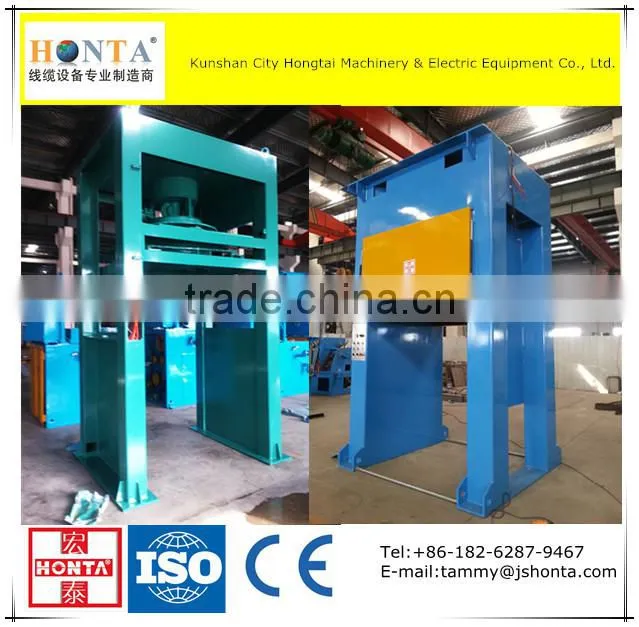

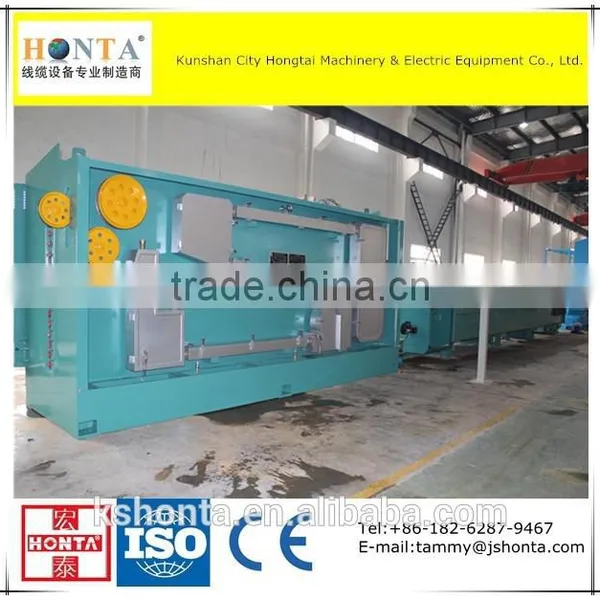

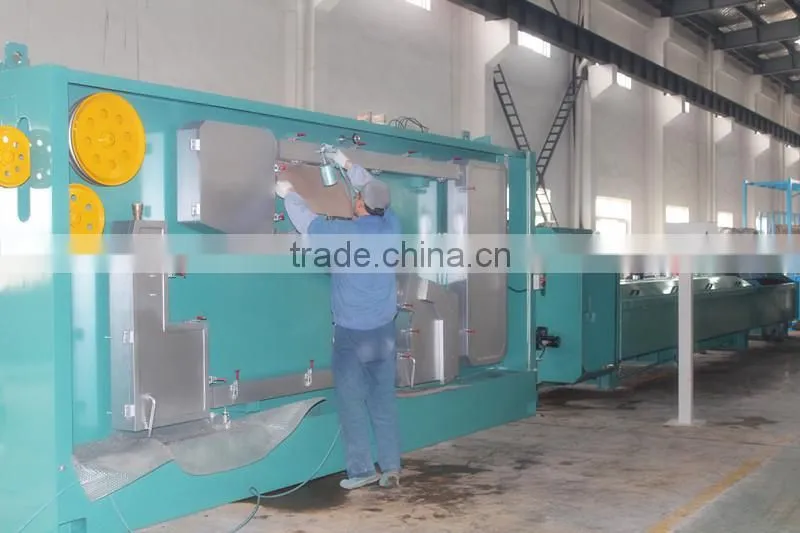

DESCRIBITION OF ALUMINUM ROD BREAKDOWN MACHINE WITH ANNEALER
Rod break down machine
1. Quick die change design;
2. inlet: 8mm Cu/9.5mm Al
3. Outlet: 1.2mm-3.5mm;
4. Speed: Max.25m/s
Technical Data of Rod Breakdown Machine for Aluminum |
|
|||||
Machine model |
HT- 450-13D |
HT- 450-11D |
HT-450-9D |
|||
Drawing Line Speed (mpm/min) |
1500 mpm/min |
1200mpm/min |
1000mpm/min |
|||
Drawing Dies NO./Max |
13 |
11 |
9 |
|||
Wire Inlet Dia.(mm) |
9.5 |
9.5 |
9.5 |
|||
Wire Outlet Dia.(mm) |
1.7-4.8 |
2.0-4.8 |
2.2-4.8 |
|||
The fast Die Change System |
The function of dies fast changed. Establish the production specification or selecting the NO. Of dies. The computer calculates automatically. After setting the transmission coefficient, the machine fetches automatically |
|||||
Control System |
human-machine interface + PLC control |
|||||
All alarm and parameter can be controlled and displayed on the touch screen.digital control for motor are available for computer operation. | ||||||
Motor Control |
DC motor control |
|||||
Transmission Type |
by precision ground helical gears |
|||||
Slip Ratio of M/C |
1.238 |
1.238 |
1.238 |
|||
Capstan |
multi-step type replaceable and tungsten carbide coated on the capstan |
|||||
Capstan Dia.(mm) |
450 |
450 |
450 |
|||

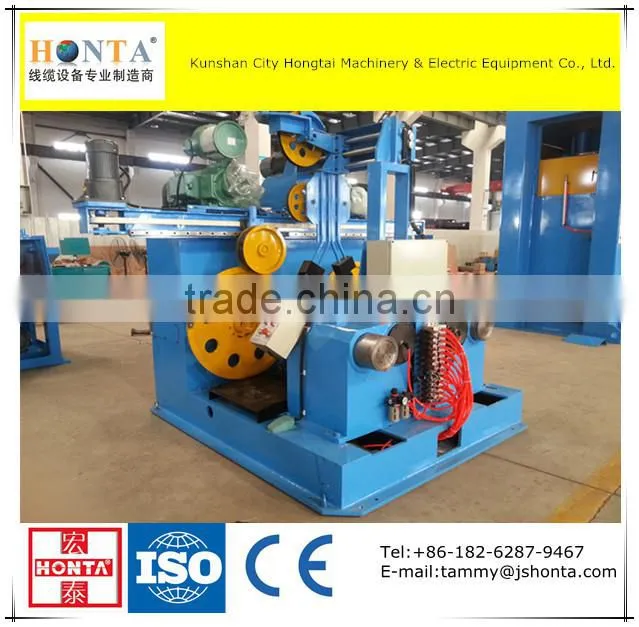

Take-up Type |
dual bobbin auto-spooler 500-630mm/Max |
|||||
Main Motor |
DC280KW(315KW) |
DC250KW(280KW) |
DC250KW |
|||
Capstan Motor |
DC75KW |
DC75KW |
DC75KW |
|||
Take-up Motor |
Double take up DC30KW X 2 |
|||||
Lubrication Type |
bath lubrication |
|||||
Lubrication Type for Bearing |
by enforced oil pump |
|||||
Power |
3 X380V 50/60Hz |
|||||
Machine Size |
23620mm×4500mm×4400mm |
21620mm×4500mm×4400mm |
18620mm×4500mm×4400mm |
|||
|
|
|
|
|

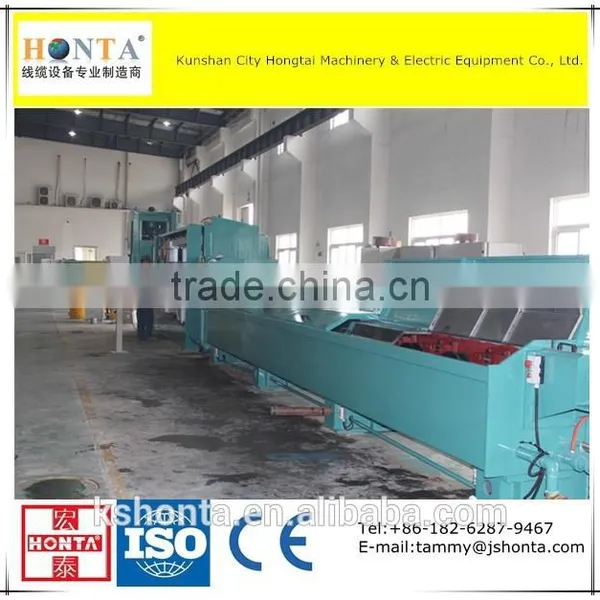

Copper/Aluminum Rod Breakdown Machine with Annealer |

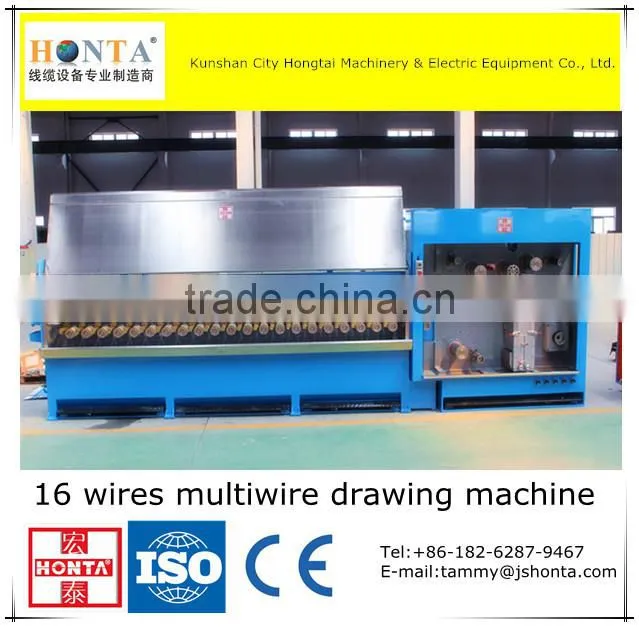

16 wires-Multiwire Drawing Machine |
8 Wires-Multiwire Drawing Machine |
4 Wires-Multiwire Drawing Machine |
Medium/Intermadiate Wire Drawing Machine |
|
|
|
|
|
Fine Wire Drawing Machine |
Double Twisting Bunching Machine |
Down Coilers |
Double Spooler |

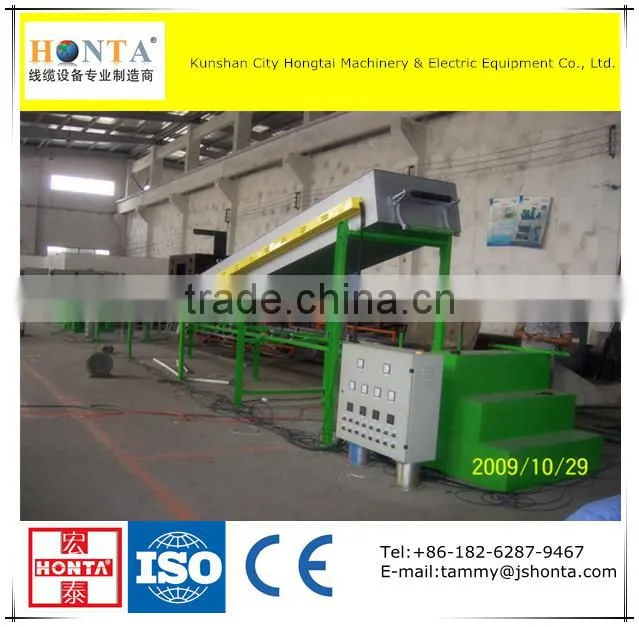

Annealing & Tinning Machine |
CE Certification
Packing
