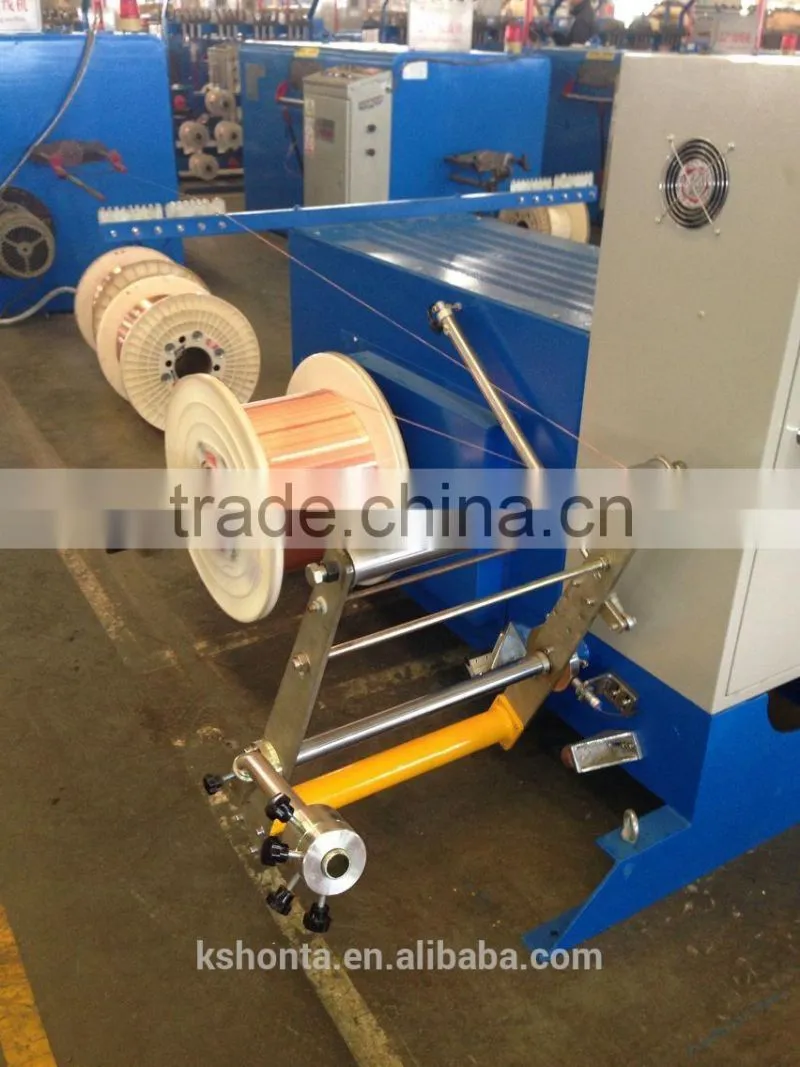

[Main Product] HONTA Motorized Active Pay-Off StandsUS$ 1 - 5,000MOQ: 1 Set
Features:
compact sturcture;automated operation;bobbin loading and unloading are controlled by air.
Bobbin clamping and locking :shaftless type with clapming cones or screw locking type with a shaft.
Wire tension is controlled by a precision cylinder ;it can adjust rotate speed of the bobbin automatically,so it can achieve the requirements constant pay-off tension.
Technical Specification:
Applicable bobbins : DIN630
Applicable wire diameter : 0.32-0.8mm
Inverter : AC 2.2 kw; Danfoss
Max. speed : 300m/min
Bobbins loading and unloading : pneumatic type
Traverse : follow the wires on bobbins;
Tension control : by air cylinder automatically;
Transmission part : the main dive motor with speed reducer.
Machine frame: made of steel plate (Q235A) by welding, through annealing to eliminate
internal stress and then processed by precision milling machine.
Power supply:
1. 3-phase voltage ~3×380VAC (±10%)
2. Single-phase voltage ~230VAC (±10%)
3. Frequency 50Hz (±2%)

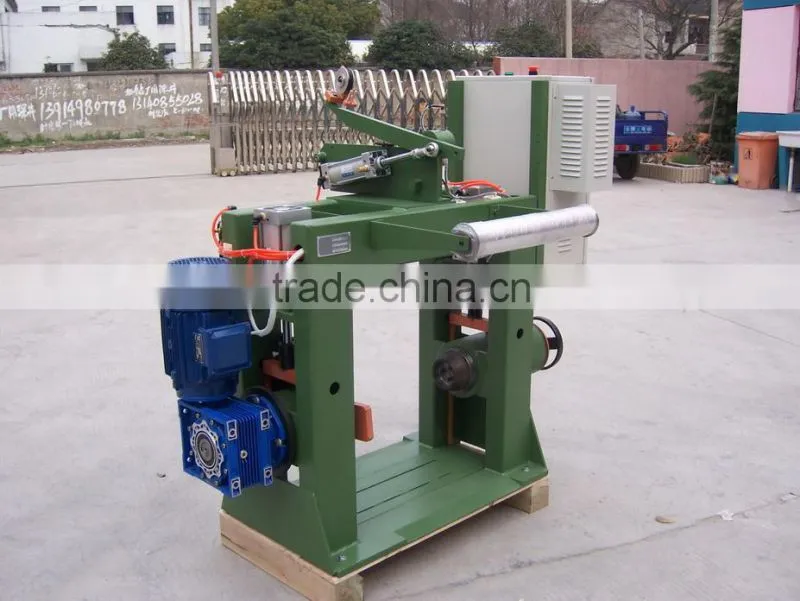

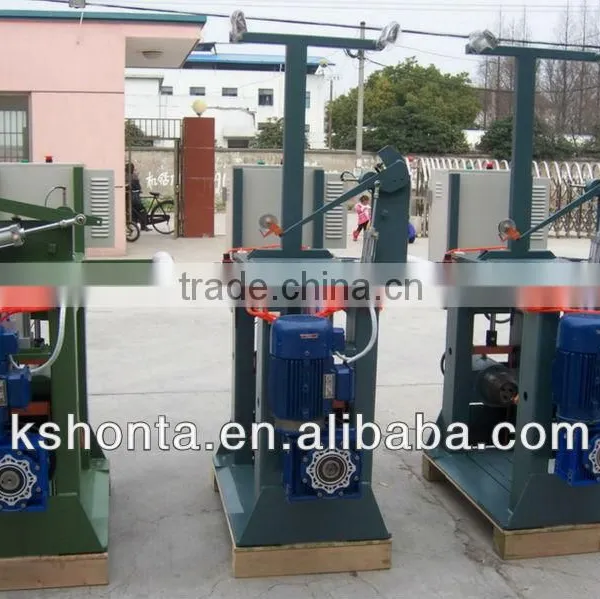

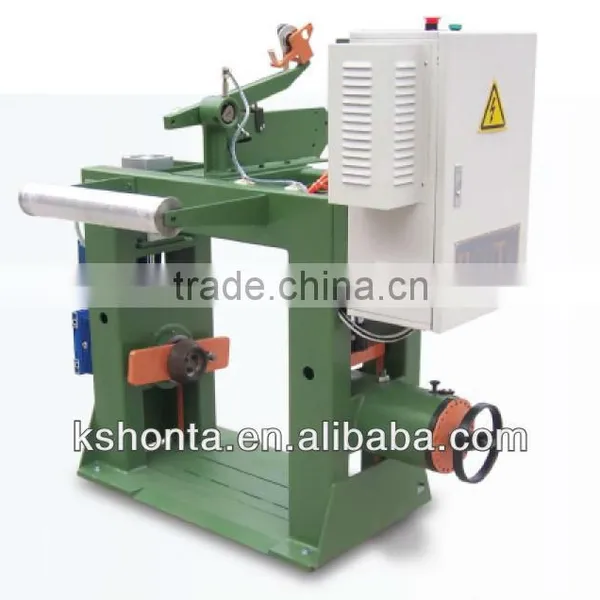

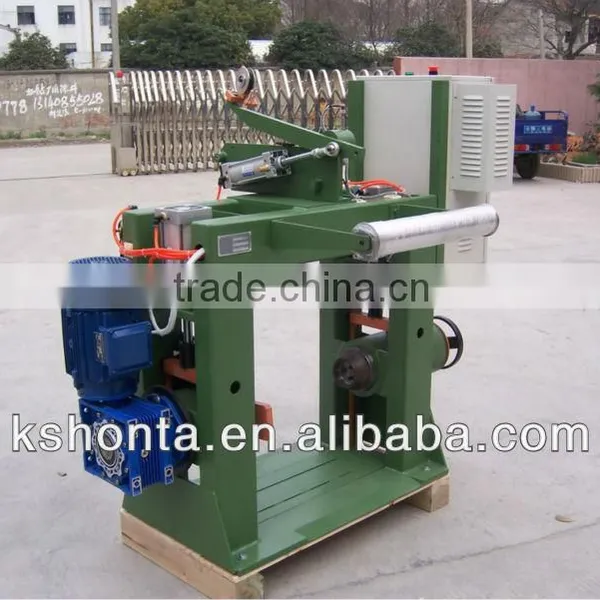

Pay -off Unit:
Our factory show:
CE for multi wire drawing machine:
Exhibition is shanghai city:
Commissioning wire drawing machine in Turkey :
Our customers come from different countries around the world.
|
|
|
|
Multi wire drawing machine with annealer(4/8/10/16/24wires) |
8mm Rod breakdown wire drawing machine with annealer(1/2wires) |
9.5mm Aluminum Rod breakdown wire drawing machine with online annealer |
Electrolytic Tin-plating Machine(3000Sn/6000Sn/10000Sn) |
|
|
|
|
Multi wire draiwng machine with annealer(4/8/10/16/24) |

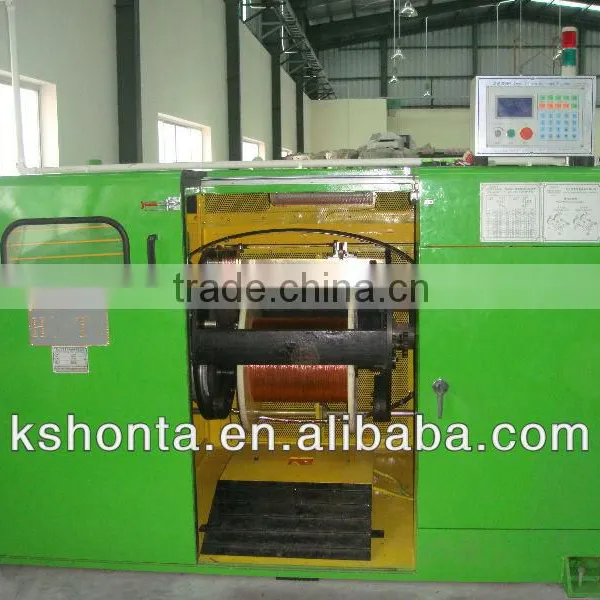

All kind of double twisting buching machine |
Extrusion machine |
Steel bobbin |
