The Features of Hybrid Supercapacitor Storage Battery for E-bicycles
1. Capacitance:8Ah,10Ah,12Ah,15Ah,20Ah,40Ah,60Ah,100Ah, cells for different EV
2. More than 3000times cycle life
3. Advanced design for deep cycle application
4. Fast charging
5. 5C discharge current
The difference between our batter(Hybrid Supercapacitor Storage Battery) and the tradional Li-ion battery:
1. Small weight and size
2. Fast charging,It can be charged 90% in 30 mins.
| Model | HPM480200P |
| Nominal Voltage | 48V |
| Rated Capicaty | 20Ah |
| Voltage Range | 40-57.6V |
| Max Charge Current | 40A |
| Max Discharge Current | 200A |
| Charging time | Fast: 30mins |
| Normal: 2hrs | |
| Package weight | about 10kgs |
| Cycle life | more than 3000times |
| Working tempturature | 20°C~+60°C |
| Certificates | CE,UL,ISO |

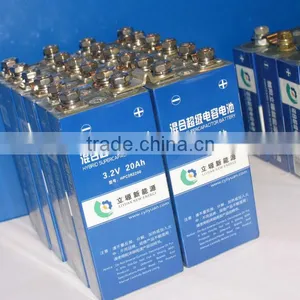

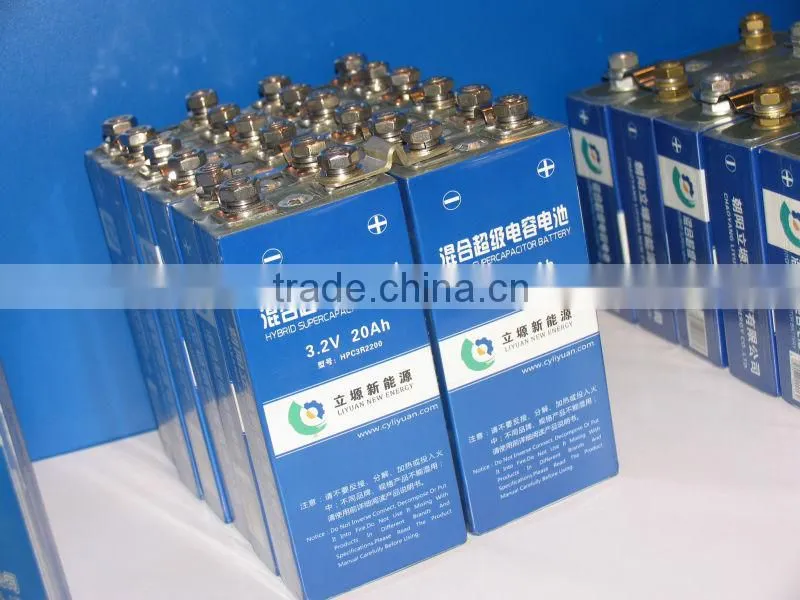

3.2V Battery cells specification
Model |
Rated voltage (V) |
Rated capacity (Ah) |
Charge times (h) |
Working temerature°C |
Max discharge current (A) |
Internal resistance (mΩ) |
Size W×L×H (mm) |
Weight (g) |
|
Fast |
Normal |
||||||||
HPC3R2100 |
3.2 |
10 |
0.5 |
2 |
-20~60 |
15C |
~6 |
27×70×88 |
360 |
HPC3R2120 |
3.2 |
12 |
0.5 |
2 |
-20~60 |
15C |
~5 |
27×70×120 |
420 |
HPC3R2150 |
3.2 |
15 |
0.5 |
2 |
-20~60 |
28C |
~4.5 |
27×70×150 |
540 |
HPC3R2200 |
3.2 |
20 |
0.5 |
2 |
-20~60 |
28C |
~4 |
27×70×150 |
580 |
HPC3R2400 |
3.2 |
40 |
0.5 |
2 |
-20~60 |
30C |
~1.2 |
36×130×150 |
1200 |
HPC3R2450 |
3.2 |
45 |
0.5 |
2 |
-20~60 |
30C |
~1.2 |
36×130×150 |
1300 |
HPC3R2600 |
3.2 |
60 |
0.5 |
2 |
-20~60 |
20C |
~1 |
36×130×185 |
1700 |
HPC3R2101 |
3.2 |
100 |
0.5 |
2 |
-20~60 |
15C |
~0.9 |
66×170×240 |
2510 |
