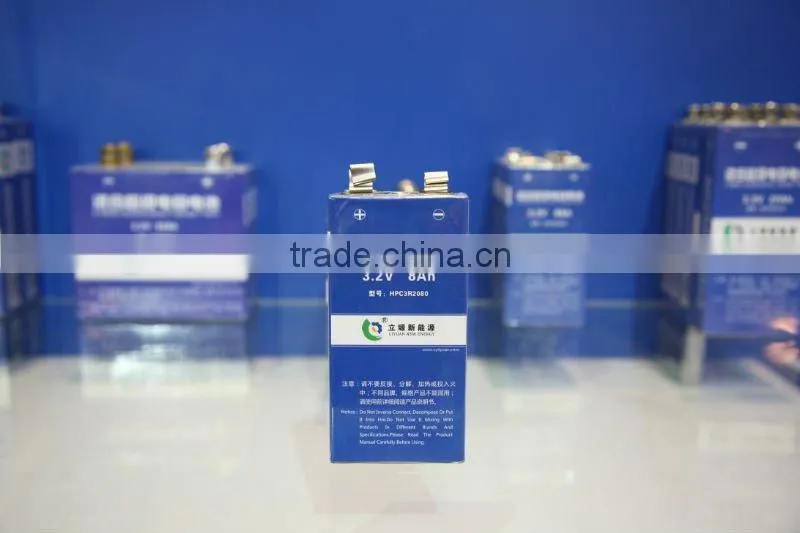

Help Center36V 8Ah Lithium Ion Battery Pack
Related Products
-
36v Li-ion Battery Pack With 3000cycles 36v 8ah Li-ion Battery PackUS$ 150 - 5,000MOQ: 1 Pack -
High Quality LiFePO4 Battery PackUS$ 5,000 - 20,000MOQ: 1 Pack
-
Electric Vehicle Battery PacksUS$ 18,000 - 30,000MOQ: 1 Piece
-
Rechargeable e Battery PackUS$ 600 - 1,000MOQ: 10 Packs
-
Prismatic Lithium-ion BatteryUS$ 100 - 120MOQ: 1 Piece
The Features of Hybrid Supercapacitor Storage Battery for E-bicycles
1. Advanced design for deep cycle application
2. More than 3000times cycle life
3. High quality-to-cost rates.
4. Low self-discharge,Less than 3% per month
5. Fast charging,It can be charged in 30 mins.
6. Operating Temprature:-20-+60 °C
7. Environmental
The difference between our batter(Hybrid Supercapacitor Storage Battery) and the tradional Li-ion battery:
1. Small weight and size
2. Fast charging,It can be charged 90% in 30 mins and discharge at 5C current
3. Long cycle life,more than 2000times cycle use
4. It can me used in different environment,-20-+60°C
| Model | Rated voltage | Rated capacity | Charge times (h) | Working temerature°C | Max discharge current (A) | Internal resistance (mΩ) | Size W×L×H | Weight | |
| (V) | (Ah) | Fast | Normal | (mm) | (g) | ||||
| HPC3R2100 | 3.2 | 8 | 0.5 | 2 | -20~60 | 15C | ~6 | 16×61×120 | 250 |
| HPC3R2120 | 3.2 | 10 | 0.5 | 2 | -20~60 | 15C | ~5 | 27×70×88 | 360 |
| HPC3R2150 | 3.2 | 15 | 0.5 | 2 | -20~60 | 28C | ~4.5 | 27×70×150 | 540 |
| HPC3R2200 | 3.2 | 20 | 0.5 | 2 | -20~60 | 28C | ~4 | 27×70×150 | 580 |
| HPC3R2400 | 3.2 | 40 | 0.5 | 2 | -20~60 | 30C | ~1.2 | 36×130×150 | 1200 |
| HPC3R2450 | 3.2 | 45 | 0.5 | 2 | -20~60 | 30C | ~1.2 | 36×130×150 | 1300 |
| HPC3R2600 | 3.2 | 60 | 0.5 | 2 | -20~60 | 20C | ~1 | 36×130×185 | 1700 |
| HPC3R2101 | 3.2 | 100 | 0.5 | 2 | -20~60 | 15C | ~0.9 | 66×170×240 | 2510 |
Test methods
| Deviation of capacity | 0~4% |
| Cycle life | ≥2000times,test condition:18~25°C,0.3Ccharge,1discharge,Voltage: 2.7V~3.6V, to 80% of nominal capacity. |
| Temperature characteristic | +55°C C/C ≤1%,ESR≤ESR 0 |
| -20°C C/C ≤30%,ESR≤2ESR 0 | |
| Heat characteristic (durability) | 168h,+55°C±2,Rated voltage,C/C ≤10%,ESR≤2ESR 0 |
| High-temperature properties of opeed | 168h,+55°C±2,C/C≤20%,ESR≤4ESR 0 |
| Steady-state of moist heat | +40°C±2,90~95%RH,240h,C/C≤20%,ESR≤4ESR 0 |
Hybrid Super-capacitor battery combined high power rate features of Super-capacitor and high energy rate features of Lithium Ion Batteries; it belongs to high-performance storage battery, and characterized by large capacity, high power, long working life, safety, environmental protection and so on. What’s more, there are very broad practical prospects for replacement of chemical cell in the fields of Pure Electric Vehicles, Hybrid Electric Vehicles, Electric Bicycles, and other large-scale energy storage device or system.
