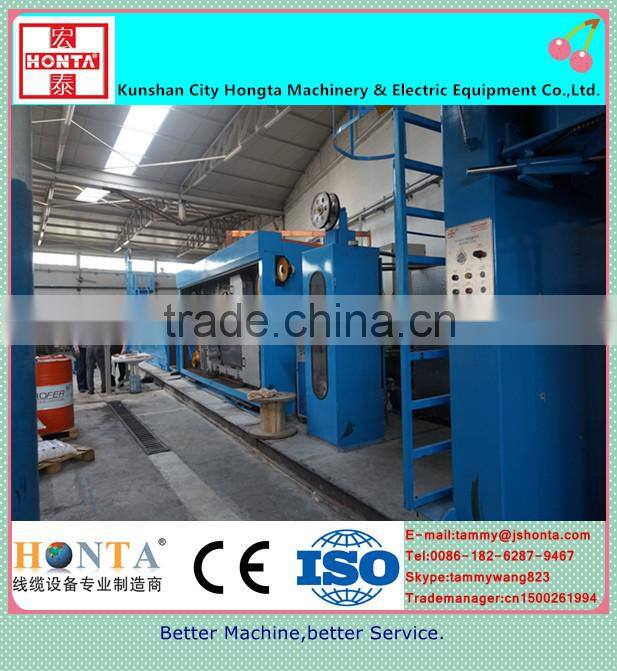

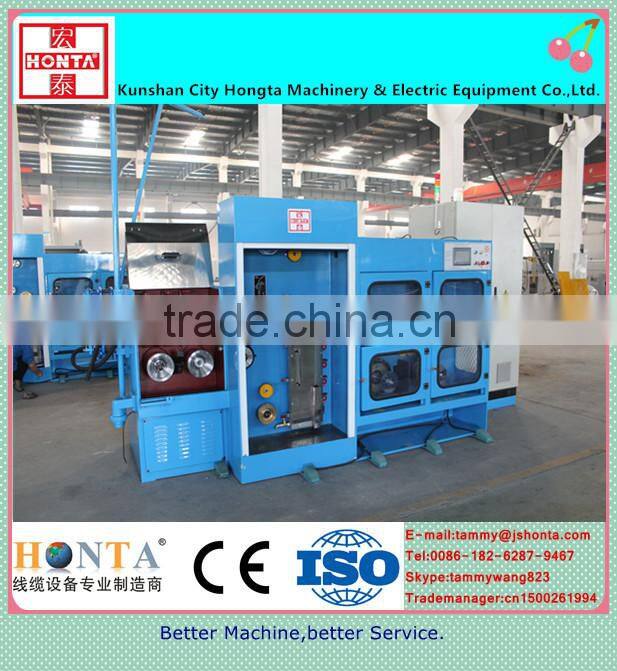

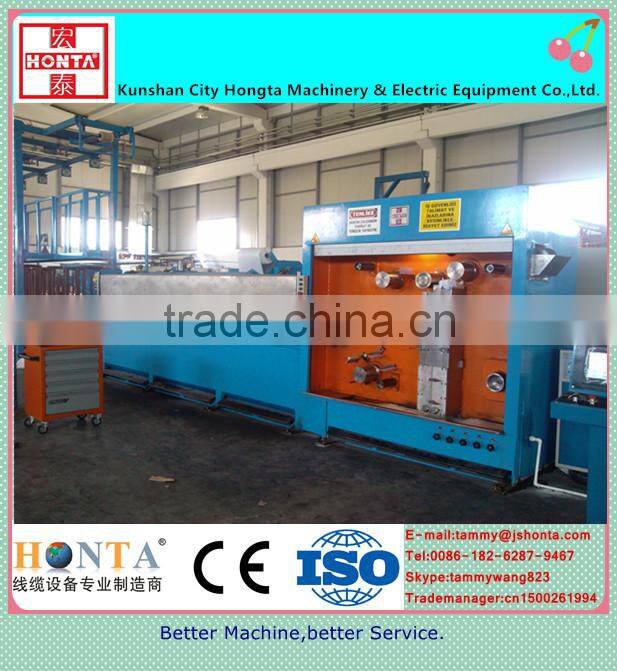

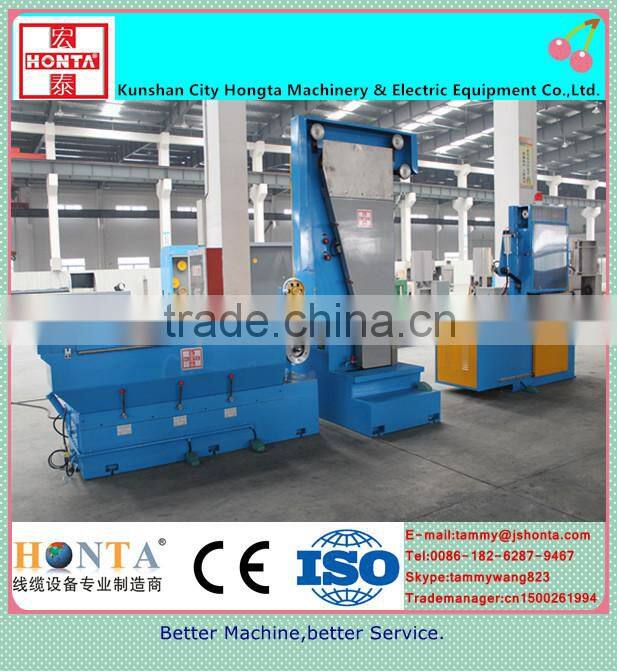

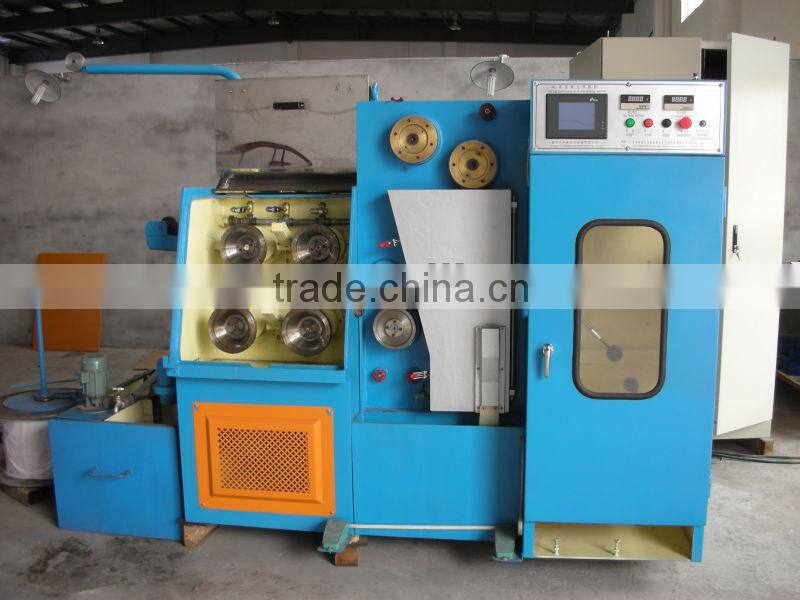

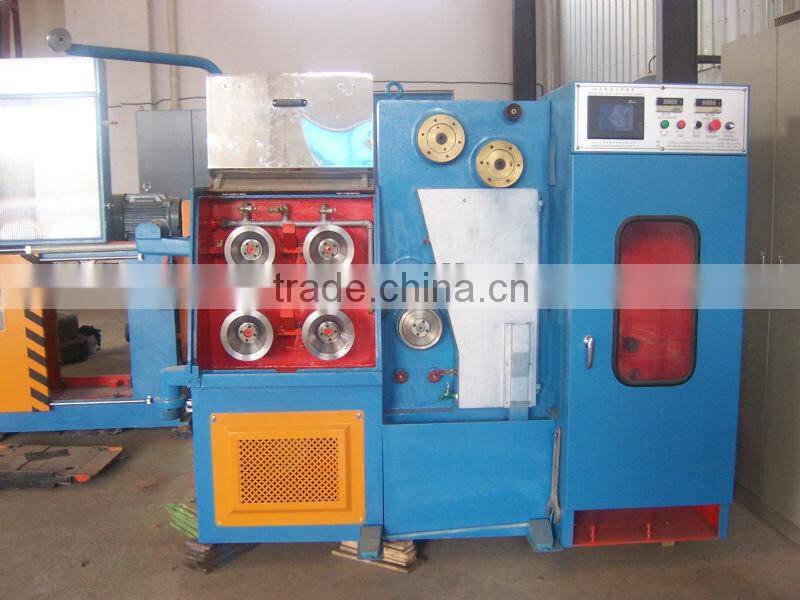

Single Head Cable Making Equipment Fine Wire Drawing Machine With Continuous Annealer
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-24DT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set -
The Stable Performance Fine Wire Drawing Machine With Online Annealing/SuZhou/HontaNegotiableMOQ: 1 Set
-
High Speed Fine Wire Drawing MachineNegotiableMOQ: 1 Set
-
Iron Wire Drawing Machine(manufacturer)NegotiableMOQ: 1 Set
-
( High Speed Fine Wire Drawing Machine ) Electric Wire Cable Making MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-24DT
Usage
Drawing
Product Description
SPECIFICATION OF SINGLE HEAD FINE WIRE DRAWING MACHINE WITH ONLINE ANNEALER
Items |
Specifacation |
| Model No. | HT-24D |
| materials | Cu, Tinned copper |
| Max line speed | 30.0m/s |
| Inlet Diameter | 0.50~1.00mm |
| Outlet range | 0.08~0.25mm |
| Number of dies | Max 24 |
| Capstan diameter | 159mm |
| Max Annealing current | 250A |
| Max Annealing power | 15kw |
| Power of steam generator | 9 |
| Bobbin standard size | 300 |
| Main capacity | 32KVA |
| Machine dimensions | 2200*1600*1800mm |
