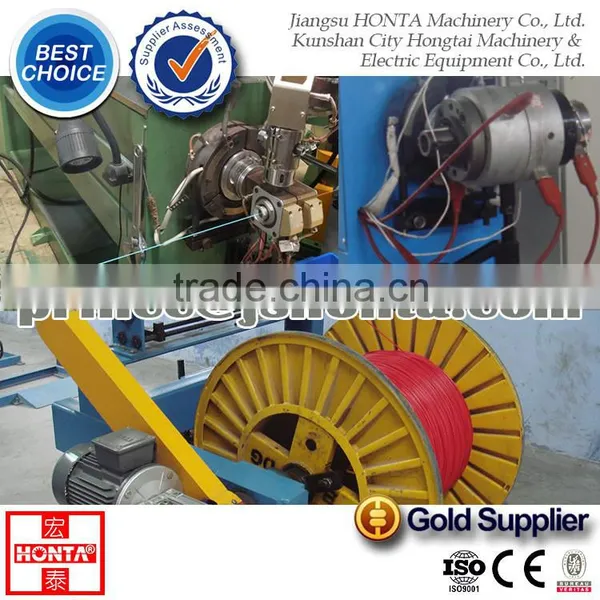

Pvc Extrusion Machine Plastic Coating Equipment for Electric Cable Wire Production

Extrusion for PVC insulation and jacked electric wire.

90mm extruder

1)motor:75kW AC motor.

2)gear box:type ZLYJ200-Ⅱ

3)screw:38CrMoAlA,φ90mm,L/D=25:1.

4) barrel:38CrMoAlA.

5)Rotation speed: 10-90rpm.

6)output:280kg/h for PVC without crosshead

7)heater:voltage:220V,5 zones, heating by molten Al heater ,5kW per zones

8)Clamp: three pieces.

9)cooling:5 set fans for the barrel,power:370W .natural cooling

10) total power:75+5*5+12*0.15+5*0.37=108.65kW.

11) out size:(L)3400*(W)2000*(H)2650mm.

50 sub- extruder

1) motor:11kW AC motor.

2) gear box:Grinding gear drive(The imitation of Italy type) ZLYJ133-II

3) screw:38CrMoAlA, φ50mm, L/D=25:1.

4) barrel:38CrMoAlA.

5) Rotation speed:10-110r/min.

6) output: 65kg/h(for pvc without crosshead).

7) heat:voltage:220V, 3 zones of barrel heated by Cast aluminum heater, 3kW for each zones. First zone of clamp is heated by stainless steel heating rob, heating power:9*120W.

8) Clamp: 3 pieces.

9) cooling type:three Barrel cooling high pressure centrifugal fans with 180W power

10) Clamps: natural cooling .

11) total power:15+3*3+9*0.12+3*0.18=25.54kW.

12) size:(length)2200*(width)1500*(height)2500.

13) weight:900kg.

14) spares:a set of clamp stainless steel heating rob, 2 thermocouples.

15) Moving on the linear guider by manual, and electric up and down.

Power Supply

• 3-phase voltage ~3×380VAC (±10%)
• Single-phase voltage ~220VAC (±10%)
• Frequency 50Hz (±2%)

Note: Power supply is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.
