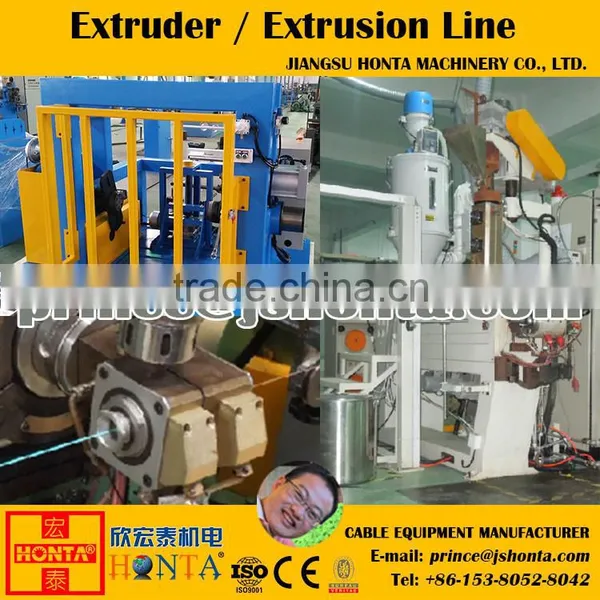

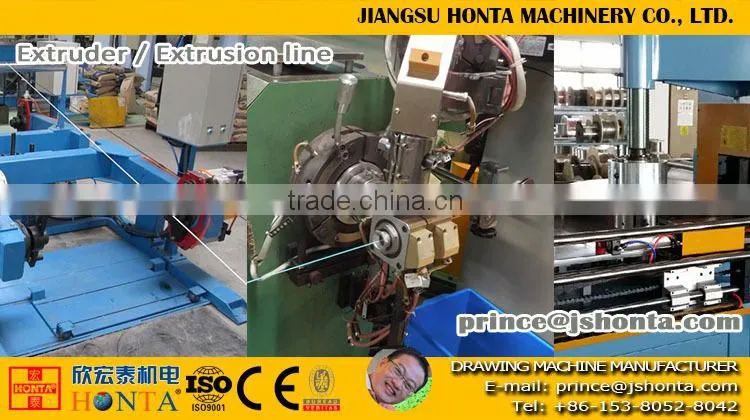

Extruding usage PVC coating production line for insulation electric wire.
70mm extruder
1) motor: 30kW AC motor;
2) gear box type: ZLYJ200-Ⅱ;
3) screw : 38CrMoAlA,φ70mm, L/D:25: 1;
4) barral: 38CrMoAlA;
5) rotation speed:10-110rmin;
6) output:140kg/h (open crosshead, PVC);
7) heater: voltage:220V,4 zones, casting aluminium heater, 4.5KW per zones, one zone for half.
8) Clamp type: three pieces;
9) cooling: 4 zones, 370w;
10) total power: 30+4*4.5+9*0.11+4*0.37=50.47kW;
11) outer size: (L) 2700 * (W) 1400 * (H) 2500;
spares: one set heater for clamp,3 set thermocouple.
35mm sub extruder
1)Type: vertical
2)Motor: AC 3.7 KW;
3)Screw: 38CrMoAlA,φ35mm,L/D=18: 1;
4)Barrel: 38CrMoAlA ;
5)rotation speed:6-60r/min;
6)heater: voltage:220V,three zones, casting aluminum, 1KW per zones
7)cooling:3 fans for barrel, 60W .
8)total power: 3.7+3*1+9*0.09+0.85+0.95+3*0.06=9.49kW;
Power Supply
- 3-phase voltage ~3×380VAC (±10%)
- Single-phase voltage ~220VAC (±10%)
- Frequency 50Hz (±2%)
Note: Power supply is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.

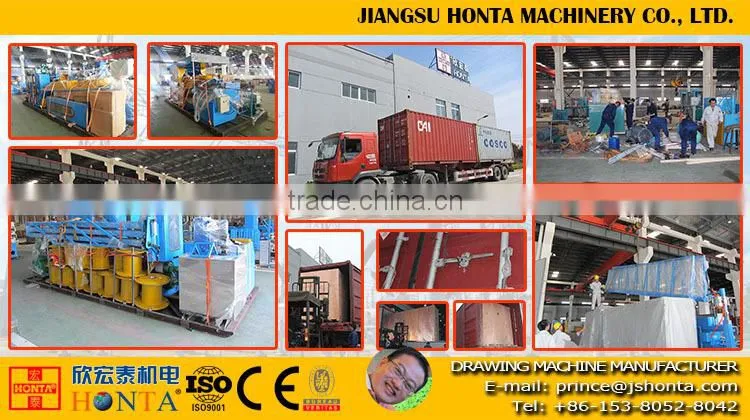

Our MACHINES or PRODUCTION LINES are well packed on steel pallets in containers, suitable for long distance ocean freight transportation and the change of climate, and well protected against moisture and shocks.
