Help CenterHigh-Quality Wire Electrolytic Plating Machine / Line ( Sn, Ag, Ni, Zn )
Related Products
-
Plating Line 6000ANegotiableMOQ: 1 Set -
Electrolytic Copper PlateNegotiableMOQ: 1 Set
-
Electrolytic Plating Machine Wire And Cable MachineNegotiableMOQ: 1 Set
-
High Efficiency Electroplating Equipment Tinned Copper Electroless Nickel PlatingUS$ 1.00 - 1.00MOQ: 1 Set
-
High Utilization Electrolytic Tinplate Machine Tinned Copper WireUS$ 1.00 - 1.00MOQ: 1 Set

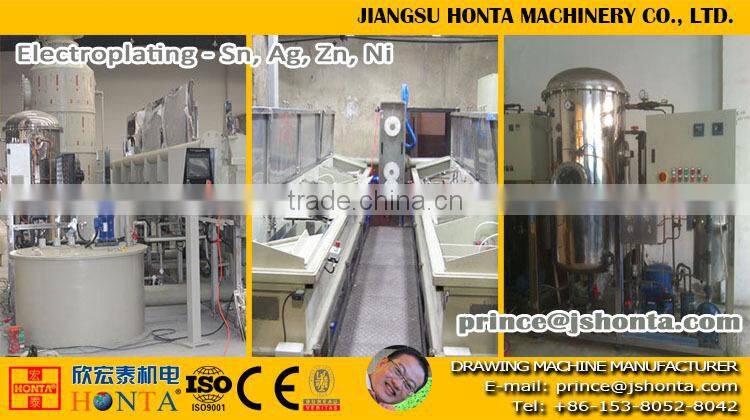

This series of wire electrolytic plating machines and production lines (Tin-plating, Nickle-plating, Zinc-plating, Silver-plating) are used to plating the Tin, Nickle, Zinc or Silver of thickness between 1 to 60 μm on copper wires of diameter between 0.80 to 2.60 mm. Other equipments, i.e. drawing machines, annealers, pay-offs and take-ups, are also available to compose a complete production line for coated wire cable production. For any special requirements, you may contact us directly for further confirmation.
- This line can be in tandem with a rod breakdown machine with annealer to produce tinned copper wires.
- This line has advantages of high production capacity, high quality and low power consumption.
- With strong controllability of tin thickness and uniformity.
- The utilization rate of tin can reach to 98%.
- Equipped with the most advanced online exhaust and waste water treatment system to ensure the water quality after treatment can meet international environmental standards, so that it can achieve zero discharge and zero pollution in production process.
- High degree of automaticity.
- All parameters setting are controlled via computer program.
- Easy operation. Save labor. Lower costs.
We have a series of wire electrolytic plating machines and production lines of this kind to satisfy your diversified demands. You can always find what you prefer:
DESCRIPTION |
WIRE ELECTROLYTIC PLATING LINES |
||||
HT MODEL NO. |
HT-10000Sn.15m/s |
HT-6000Sn.15m/s |
HT-5000Ni.5m/s |
HT-5000Zn.15m/s |
HT-3000Ag.10m/s |
MATERIAL |
Cu+Sn |
Cu+Sn |
Cu+Ni |
Cu, Cu alloy+Zn |
Cu+Ag |
MACHINE SPEED |
15m/s |
15m/s |
5m/s |
15m/s |
10m/s |
NO. OF WIRES |
1 |
1 |
1 |
1 |
1 |
WIRE RANGE |
1.20~2.60mm |
1.00~2.60mm |
0.80~2.60mm |
0.80~2.60mm |
0.90~2.60mm |
COATING THICKNESS |
1~25μm |
1~20μm |
1~60μm |
1~60μm |
1~20μm |
PLATING CURRENT |
10000A max. |
6000A max. |
5000A max. |
5000A max. |
3000A max. |
PAY-OFF TYPE |
in tandem with a drawing machine / bobbin type pay-off / basket type pay-off |
||||
TAKE-UP TYPE2 |
HT-650C Down coiler |
||||
LINE DIMENSION |
8000*6000*2600mm |
||||
Power Supply
- 3-phase voltage ~3×380VAC (±10%)
- Single-phase voltage ~220VAC (±10%)
- Frequency 50Hz (±2%)
Note: This is an important factor affecting price. If the power supply in your country or region is different from our system, please advise us in your inquiry.

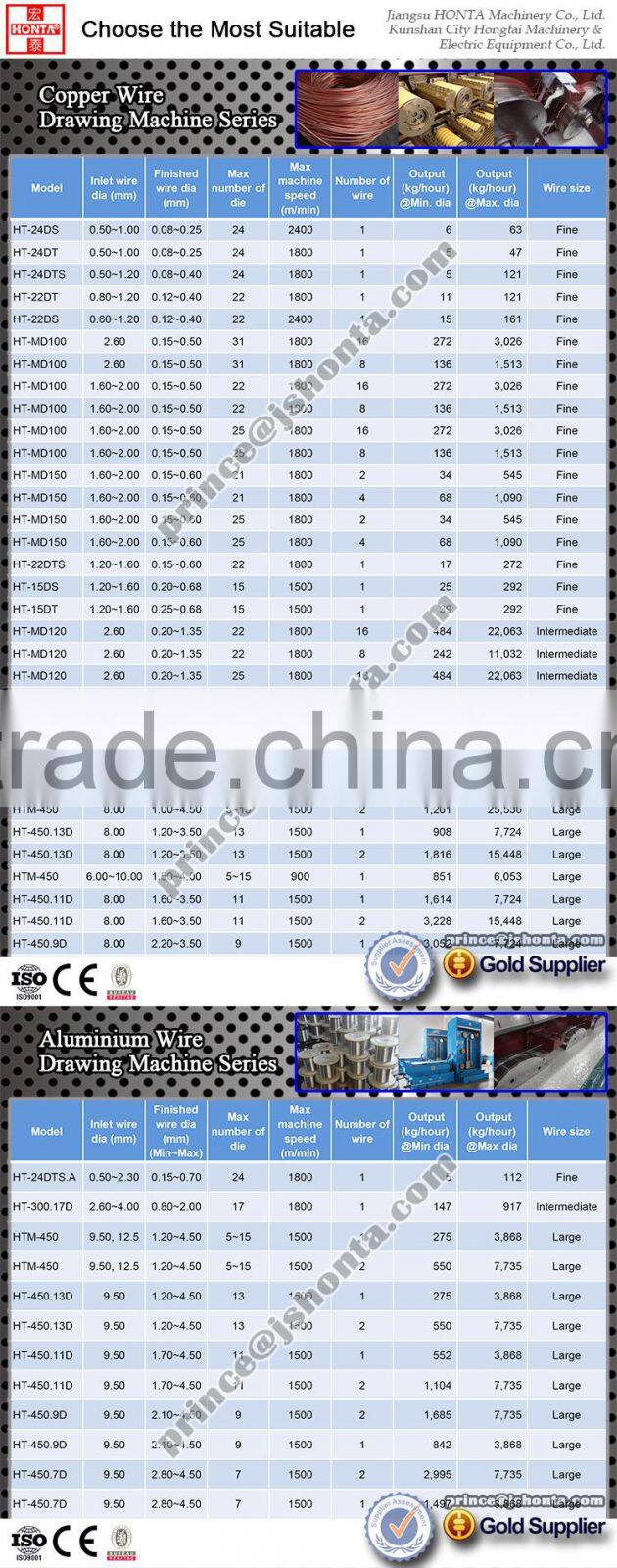

| Find More Wire Drawing Machines and Cable Making Equipment within Our Scope of Supply |
|
|
|
|
|
|
Multiwire Drawing Line Series Cu: Inlet: 1.60~2.60mm Outlet: 0.15~1.35mm Multiwire Drawing Lines *16-wire *8-wire *4-wire |
Rod Breakdown Line Series Cu: Inlet: 8.00mm Outlet: 1.20~3.50mm Copper Rod Breakdown Drawing Lines Al: Inlet: 9.50mm Outlet: 1.20~4.50mm Aluminum Rod Breakdown Drawing Lines Cu & Al: Inlet: 6.00~12.50mm Outlet: 1.00~4.50mm Individual Drive Rod Breakdown Drawing Lines
|
Intermediate Wire Drawing Line Series Cu: Inlet: 2.50~3.00mm Outlet: 0.40~1.60mm *Copper Intermediate Wire Drawing *Large-Medium Wire Drawing Al: Inlet: 2.60~4.00mm Otlet: 0.80~2.00mm *Aluminium Intermediate Wire Drawing Machine
|
Fine Wire Drawing Machine Series Cu: Inlet: 0.50~1.60mm Outlet: 0.08~0.68mm *Copper Fine Wire Drawing Machines *Fine Drawer With Annealer and Spooler *Fine Drawer With Automatic Spoolers Al: Inlet: 0.50~2.30mm Outlet: 0.15~0.70mm *Aluminum Fine Wire Drawing Machines |
Wire Coating Line Series Electroplating Lines *Sn-Tin *Ag-Silver *Ni-Nickle *Zn-Zinc Annealing & Tinning Lines |
|
|
|
|
|
|
Stranding & Bunching Series Twist Bunching Machines 500P, 630P, 800P 1000P, 1250P |
Extrusion Line Series Extrusion Lines *70/35 Extrusion Line *90/50 Extrusion Line |
Pay-Off Series Motorised Wire Pay-Off Stands
|
Take-Up Series Compact Spoolers Single Spoolers Dual Spoolers Basket Down Coilers |
Auxiliaries Cold Welders Powder Filters Threading & Pointing Machine Coil Packing Machines Spools, Bobbins, Reels
|
*
| Choose Desired Model at a Glance |
*
