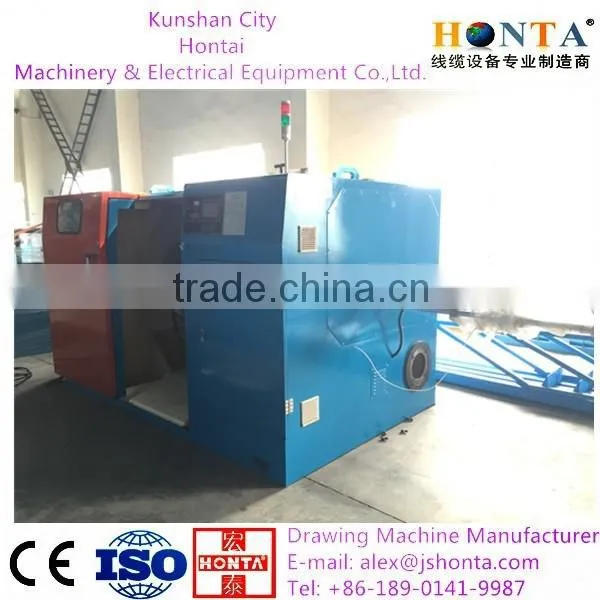

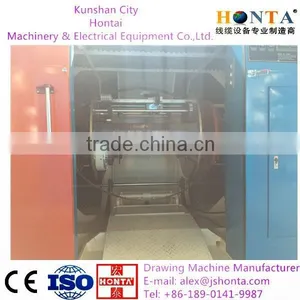

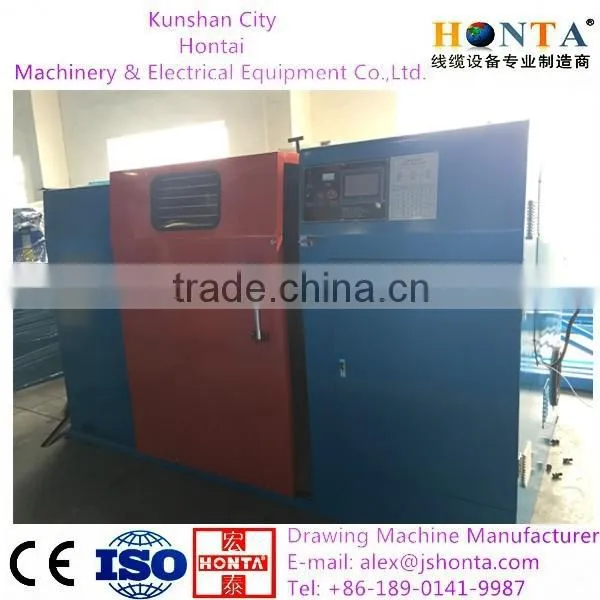

HT-650P Double Twist Bunching Machinery
Type of line : HT– 650P
Applicable : for bunching bare copper wires
Wire diameter range : φ0.10-φ0.68mm
Stranding basal area : 0.05-6mmsq

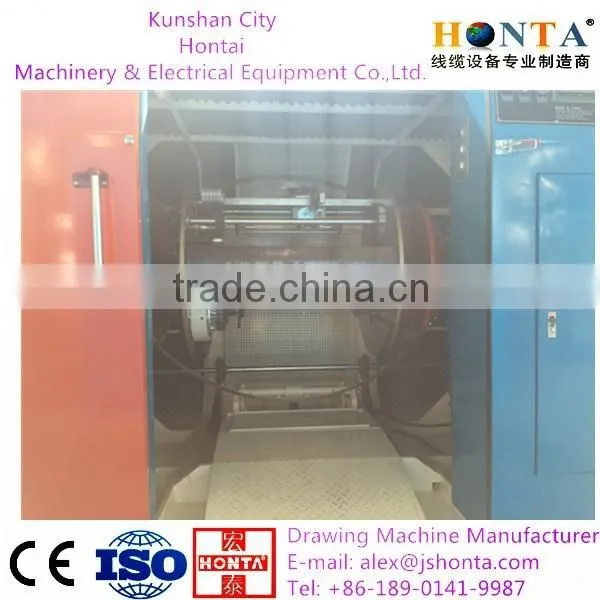

Take up bobbin : Max. DIN630 (Φ127XΦ630 XΦ355)
rotational speed : 2000rpm/4000TPM;
drive motor : 11KWAC

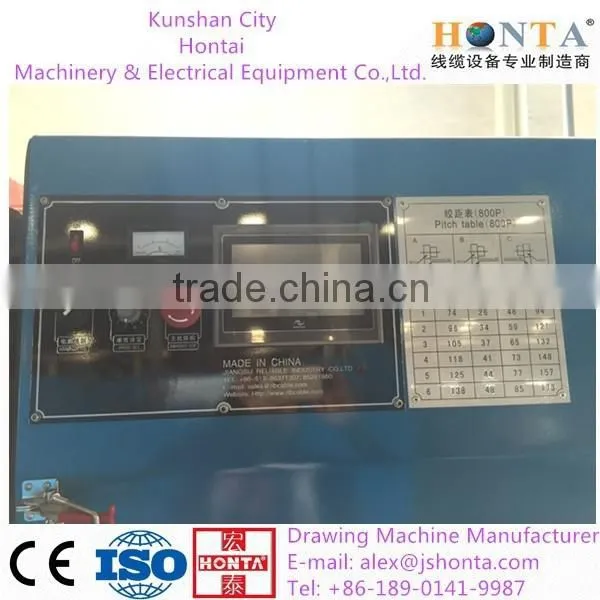

Stranding pitches : 11.15-100mm
Pitch change : by changing pulling capstans manually
Bobbins loading and unloading : by hydraulic with motor
Traverse method : by polish rod,width and lay areadjustable.
Take-up tension control : magnetic particle clutch (new) 256 level auto
control to ensure the stable tension from
empty to full bobbin
Noise level :≤85dB(A)
Center height : 750mm
Stranding direction : leftward or rightward (S or Z)
Outside measurement (main machine) : 2770X1480X1540
Weight : about 3500KGS
Color : Machine color RAL 6018 Yellow Green
Rotate portion and safety fence RAL 1018
Zinc Yellow
Or painted as per customer’s request.
Assembly Workshop
Mechanical Strength
Certifications
Packing: well packed on steel pallets in 1x 40HC containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
Terms of payment:
- 40% at contract, 55% before shipment, 5% after acceptance test at user site in 1 month by T/T.
- Payment by an irrevocable L/C is acceptable.
1. Any inquire will be replied within 24 hours.
2 .Prodessional manufacture,welcome to visit our website
3. Any your idea on machine,we will help you to design and put it into production.
4. High quality,fashion designs,reasonable competitive price,fast lead time.
5. After-sale service.
a. All products will have been strictly quality checked in house before packing.
b.1 year warranty.
c. Engineers available to service machinery overseas
