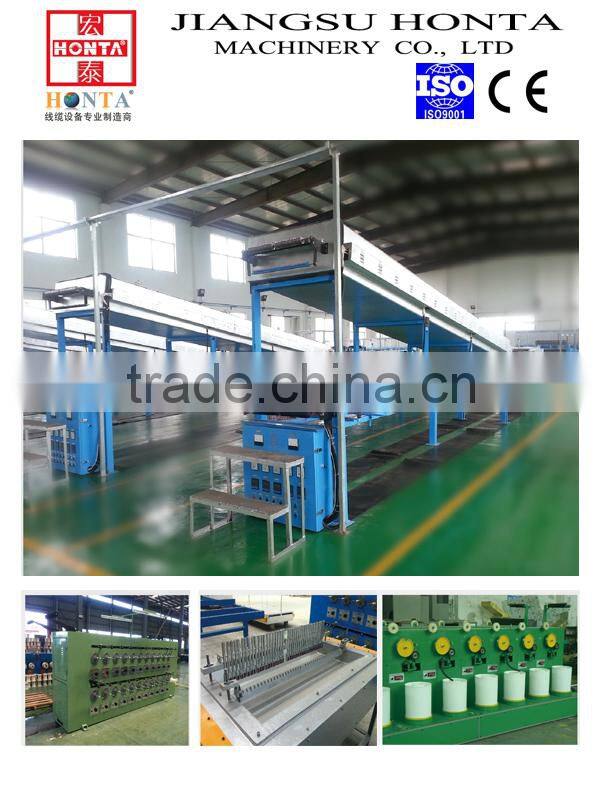

You are here > Home > Copper wire annealing & tinning machine
Product Features
·Magnetic powder clutch tension auto control can ensure constant tension from empty bobbin to full bobbin;
· Synchronous belt drive; pitch change is realized by changing pulling capstan;stable pitch;
·Bobbin loading and unloading is controlled by hydraulic with motor; It's easy to operate.
Product Parameters
1. Technical specification
Machine type |
HT-24TA |
HT-40TA |
HT-40TA |
No. of wires |
24 |
40 |
40 |
Wire dia.(mm) |
0.08~0.32mm |
0.12~0.40mm |
0.20~0.70mm |
Machine speed |
Max.300m/min |
Max.300m/min |
Max.300m/min |
Annealing type |
Electric heating type |
||
Ting-coating type |
Furnace hot-dip tinning |
||
pay-off bobbin size |
Max.300mm |
||
Traverse type |
Centralized traverse frequency control |
||
Take-up type |
Single reel moment spooling |
||
Spoolers bobbin size |
1~200mm |
||
Total power |
67KW |
70KW |
75KW |
line size |
19000x2200x1800mm |
23000x2200x1800mm |
26000x2200x1800mm |
2. power supply:
3-phase voltage ~3×380VAC (±10%)
Single-phase voltage ~220VAC (±10%)
Frequency 50Hz (±2%)
Note: if the power supply is different from your system, pls. advice us.
3. Packing: packed on wooden pallets in container
Suitable for long distance ocean freight transportation and to change of climate, well protected
against moisture and shocks.
Company Profile
Brief Introduction
JIANGSU HONTA MACHINERY CO.,LTD. which is engaged in R&D and manufacture of wire drawing machines for non-ferrous metal in wire and cable industry, is a high and new technology enterprise.
The company’s registered capital is RMB11.8 million, covers an area of 30000 square meters.
The company has a strong machining power and the most professional design team.
HONTA constantly strives to supply wire process machineries of high efficiency,high precision,
and high quality to customers both at home and abroad. Meanwhile,our company has professional
technical team, which can offer professional technical guidance and complete plant equipment planning and so on for customers.
Certification
Product Range
• Copper rod breakdown machine with annealer
• Aluminium rod breakdown machine with annealer
• Wire electrolytic plating lines
• 16 wires multi wire drawing machine lines
• 8 wires multi wire drawing machine lines
• 4 wires multi wire drawing machine lines
• Medium wire drawing machine with annealer
• Fine wire drawing machine with annealer
• Fine wire drawing machine with automatic spoolers
• Aluminium wire drawing machine with automatic spoolers
• Fine wire drawing machine
• Double twist bunching machine
• Annealing & Tinning machine
• Down coilers
Factory Show
Customer Commissioning
Our Service
4. After-service:
·Free training / introduction of the operating and maintenance personnel
·one mechanical engineer and one electric engineer will go to customer's factory
for commissioning after customer finished installation of the machines;
5. Warranty: machines will be tested in our factory before shipment; 12 months
counted from the date of signing the Certificate of Acceptance.
FAQ
Q: What's the application of wire draw machine ?
A: It can be widely used to produce power cable, electrical equipment cable, communication cable,magnet wire, winding wire,bare wire and special cable etc.
Q: What's the characteristic of wire draw machine ?
A:
·Powered motor
·High speed
·Smart programmable control and operation
·High safety standard
·Efficient and cost-effective
Q: What' s the raw material can be draw ?
A:This wire drawing machine can draw copper, copper alloy, aluminum and aluminum
alloy, etc.
