Manufacturer Supply FRP Grating Use For Drain ,Platform ,Walkways

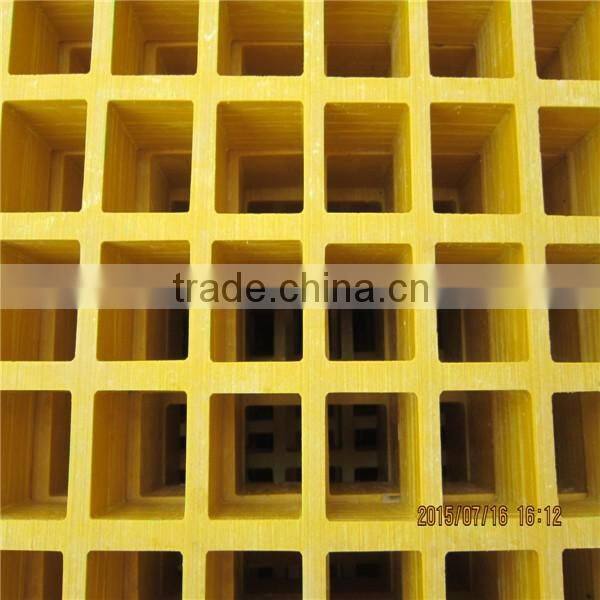

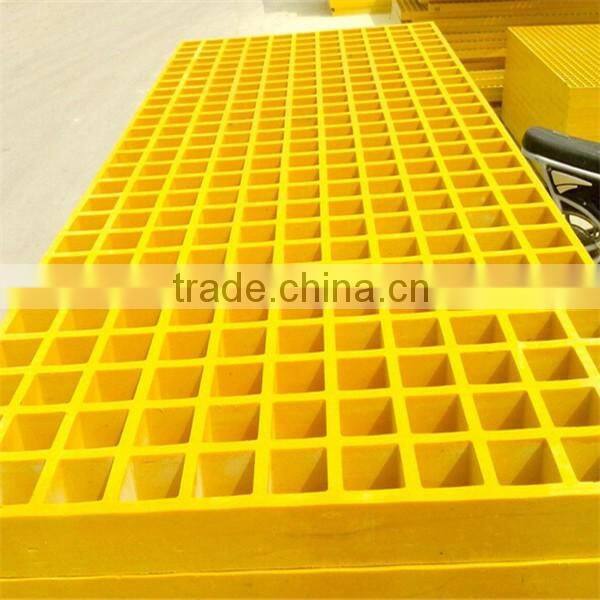

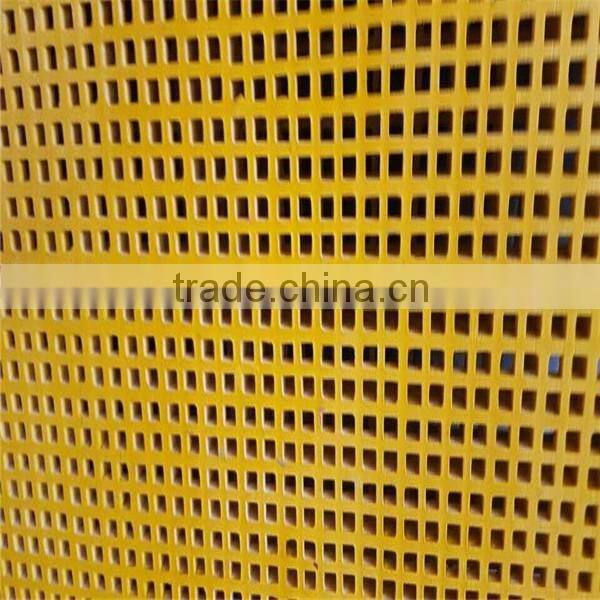

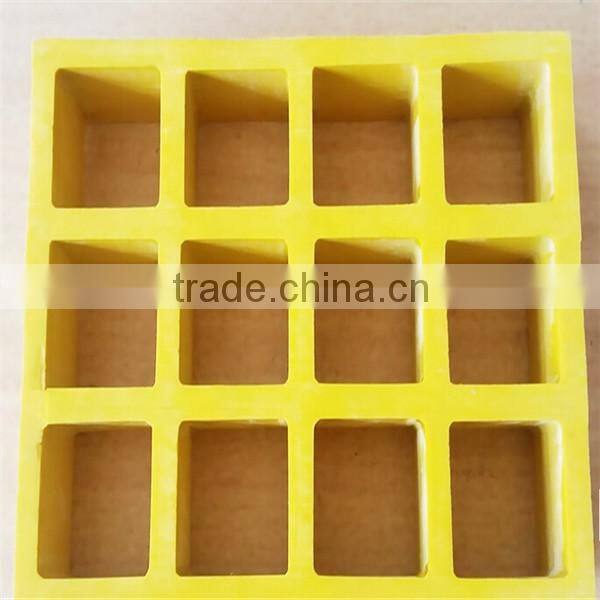

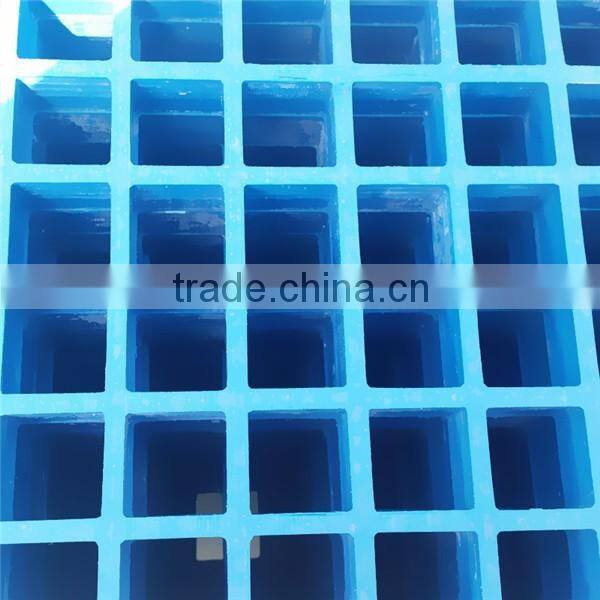

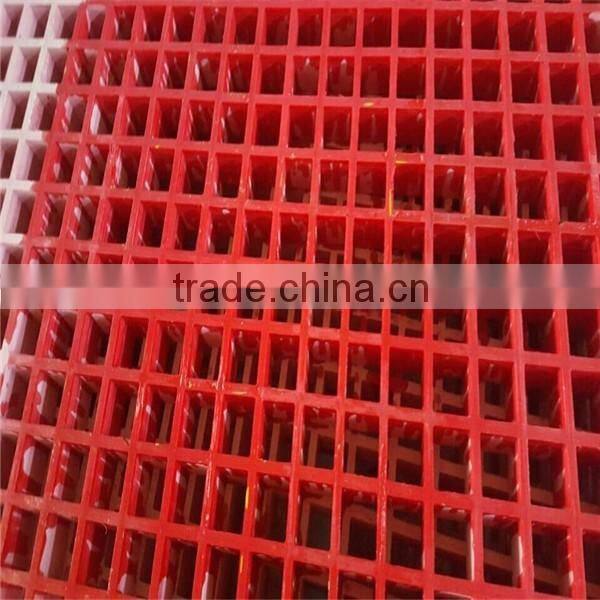

1. FRP Gration Overview
FRP Grating is produced by Glass fiber braiding, casting resin Integral moulding, with many regular distribution of the rectangle and square space of glass fiber reinforced plastic grille plate, has two-way mechanics characteristics.
Can be widely used in oil, Chemical electronics, electric power, paper, printing and dyeing, electroplating, Marine exploration, sewage treatment and other industries’ work platform. Equipment platform, drilling platform, walkway, etc. Is the ideal product in the corrosive environment, at the same time can also be applied to civil construction facilities.
2. FRP Grating Tech Data
Item | FRP moulded grating | ||||||||||

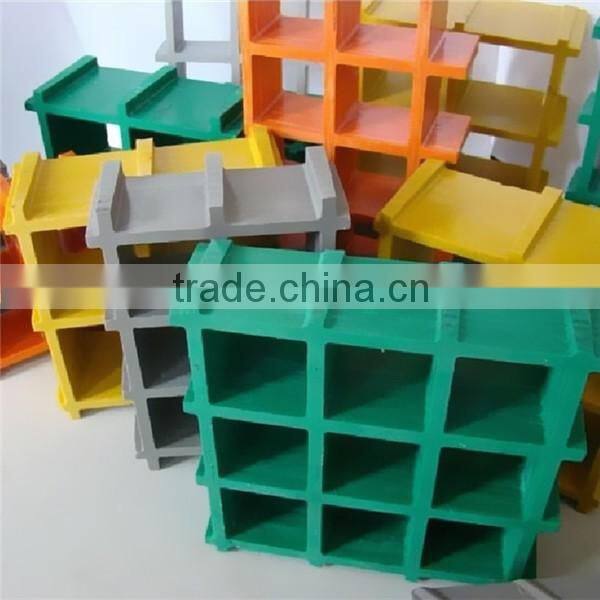

Color | Green, Orange, Grey, Dark Grey, Yellow, Brown | ||||||||||

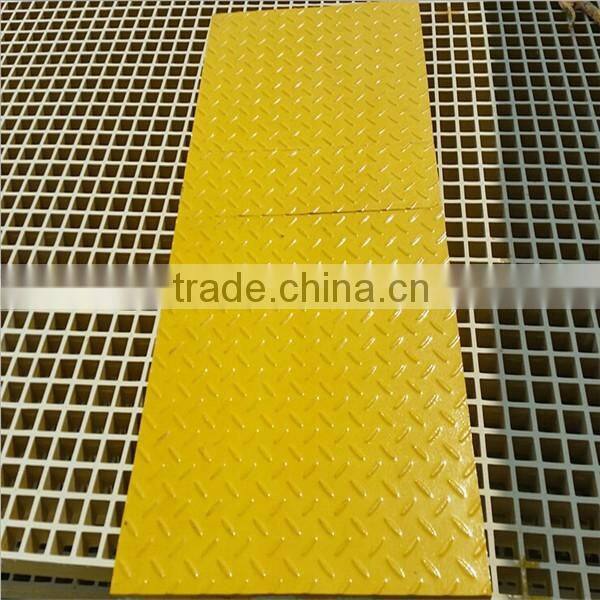

Surface | Fluted, Matte, Flat, Cover plate(Matte, flat, figure), Micro porous | ||||||||||
Model(T*SM) | 25*38 | 38*38 | 50*50 | 38*38*150 | 38*19 | 30*25 | 60*38 | 40*40 | 25*25*100 | 25*40 | 40*48.3 |
Weight kg/m2 | 12.3 | 18.5 | 23.51 | 15.93 | 23.51 | 18.03 | 50.43 | 19.2 | 15.93 | 18.62 | 23.51 |
Size /mm | 1220*3660 1220*2440 | 1220*3660 915*3050 | 1007*2007 | 1220*3660 | 1220*3660 | 1007*2007 | 1220*3660 | 1220*3660 | 1220*3660 | 1220*3660 | 1220*3660 |
Aperture ratio | 68% | 68% | 71% | 67% | 42% | 42% | 58% | 67% | 67% | 67% | 42% |
Item | FRP.Pultrusion.Grating | |||||||||
Color | Green, Orange, Grey, Dark Grey, Yellow, Brown | |||||||||
Surface | Matte or standard | |||||||||
Wear rod distance | 152mm or 305mm | |||||||||
Shape | I | T | ||||||||
Thickness | 25mm | 38mm | 25mm | 50mm | ||||||
Pitch-row /mm | 10 | 15 | 23 | 10 | 15 | 23 | 13 | 23 15.93 | 13 | 25 |
Weight kg/m2 | 17.1 | 14.2 | 11.2 | 22.0 | 19.1 | 16.1 | 12.2 | 11.2 | 19.5 | 15.1 |
Aperture ratio | 40% | 50% | 60% | 40% | 50% | 60% | 33% | 38% | 33% | 50% |

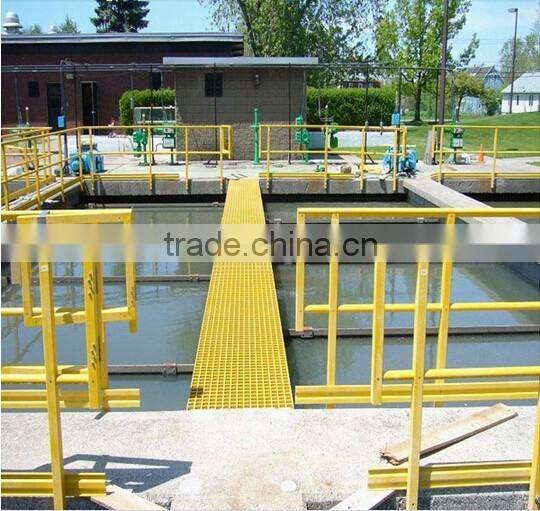

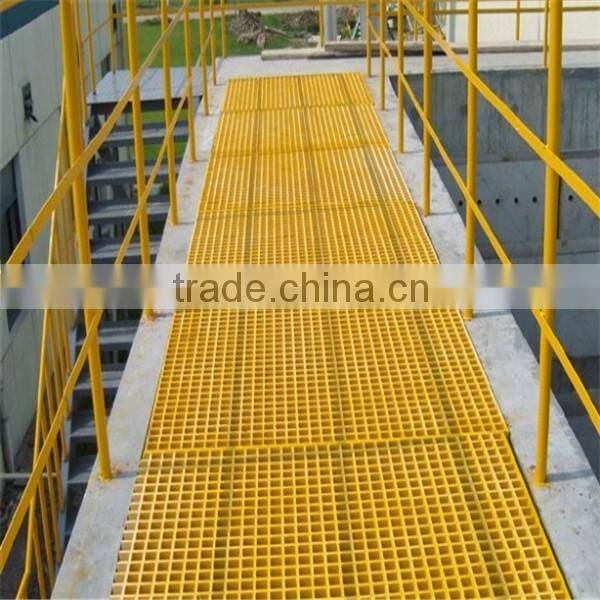

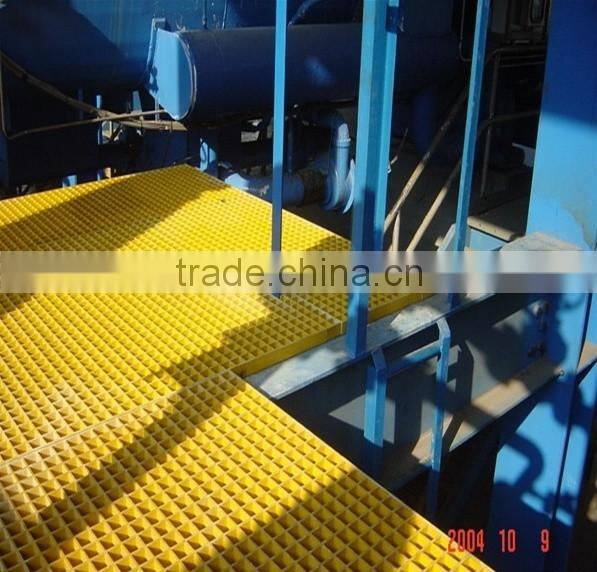

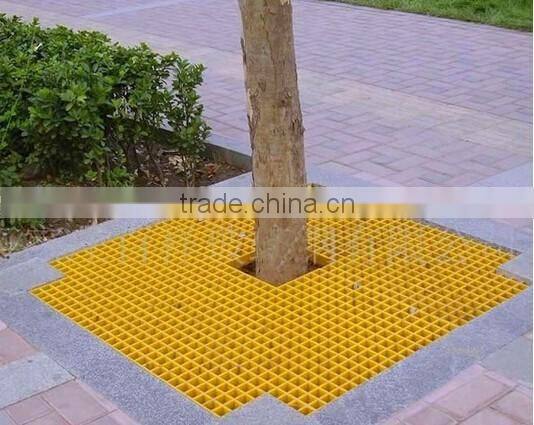

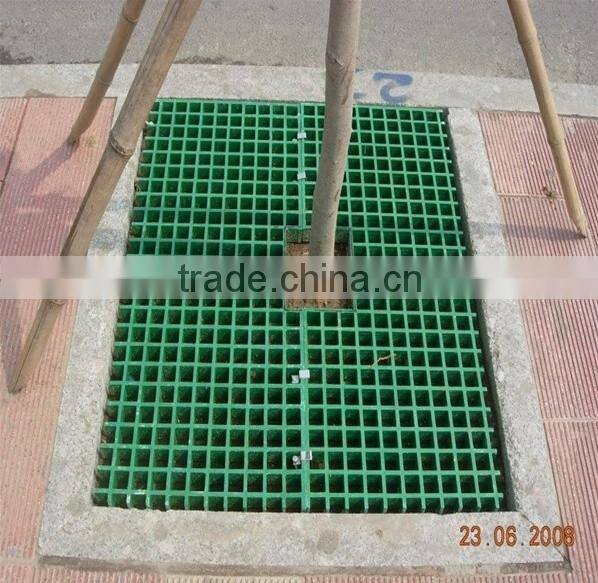

3. FRP Grating Application
- Bridge walkways
- Platforms
- Trench Covers
- Walkways
- Pedestrian Ramps
- Decks and Patios
- Staircase
- Floorings
- Foot Bridges
- Swimming Pool Overflow
- Fencing
- Elevated Car parking
4.FRP Grating Characteristic
- Light weight, high strength, and is convenient for cutting, installation
- Anti-aging, service life is more than 50 years
- Fire-resistance
- Safety, It has excellent electrical insulation, below 10 kv voltage there is no breakdown,
- Without electricity, can be used to devices which is Sensitive to magnetic,
- Designable, flexible Size, convenient to cutting
- Colorful, Colors can be arbitrary choice. Can according to customer’s request to decide color, improve the environment of the work place.
