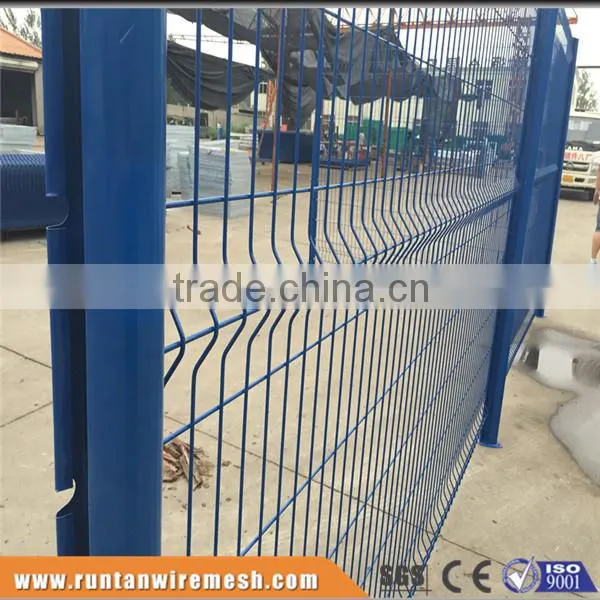

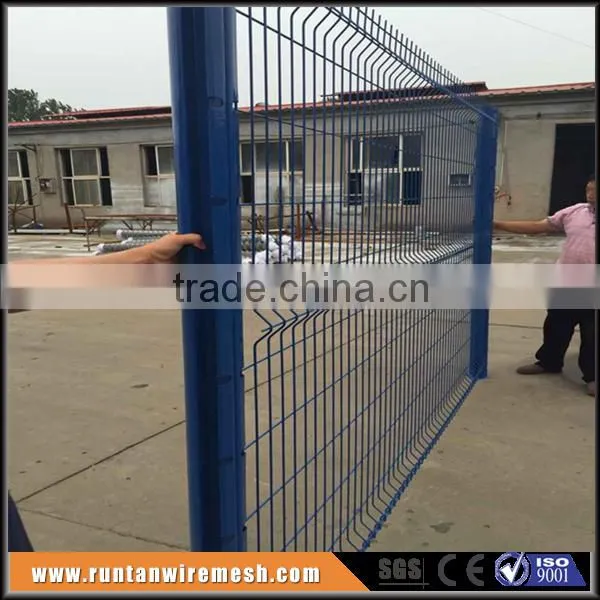

hot dipped galvanized and pvc coated V Mesh Fence (ISO9001,Factory)hot dipped galvanized and pvc coated V Mesh Fence (ISO9001,Factory)
Good corrosion resistance, anti-aging,nice appearance, easy and quick installation.
Panel: Using high quality Iron Rod as raw material, the welded panel, after galvanization, Powers Primer, and Powers top coating; it can resist the corrosive and ultraviolet very strongly. The thickness of power coating is 100-120 microns usually. The choose wire diameter are 2.0 - 8.0mm, It obtails high strong powers to resist the construction.
Fence size: 200 × 50 × 2.5mm × from 630 -2630mm or available on request.
1) V Mesh Fence Production
Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hotdipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading.
2) V Mesh Fence Detailed Specs
Material: low carbon steel wire, galvanized wire and stainless steel wire.
Characteristics: Woven and welded, anti-corrosion, durable, easy to withstand outdoor exposure, corrosion-resisting, etc.
Surface Treatment: Hot-dip galvanized steel wire / Hot-dip galvanized steel wire+power coated / low carbon steel wire+PVC coated.
V Mesh Fence:
| Panel height | Panel Length | Wire Diameter | Mesh Size | Folds No. |
| 1.03m | 2.0m 2.5m |
Gal+Spray Painted 3.85mm/4.0mm; 4.85mm/5.0mm Gal+PVC Coated 3.0mm/4.0mm; 4.0mm/5.0mm |
50 × 200mm 55 × 200mm 50 × 150mm 55 × 100mm |
2 |
| 1.23m | 2 | |||
| 1.5m | 3 | |||
| 1.53m | 3 | |||
| 1.7m | 3 | |||
| 1.73m | 3 | |||
| 1.8m | 4 | |||
| 1.93m | 4 | |||
| 2.0m | 4 | |||
| 2.03m | 4 | |||
| 2.4m | 4 |

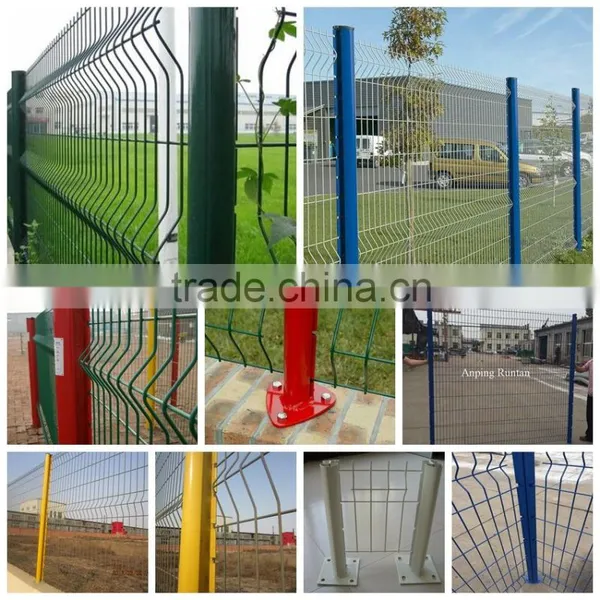

3) V Mesh Fence With Square Post and Clamps
A. Post:
This system usually choose Square Post (50*50mm, 60*60mm), Rectangular Post (80*60*2.5mm, 120*60*3mm), with the high strength and so on. With plastic caps or Roofing rainhat. The finished surface usually is Galvanized and Powder coating, or alternatively.
And if the round post, diam.48mm, plate thickness 1.5mm.
The panels can be easily fixed to the post by making use of the special collets.
B. Coating Technique:
Panels made out of galvanized wire. A pre-treatment process guarantees a perfect PVC coating adhesion to the product surface.
The post are in- and outside galvanized (min. coating 275g/sqm,both sides together), in accordance with Euro norm 10326. Afterwards an adhesion coating is applied and finally the posts are plastic coated (min.60 micron).
The panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking. This also can be designed as the special clients requests.
4) V Mesh Fence With Peach Post
Easy installation
1) Erected into the ground directly: at first, concrete pile is made well and when installation, the post and wire mesh should be installated synchronously and then adjusted for a line to pour concrete finally. The way of installation is so easy that need not any fixed parts.
2) A mounting flange: The base should be finished in advance according to the drawing sheet
before installation. Then these bases are even and the distance of each one is the same. Post can be erected onto the ground with flange in a way of welding or connecting bolt.
Application:
Boundary and anti intruder
5) V Mesh Fence Packing and Loading
6) V Mesh Fence With Swing Gate
7) V Mesh Fence Sliding Gate
8) Company View
Factory |
Anping Runtan Metal Wire mesh products Factory |
Scale |
13340m2 |
Employees |
205 people |
QC Department |
8 Researchers |
Main Products |
Wire Mesh Fence,Temporary Fence,Chian Link Fence, Double Wire Fence,Palisade Fence, Y Fence Post, T Fence Post, ect. |
Quality Control |
ISO9001, BV,CE,SGS Testing |
10) ISO9001,CE,SGS Certificate
(1) Free sample
(2) Factory directly sale
(3) It can customized according to the requirements or drawings
(4) 24 hours online
(5)With the fastest speed of delivery
(6)Answer questions in a timely manaer
Why You should Buy from Us:
· You get Top Quality galvanized welded wire fence panels
· You get Great Value Pricing
· Order securely Online or call our friendly & helpful staff
· We specialise in metal welded v fence
· Guaranteed delivery time firstly
· Directly Factory
