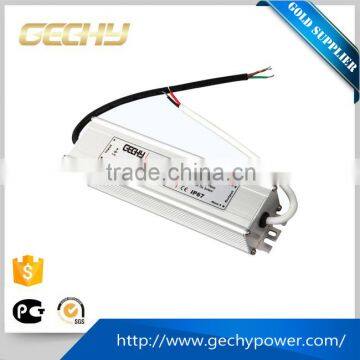

LPV-50-12v,0~4.2a,LPV series 30W 12v,15V24v,IP67 AC/DC constant voltage led waterproof switching power supply LED driver
LED waterproof switching power supply, metal shell, IP44 ~ IP67 degree of protection can be used for indoor and outdoor environment. Built-in active power factor correction function(active PFC),more than 90% efficiency, universal ac input voltage range, possess complete protection.
Description:
LPV-50W series LED constant voltage waterproof switching power supply feature:
· Constant voltage style power supply
· Universal AC input range
· Small volume,low weight,high efficiency
· Protections: short circuit/over load/over voltage
· Cooling by free air convection
· Fully encapsulated with IP67 level
· 100% full load burn-in test
|
Specification Model |
FSPV-50-12 |
FSPV-50-15 |
FSPV-50-24 |
Output |
12V,0~4.2A |
15V,0~3.4A |
24V,0~2.1A |
Error |
±5% |
±5% |
±5% |
Range |
100mV |
100mV |
150mV |
Efficiency |
78% |
78% |
80% |
AC input voltage range |
170~264VAC 47~63Hz 240~370VDC |
||
Input current |
0.65A/230V |
||
AC inrush current |
Cold-start current 36A/230V |
||
Leakage current |
<0.5mA/240VAC |
||
Overload protection |
115-135% hiccup mode,auto-recovery |
||
Over-voltage protection |
115-135% cut off the output,auto-recovery |
||
Over-temperature protection |
≥85°C cut off the output,auto-recovery |
||
Water level |
IP67 |
||
Setup rise hold up time |
200ms,100ms,30ms |
||
Withstand voltage |
I/P-O/P:1.5KvAC 1mimute I/P-FG:1.5KvAC 1mimute O/P-FG:0.5KvAC 1mimute |
||
Working temperature |
-10°C~+60°C, 20%~90%RH |
||
Weight/packing |
0.6Kg,30pcs/19Kg |
||
190x48x38mm | |||
LPV-50-12v,0~4.2a,LPV series 30W 12v,15V24v,IP67 AC/DC constant voltage led waterproof switching power supply LED driver LPV-50-12v,0~4.2a,LPV series 30W 12v,15V24v,IP67 AC/DC constant voltage led waterproof switching power supply LED driver LPV-50-12v,0~4.2a,LPV series 30W 12v,15V24v,IP67 AC/DC constant voltage led waterproof switching power supply LED driver
Q 1. what's the payment terms?
A. usually it will take about two weeks for production
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
A.If you have good quantity,it absolute no problem to do OEM.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
