Home > Electrical & Electronics > Inverter > Power Inverter > HYP-1000W 12v,24v DC to AC 110v,220v,230v Output Pure Sine Wave Power Inverter

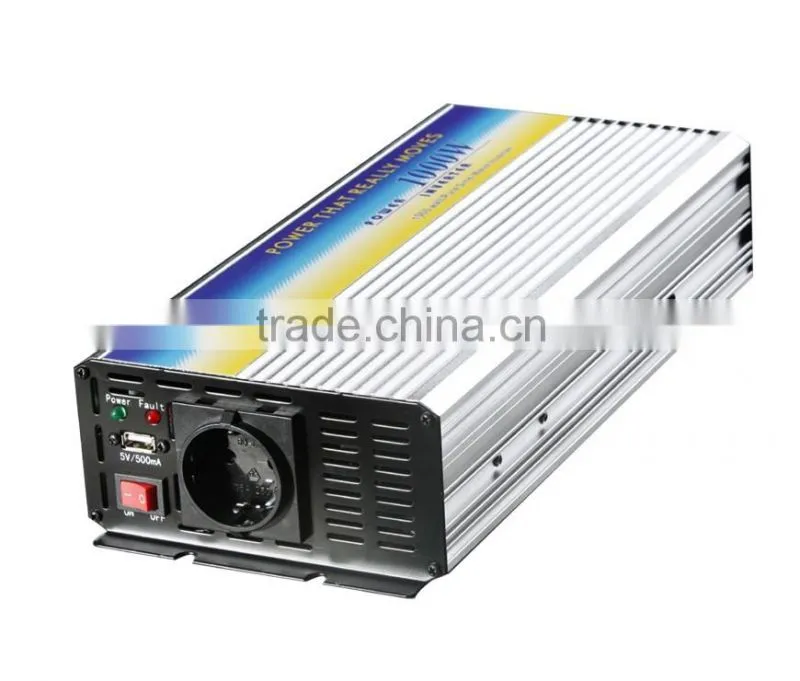

HYP-1000W 12v,24v DC to AC 110v,220v,230v Output Pure Sine Wave Power Inverter

Name: HYP-1000W 12v,24v DC to AC 110v,220v,230v Output Pure Sine Wave Power Inverter
Brand: GECHY
SKU: 111640593
Availability: InStock

HYP-1000W 12v,24v DC to AC 110v,220v,230v Output Pure Sine Wave Power Inverter thumbnail-1

HYP-1000W 12v,24v DC to AC 110v,220v,230v Output Pure Sine Wave Power Inverter photo-1

US$ 50 - 100 MOQ: 300 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

GECHY

Model Number:

HYP-1000

Contact Supplier Request Quote Chat Now

Yueqing Gechy Import And Export Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name GECHY

Model Number HYP-1000

Output Power 1 - 200KW

Output Type Single

Size 350*150*70mm

Weight 2.7kg

Input Voltage 12V OR 24V DC

Output Voltage 110V+/-10% OR 230V+/-10% AC

Type DC/AC Inverters

Output Frequency 50HZ/60HZ

Output Current <0.5A

HYP-1000W 12v,24v DC to AC 110v,220v,230v output Pure sine wave power inverter

Function & Characteristic

1.Input Voltage Range of 12V DC or 24V DC

2.Output Voltage Range of 115V AC or 230V AC

3.For use in cars,boats,trucks,trailers and mobile homes.

4.Take the power inverter to camping and get AC power for lamps,radios or TVs.

5.In an emergency such as blackout,attach the power inverter to your car battery or portable battery and get power to run your appliances.

6.Ultra-Compact Metal Housing

Small and rugged;stored easily in any tool box,briefcase or glove compartment.

7.Low-Battery Alarm/Shutdown

Automatically detects low voltage and shuts down to protect your battery.

8.Integrated Fuse Protection

Protects your battery and power inverter from damage due to outlet overload.

Power inverter specifications

Model	HYP-1000
Max continuous power	1000W
Peak Load Power Rate	2000W
Wave form	Pure Sine Wave
NO load current draw	<0.5A
Input DC voltage Range	12V(10V-15V)DC OR 24V(20V-30V)DC
Output Voltage Range	230V +/- 10% or 110V +/- 10%
Output Frequency Range	50+/-2HZ OR 60+/-2HZ
Max Outer Temperature	< 65℃
THD	<3%
Max Power Efficiency	> 85%
High Voltage Cut Off Level	15.5V+/-0.5V DC OR 31+/-1V DC
Low Voltage Alarm Level	10.5V+/-0.5V DC OR 21V+/-1V DC
Low Voltage Cut Off Level	10.0V+/-0.5V DC OR 20V+/-1V DC
USB OUTPUT	DC5V 500MA
Short-circuit Protection	YES,recover when short circuit is removed
Overload & Short-circuit Protection	YES
Input and Output Voltage Isolation	YES
Built-in Cooling Fan	YES
Package	Color box

HYP-1000W 12v,24v DC to AC 110v,220v,230v output Pure sine wave power inverter HYP-1000W 12v,24v DC to AC 110v,220v,230v output Pure sine wave power inverter HYP-1000W 12v,24v DC to AC 110v,220v,230v output Pure sine wave power inverter

FAQ

Q 1. what's the payment terms?

A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram

Q 2. how's the delivery time ?
A. usually it will take about two weeks for production

Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.

Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.

Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.

Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.

Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
