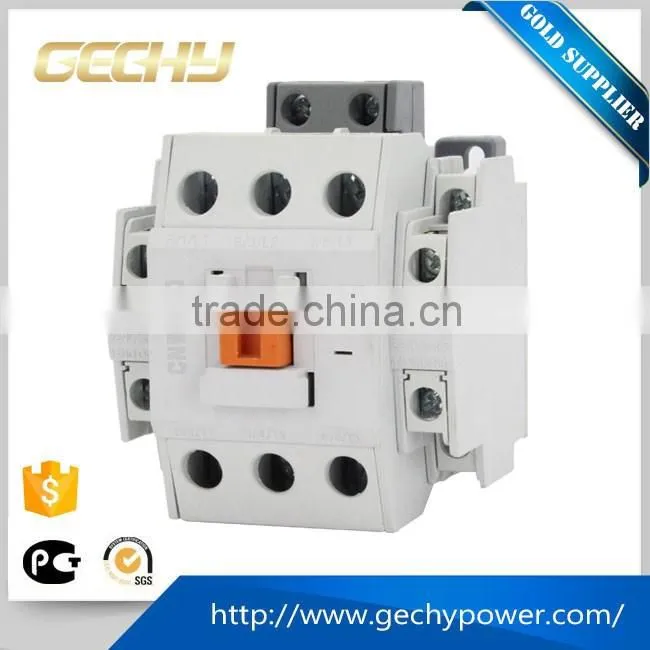

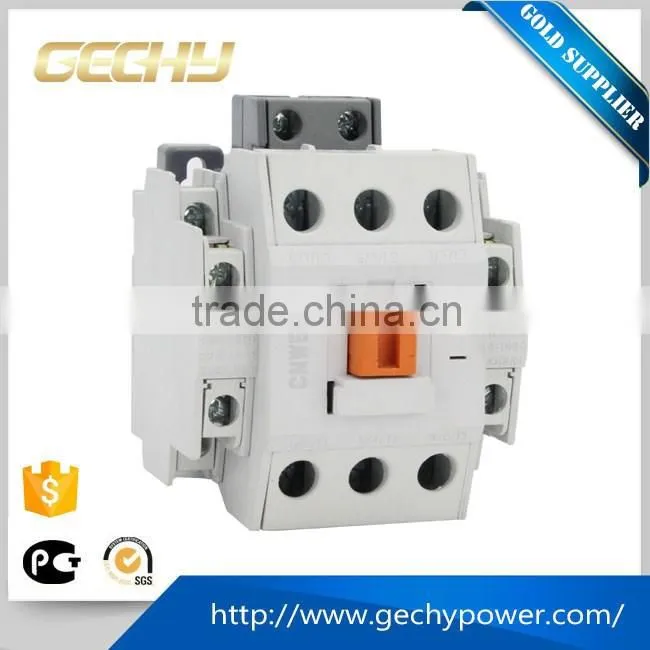

GMC-32 three phase air delayer AC motor magnetic electric contactor
GMC AC Contactor:
GMC series AC contactor is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz, rated current 9A to 125A, making and breaking and frequent starting, controls the AC motor.
Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter.
This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards .
Technical parameters:
Feature:
Three pairs of main contact
Electric shock prevention safety cover design
Guide rail or screw to install
Can directly plug with thermal overload relay
A framework of two rated current level
Can install accessory on the top/side
1NO+1NC auxiliary contact for the standard configuration
|
Rated current
|
AC3(IEC60947-4) |
AC1 Ith
|
Anxiliaty contact (standard)
|
Model
|
|||
220~240V |
380~440V |
500~550V |
690V |
||||
32A |
7.5kW 32A |
15kW 32A |
18.5kW 28A |
18.5kW 20A |
50A |
1NO+1NC |
GMC-32 |
40A |
11kW 40A |
18.5kW 40A |
22kW 32A |
22kW 23A |
60A |
1NO+1NC |
GMC-40 |
Q 1. what's the payment terms?
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact, those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
