MINI Oscilloscope (OSC-1)

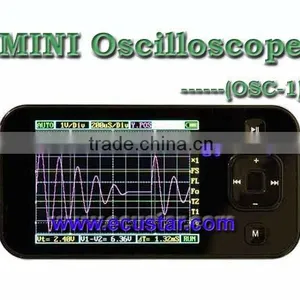

MINI Oscilloscope is a 32-bit compatible digital storage oscilloscope based on ARM Cortex™-M3, equipped with 320*240 color display, SD card, USB port and features charging function. MINI Oscilloscope is compact, easy-to-use and convenient. It is suitable for experiment, home appliance service and general electronic engineering purposes.
- I. Open-case Inspection
- MINI Oscilloscope Mainframe 1 unit
- Charger 1 Pc
- USB cable (5P MINI) 1 Pc
- 20MHz probe 1 PC
- Instruction manual 1 CD
- Fee add 2GB SD Card
Technical Characteristics
- Ultra-portable and light-weight
- 2.8” 320*240 color display
- Micro SD card for waveform storage
- 200kHz bandwidth
- 1Msps sampling rate
- Adjustable measurement symbols
- Multiple triggering modes
- Built-in test signal
- USB rechargeable battery
- Open source program
Display |
2.8” color TFT LCD |
Resolution |
320x240 |
Color |
65K |
Analog bandwidth |
0-200kHz |
Maximum sampling rate |
1Msps 12-bit |
Sampling storage depth |
4096 |
Horizontal sensitivity |
1uS/Div~10S/Div (1-2-5 step) |
Vertical sensitivity |
10mV/Div~10V/Div (x1 probe) |
0.5V/Div~10V/Div (x10 probe) | |
Input impedance |
>500kΩ |
Max. input voltage |
80Vpp (x1 probe) |
Coupling |
DC |
Triggering mode |
Auto, Norma |
|
Single, None, Scan |
Auto measuring |
Frequency, cycle, duty, |
|
Vpp, Vram, Vavg, DC voltage |
|
Vertical accuracy measurement cursor |
|
Horizontal accuracy measurement cursor |
|
Up/Down edge triggering |
|
Triggering cursor |
|
Triggering sensitivity cursor |
|
Hold/Run |
Built-in test signal |
10Hz~1MHz (1-2-5 step) |
Waveform storage |
SD card |
PC interface |
USB port |
Charging |
Via USB port |
Dimension |
105mm x 53mm x 8mm |
Safety Precautions
Please read the following rules. Not following these rules may lead to danger or break the law. Please thoroughly read the user’s manual for more information on safety issues.
1. Please read this instruction manual carefully before using this portable oscilloscope.
2. Do not use the portable oscilloscope and measuring wire with damaged surface.
3. Do not measure signals above DC100V to avoid damage to the instrument.
4. The instrument shall not be stored at high temperature; direct sunlight shall be avoided so as not to affect the service life of LCD.
5. When battery voltage is low and the symbol " " occurs, recharge the battery immediately.
