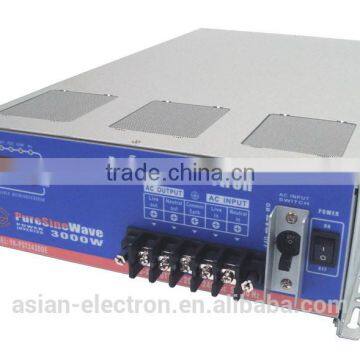

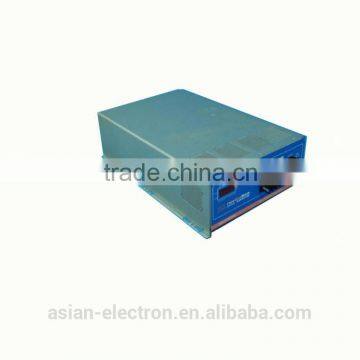

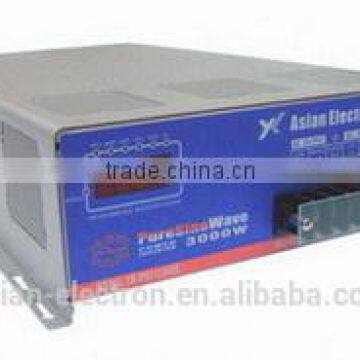

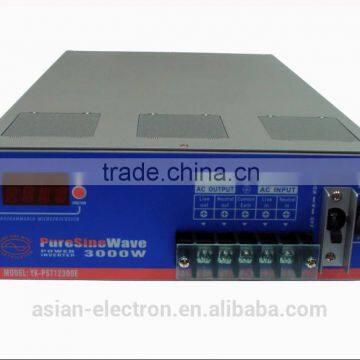

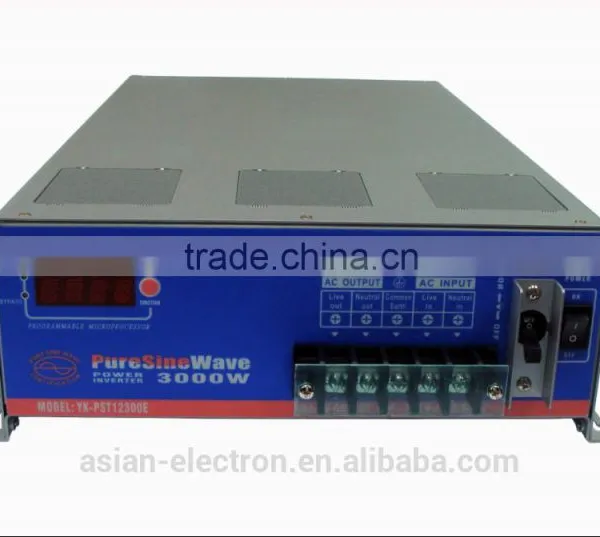

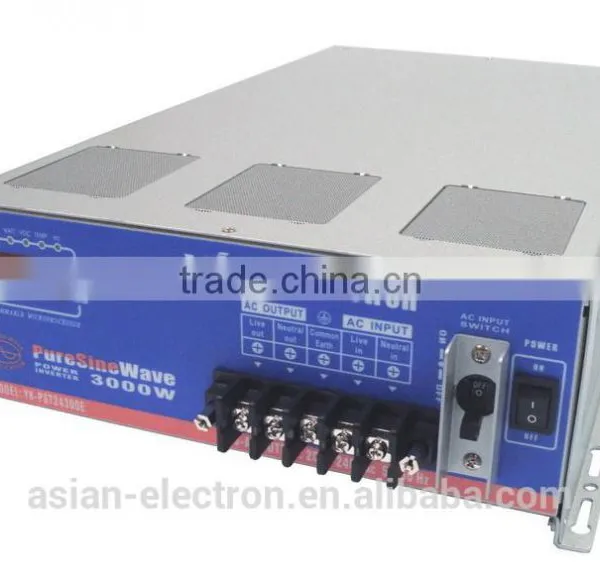

Help CenterTwo Inputs AC & DC Inverter With AC as Priority Power as Priority 5000W Inverter
Related Products
-
Solar off Grid dc to ac Inverter With STS, Bypass Function, CE, FCC CertificateUS$ 650 - 800MOQ: 5 Pieces -
Battery Charger for Lead Acid Battery and Lead Gel BatteryUS$ 80 - 110MOQ: 1 Piece
-
24V/14A Battery Charger for Lead Acid Battery and Lead Gel BatteryUS$ 80 - 110MOQ: 1 Piece
-
24V/14A ac to dc Battery Charger for Car Battery , Schooter Battery and Atuo BatteryUS$ 80 - 110MOQ: 1 Piece
-
Battery Charger for Lead Acid Battery and Lead Gel Battery, 3 Stage Charger 24V/14AUS$ 80 - 110MOQ: 1 Piece
Electrical performance
Features:
1.Digital display
2.Pure sine wave output (THD < 3%) R Load
3.Work with the AC power as main power
4.Thermostatically controlled cooling fan
5.Advanced microprocessor
6.Certification : CE (EMC & LVD)
Specification |
Model |
|||||||
Item |
YK-PST |
YK-PST |
YK-PST |
YK-PST |
YK-PST |
YK-PST |
YK-PST |
YK-PST |
Continuous Output Power |
5000W |
|||||||
Surge Rating |
5200W (3mins) |
|||||||
Peak |
10000W |
|||||||
Input Voltage |
24V |
48V |
110V |
220V |
24V |
48V |
110V |
220V |
Frequency |
50/60Hz ± 0.05% (Switch Selectable) |
|||||||
Output Voltage Adjustment |
100~120VAC (Tune VR) |
200~240VAC (Tune VR) |
||||||
Peak Output Current |
91A |
45A |
||||||
Efficiency (full load) |
85% |
87% |
90% |
92% |
90% |
92% |
94% |
94% |
No load Current Draw |
1.64A |
0.82A |
0.42A |
0.24A |
1.30A |
0.68A |
0.35A |
0.18A |
Output Waveform |
R Load Pure Sine Wave < 3% THD |
|||||||
P.F. |
1.0 |
1.0 |
||||||
Input Voltage Range |
20-32 |
42-62 |
90-140 |
180-275 |
20-32 |
42-62 |
90-140 |
180-275 |
DC Input over voltage alarm |
31VDC |
61VDC |
135VDC |
270VDC |
31VDC |
61VDC |
135VDC |
270VDC |
DC Input over voltage shut-down |
32VDC |
62VDC |
140VDC |
275VDC |
32VDC |
62VDC |
140VDC |
275VDC |
DC Input under voltage alarm |
21VDC |
43VDC |
95VDC |
185VDC |
21VDC |
43VDC |
95VDC |
185VDC |
DC Input under voltage shut-down |
20VDC |
42VDC |
90VDC |
180VDC |
20VDC |
42VDC |
90VDC |
180VDC |
Protection |
Overload, Short Circuit, Reverse Polarity (fuse), Input Undervoltage, Input Overvoltage, Over Temperature |
|||||||
Digital Display |
OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz |
|||||||
Safety |
Meet EN60950-1 |
|||||||
|
EMC
|
FCC Class A |
EN 55022:2006+A1:2007,Class A EN 55024:1998+A1:2001+A2:2003 EN 61000-3-2: 2006 EN 61000-3-3: 1995+A1: 2001+A2: 2005 |
||||||
Interface Control Port |
RS-232 With Baud Rate 2400, 4800, 9600, 19200 (Switch Selectable) |
|||||||
Remote Control Unit |
Optional |
|||||||
AC Input |
110VAC |
220VAC |
||||||
AC Frequency |
(50Hz ~ 60 Hz) ± 3% |
(50Hz ~ 60 Hz) ± 3% |
||||||
Bypass |
4~6ms |
4~6ms |
||||||
Operating Temperature Range |
-20℃ to 50℃ |
|||||||
Storage Temperature Range |
-30℃ to 70℃ |
|||||||
Dimensions |
496(L) ×324(W) ×142(H) mm |
|||||||
Weight |
18kgs |
|||||||
Remark: The specifications are subject to change without notice
