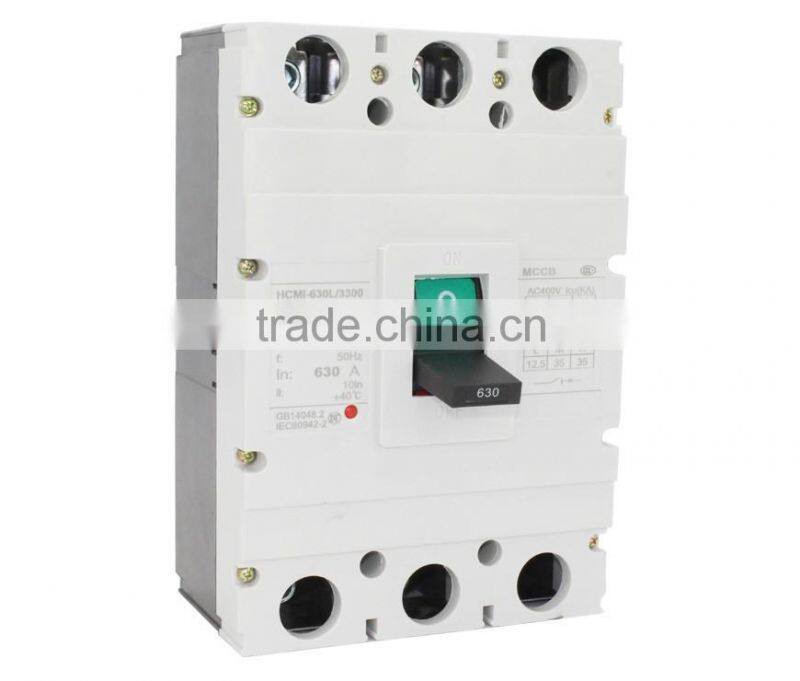

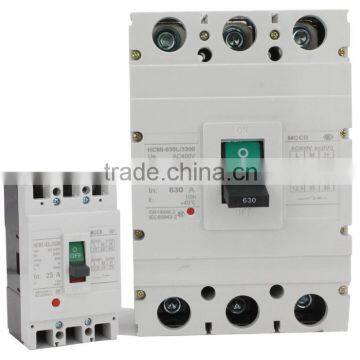

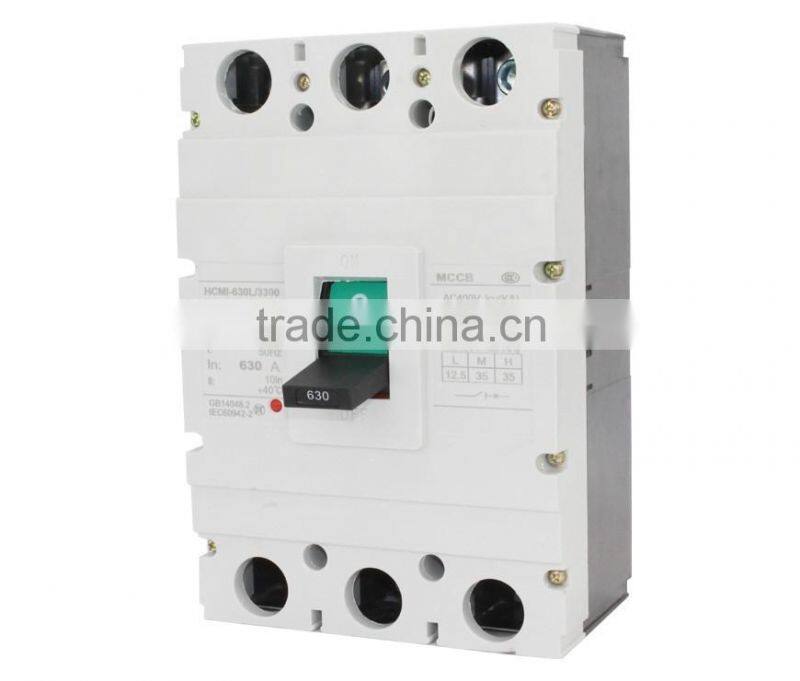

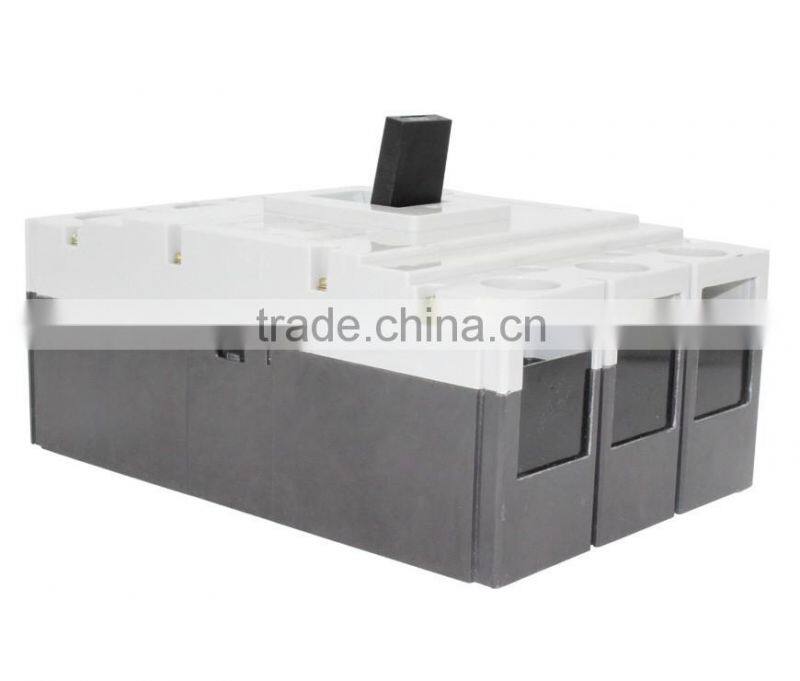

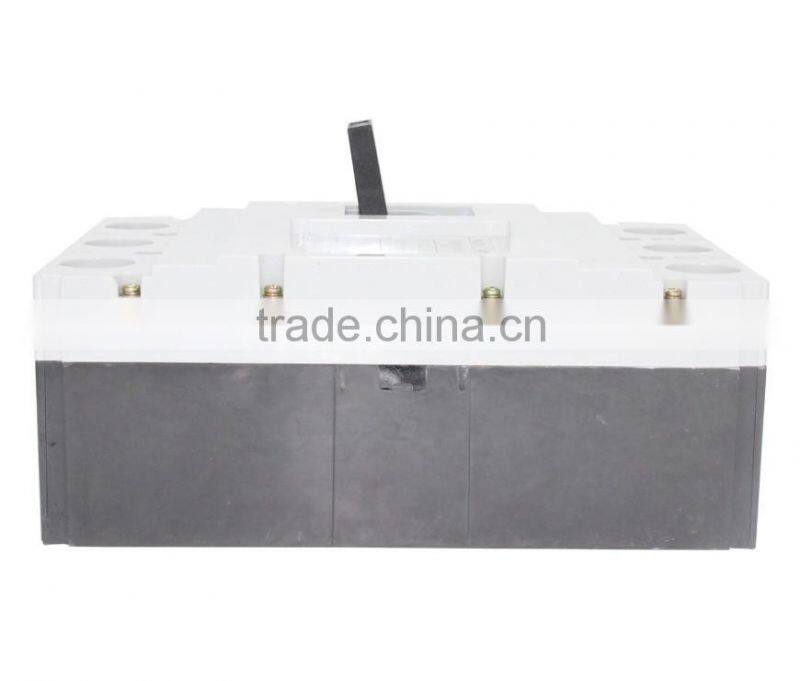

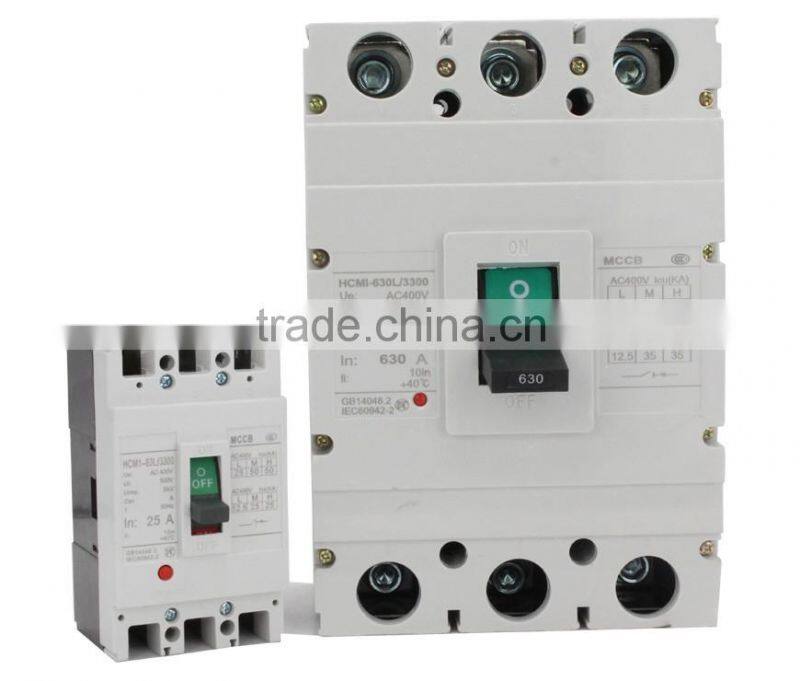

Compective price HCM1/CM1-630L/3300 630A 3Pole 4Pole MCCB moulded case circuit breaker
Application
CM1 series moulded case circuit breaker is one of products developed and manufactured by adopting international advanced technology.It is supplied with rated insulating voltage 800V and used for circuit of AC 50Hz,rated operating voltage AC 400V(or below),rated operating current to 800A for infrequent changing over and starting of the motors.With overload,short-circuit and low voltage protection devices,and can protect circuit and power equipment from being damaged. The products conform to IEC60947-2 standard.

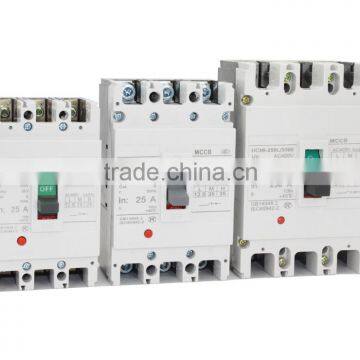

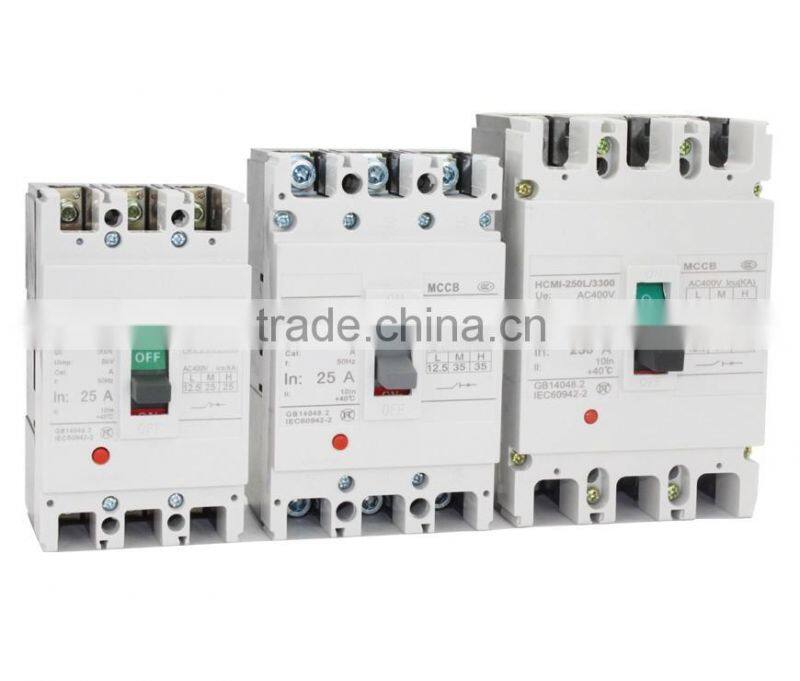

Specification:
Model |
Rated current(A) |
Pole number |
Rated insinuating voltage(V) |
Rated operating voltage(V) |
Arcing-over distance(mm) |
Ultimate Short Circuit Breaking Capacity(KA) |
Service Short Circuit Breaking Capacity(KA) |
Operation Performance |
|
Load |
Unload |
||||||||
CM1-63L |
(6),10 16,20 25,32 40,50 63 |
3,4 |
500V |
400V |
0 |
25 |
18 |
1500 |
8500 |
CM1-63M |
0 |
50 |
35 |
||||||
CM1-100L |
(10),16 20,25 32,40 50,63 80,100 |
800V |
0(≤50) |
35 |
22 |
||||
CM1-100M |
0(≤50) |
50 |
35 |
||||||
CM1-100H |
0(≤50) |
85 |
50 |
1000 |
7000 |
||||
CM1-225L |
100,125 160,180 200,225 |
≤50 |
35 |
22 |
|||||
CM1-225M |
≤50 |
50 |
35 |
||||||
CM1-225H |
≤50 |
85 |
50 |
1000 |
4000 |
||||
CM1-400L |
225,250 315,350 400 |
≤50 |
50 |
35 |
|||||
CM1-400M |
≤100 |
65 |
42 |
||||||

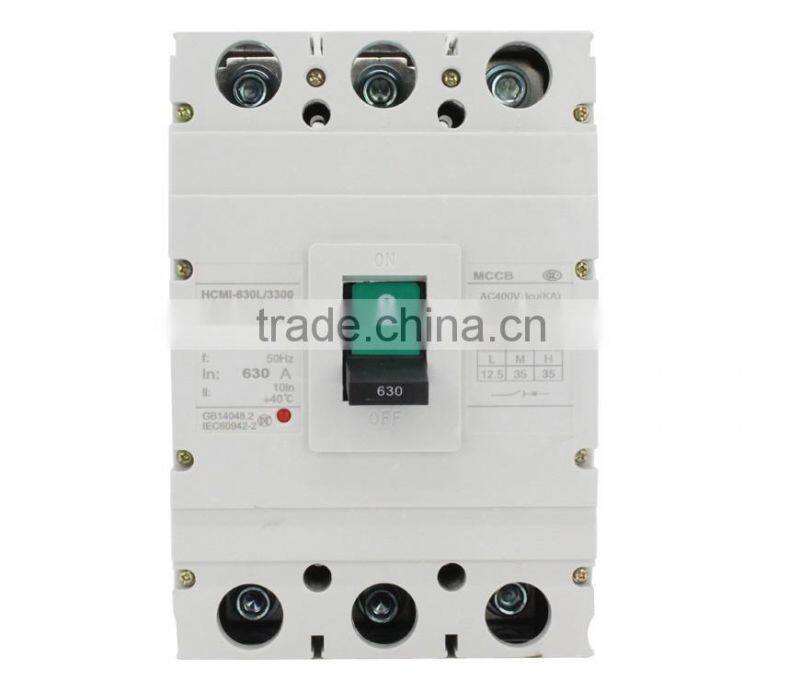

CM1-630L |
400,500 630 |
≤100 |
50 |
35 |
|||||
CM1-630M |
≤100 |
65 |
42 |
||||||
CM1-630H |
≤100 |
100 |
65 |
||||||
CM1-800M |
630,700 800 |
3 |
≤100 |
75 |
50 |
||||
CM1-800H |
≤100 |
100 |
65 |
||||||
CM1-1200M |
1000,1250 |
≤100 |
100 |
65 |
|||||
CM1-1200H |
≤100 |
125 |
75 |
||||||
CM1-1600M |
1600 |
≤100 |
150 |
80 |
|||||
Note: 6A no thermal protection
The N-pole of four-poles breaker is sifed at the right side of the product has four types:
Type A: No current trip-lease on N pole which making all the time, not closing and opening with the other three poles.
Type B: No current trip-release on N pole which closing and opening with the other poles.
Type C: With current trip-release which closing and opening with the other three poles.
Type D: With current frip-release which making all the time not closing and opening with the other three poles.
Protection Characteristic
The thermodynamic release of a circuit breaker provides the feature of inverse time-delay, while the magnetic release is the instantaneous operation as shown on table 2(distribution circuit breaker) and table 3 (motor protection circuit breaker).
Table 2
Rated current of release(A) |
Thermodynamic release(ambient temp) |
Operational current of magnetic release(A) |
|
|
1.05ln(cold state) Inoperative time(h) |
1.3ln(heat state) Operative time(h) |
||
10≤In≤63 |
≥1 |
<1 |
10In±20% |
225≤In≤630 |
≥2 |
<2 |
|
100≤In≤800 |
≥2 |
<2 |
5In±20% |
Table 3
Rated current of release(A) |
Thermodynamic release(ambient temp) |
Operational current of magnetic release(A) |
|||
|
1.0ln(cold state) Inoperative time(h) |
1.20ln(heat state) Operative time(h) |
1.50ln(heat state) Operative time(h) |
7.2ln(cold state) Operative time(h) |
||
10≤In≤225 |
≥2 |
<2 |
≤4min ≤8min |
4s<Tp≤10s 6s<Tp≤20s |
12In±20% |
225≤In≤630 | |||||
