Input DC as Priority AC as Backup Power 3KVAE Inverter

Input DC as Priority AC as Backup Power 3KVAE Inverter thumbnail-1
Input DC as Priority AC as Backup Power 3KVAE Inverter thumbnail-2
Input DC as Priority AC as Backup Power 3KVAE Inverter thumbnail-3
Input DC as Priority AC as Backup Power 3KVAE Inverter thumbnail-4
Input DC as Priority AC as Backup Power 3KVAE Inverter thumbnail-5
Input DC as Priority AC as Backup Power 3KVAE Inverter thumbnail-6
Input DC as Priority AC as Backup Power 3KVAE Inverter photo-1
Input DC as Priority AC as Backup Power 3KVAE Inverter photo-2

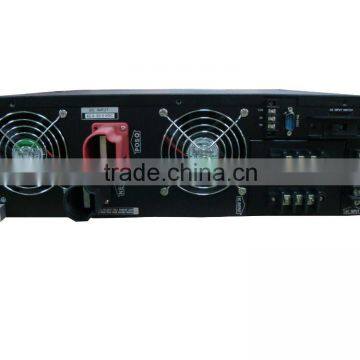

Input DC as Priority AC as Backup Power 3KVAE Inverter photo-3

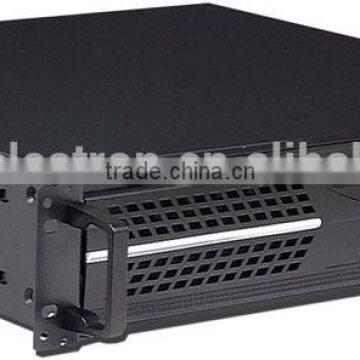

Input DC as Priority AC as Backup Power 3KVAE Inverter photo-4

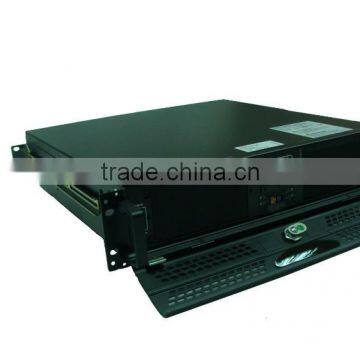

Input DC as Priority AC as Backup Power 3KVAE Inverter photo-5

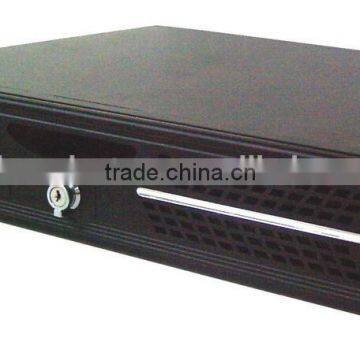

Input DC as Priority AC as Backup Power 3KVAE Inverter photo-6
US$ 500 - 900 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Asian Electron
Model Number:
YK-PSW123KVA/E 243KVA/E 483KVA/E 2U
Contact Supplier Request Quote Chat Now
Asian Electron Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
TAIWAN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Asian Electron
Model Number YK-PSW123KVA/E 243KVA/E 483KVA/E 2U
Output Power Other, 3000W
Output Type Single
Size 435(L)X424(W)X88(H) mm
Weight 12.8kgs
Input Voltage 12/24/48VDC
Output Voltage 100~120V or 200~240V (Tune VR)
Type DC/AC Inverters
Output Frequency 50/60Hz +/- 0.05% (switch selectable)
Output Current 3KVAE

Features :

Pure sine wave output (THD < 3%) R load

By pass function

Output frequency : 50/60Hz switch

RS-232 interface / remote controls port / Wire connection to PC

Optional : SNMP interface / DC input 110/220 / door / AC to AC as priority & DC to AC as spare / 5 sets dry contacts (voltage free)

Wired Remote control

Loading controlled cooling fan

Advanced microprocessor

Protection : Input Undervoltage, Input Overvoltage, Overload, Short circuit, Low battery alarm, Over temperature



AC output sockets : Universal / UK / SCHUKO / USA / Australia/New Zealand / Terminal / IEC

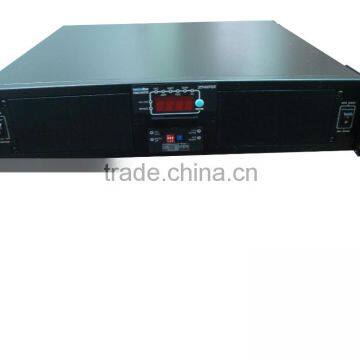

2U3KVA 19”Rack Mount Pure Sine Wave Inverters

Features:

1. Digital display

2. Bypass function (STS)

3. Advanced microprocessor

4. Thermostatically controlled cooling fan

5. Automatically frequency switch

6. RS – 232 interface / remote controls port / Wire connection to PC

7. Protection : Input low voltage Overload Short circuit

Low battery alarm     Input over voltage     Over temperature

Specification

Model

Item

YK-PSW
123KVA
(2U)

YK-PSW
243KVA
(2U)

YK-PSW
483KVA
(2U)

YK-PSW
1103KVA
(2U)

YK-PSW
2203KVA
(2U)

YK-PSW
123KVAE
(2U)

YK-PSW
243KVAE
(2U)

YK-PSW
483KVAE
(2U)

YK-PSW
1103KVAE
(2U)

YK-PSW
2203KVAE
(2U)

Continuous Output Power

3000W

Surge Rating

3Min.

3200W

3Sec.

3500W

Peak

6000W

Input Voltage

12V

24V

48V

110V

220V

12V

24V

48V

110V

220V

Frequency

50/60Hz ± 0.05% (Switch Selectable)

Output Voltage Adjustment

100~120VAC (Tune VR)

200~240VAC (Tune VR)

Peak Output Current

54A

27A

Efficiency (full load)

86%

88%

89%

94%

94%

87%

90%

92%

94%

94%

No load Current Draw

1.5A

0.82A

0.39A

0.16A

0.11A

2.2A

1.08A

0.55A

0.28A

0.12A

Output Waveform

R Load Pure Sine Wave < 3% THD

P.F.

1.0

0.85

0.85

0.85

0.85

1.0

0.85

0.85

0.85

0.85

Input Voltage Range

10-16
VDC

20-32
VDC

42-62
VDC

90-140
VDC

180-275
VDC

10-16
VDC

20-32
VDC

42-62
VDC

90-140
VDC

180-275
VDC

DC Input over voltage alarm

15.5VDC

31.0VDC

61.0VDC

135.0VDC

270.0VDC

15.5VDC

31.0VDC

61.0VDC

135.0VDC

270.0VDC

DC Input over voltage shut-down

16.0VDC

32.0VDC

62.0VDC

140.0VDC

275.0VDC

16.0VDC

32.0VDC

62.0VDC

140.0VDC

275.0VDC

DC Input under voltage alarm

10.5VDC

21.0VDC

43.0VDC

95.0VDC

185.0VDC

10.5VDC

21.0VDC

43.0VDC

95.0VDC

185.0VDC

DC Input under voltage shut-down

10.0VDC

20.0VDC

42.0VDC

90.0VDC

180.0VDC

10.0VDC

20.0VDC

42.0VDC

90.0VDC

180.0VDC

Protection

Overload, Short Circuit, Reverse Polarity (Fuse), Over/Under Input Voltage, Over Temperature

Digital Display

OVP, UVP, OTP, OLP, VAC, AMP, WATT, VDC, TEMP, Hz

Safety

EN60950-1

EMC

FCC Class A

EN 55022: 2006,Class A

EN 61000-3-2: 2006

EN 61000-3-3: 1995+ A1:2001+A2:2005

Interface Control Port

RS-232C With Baud Rate 2400, 4800, 9600, 19200 (Switch Selectable)

AC Input

110VAC

AC Frequency

(50Hz ~ 60 Hz) ± 3%

220VAC

Bypass

4~6ms

(50Hz ~ 60 Hz) ± 3%

Operating Temperature Range

-20℃ to 50℃

4~6ms

Storage Temperature Range

-30℃ to 70℃

Dimensions

445(L) ×424(W) ×88(H) mm

Weight

14.3kgs







Packaging & Shipping

Input DC as priority AC as backup power 3KVAE inverterInput DC as priority AC as backup power 3KVAE inverterInput DC as priority AC as backup power 3KVAE inverterInput DC as priority AC as backup power 3KVAE inverter
