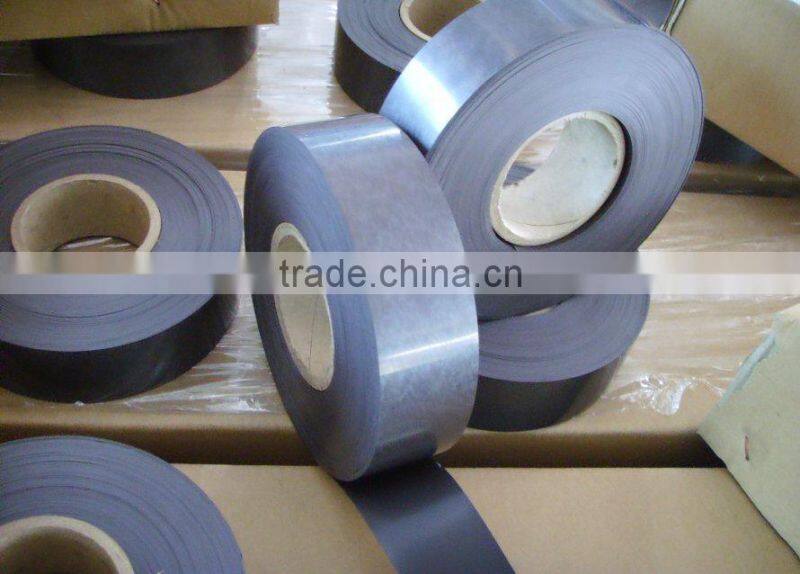

Help CenterStrong Magnetic Strip;Shower Door Magnetic Strip
Related Products
-
Strong Magnetic Strip;Used in House & School & FactoryUS$ 5 - 10MOQ: 500 Pieces -
Shower Door Flexible Rubber Magnetic Strip; Used in House & School & FactoryUS$ 2.8 - 3MOQ: 500 Rolls
-
Epoxy Fridge Magnet;magnetic Sticker;Durable and Pliable MagnetUS$ 0.06 - 0.08MOQ: 10 Pieces
-
Clean-cut Fridge Magnet,skillful Technology Magnet, Super R&D Customized,kiss Cut Magent Backed Printing PaperNegotiableMOQ: 2000 Pieces
-
Epoxy Fridge Magnet;magnetic Sticker;Durable and PliableUS$ 0.06 - 0.08MOQ: 10 Pieces
Specifications
strong magnetic strip1. Thickness: 0.15mm~2.0mm
2. isotropic and anisotropic
3. Material: Rubber magnet
4.Length: 30M,50M
Strong magnetic strip,
perty: Isotropic and anisotropic magnetic sheets available
2.thickness:0.2mm,0.3mm,0.4mm,0.5mm,0.75mm,1mm,2mm,3mm
3.width:610mm,620mm,1000mm,1100mm,1200mm,1260mm
4.one size magnetized,the other uv coating,or two--side magnetized roll and sheets can be supplied to order.
5.Shape: sheet or roll
Size Range of Flexible Ferrite Magnet
Size Range (unit: mm) |
Min |
Max |
|
Roll |
length |
/ |
/ |
width |
/ |
610 |
|
thickness |
0.2 |
2.0 |
|
Sheet |
length |
/ |
1200 |
width |
/ |
200 |
|
thickness |
0.2 |
3.0 |
|
Strip |
width |
10 |
80 |
thickness |
0.5 |
3.0 |
|
Remark |
the common packing for roll material is 30m/roll or 50m/roll; it also depends on the specific width and thickness of the product as well as the shipping terms. |
||
Tolerance of Flexible Ferrite Magnet
Tolerance (unit: mm) |
Calendered Sheet |
Extruded Strip |
Die Cut Part |
|
length |
-3 |
+1.5/-0(m) |
+/-0.3 |
|
width |
-3 |
+/-0.3 |
+/-0.3 |
|
thickness |
>=1.0 |
+/-0.08 |
+/-0.15 |
+/-0.08 |
<1.0 |
+/-0.05 |
+/-0.05 |
||
The surface of flexible magnet sheet and strip can stick with
the following laminations to make various kinds of magnetic
products which have wide usage!
+UV |
glossy/matt, to keep the surface glossy and clean |
+PP film |
to protect the printing |
+STICKER |
with/without printing |
|
+DOUBLE ADHESIVE (PSA) |
acrylic/rubber glue; foam/PET/cotton paper based; indoor/outdoor used are all available |
+PVC(vinyl) |
glossy/matt; with/without printing |
+PRINTING |
silk screen printing |
offset printing, spot color printing |
mon size:1000mm*0.4mm*630mm
7.package:one roll into one carton,15/30cartons on one pallet.
8.features: easy to cut,easy to install ,flexible and permanent magnetism,
9.Application:
Crafts, toys, games, magnetic signs, displays, production control (or visual aid) systems, warehouse shelf labeling, door gaskets, door and cabinet closures, small tool and instrument holders, movable markers, advertising premiums, magnetic business cards, architectural planning layouts, etc.
Home use:For keep your stuff in the right place such as remote controller, tools kit, decorating etc.
Office use:Applying as a document label, or stick it at memo note, calendar etc.
Industry use:Applying as a stock label or stick at bulletin board.
Educational use:Applying for instruction equipment or as a material for invention. Magnet Strip has many sizes for your more convenient work Process flow of rubber magnets
10.standard: SGS,EN71/3
customized sizes accepted.
