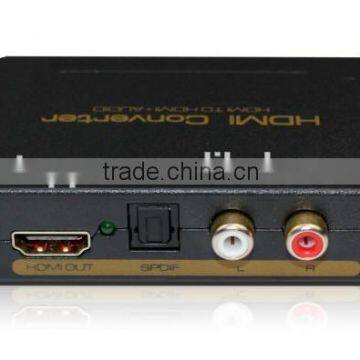

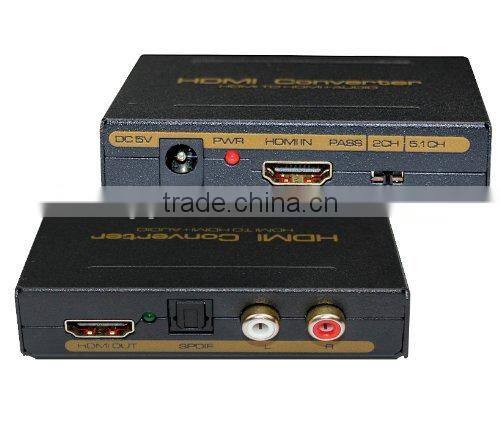

High Quality HDMI and Optical SPDIF+RCA L/R Audio Extractor HDMI Audio Splitter Adapter
Features:

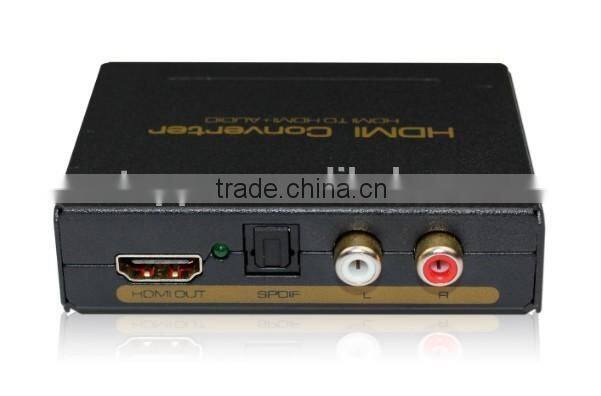

One HDMI input converted to one HDMI+ Audio (SPDIF+R/L)output
Output audio support: SPDIF+R/L analog Audio Output
Input Resolution: up to 1080P(50/60Hz)
HDMI to achieve the synchronization of audio signal separation. There are PASS /
2.0CH / 5.1CH three kinds of audio mode options
LED indication: when source or sink is working, LED relative to is light.
No loss of quality
Installs in minutes
Need DC5V/1A power supply
Specifications:
HDMI resolution …………………………...24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format …………………………..…..………….24bit/deep color 30bit,36bit
Audio output……………………………………………………………………………. L/R+SPDIF
Max bandwidth………………………………………………………….………………….225MHz
Max band rate…………………….………………….………………….………………..6.75Gbps
Input/Output TMDS signal ………….……………………………….……0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..………… 5Volts p-p (TTL)
Input cable distance..…... ………………………. ….…..≤15m AWG26 HDMI standard cable
Output cable distance……………………………….…...≤20m AWG26 HDMI standard cable
Max working current…………………………………………………………………………500mA
Power adapter format…………….…..Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….………………………………… (-15 to +55)
Operating Humidity range………………………….….……….5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….……………………84.5X61.8X21 (mm)
Weight…..………………………………………………………..…….……………………..…135g
Package Included:
1x HDMI to HDMI + Audio converter
1xUser's Manual

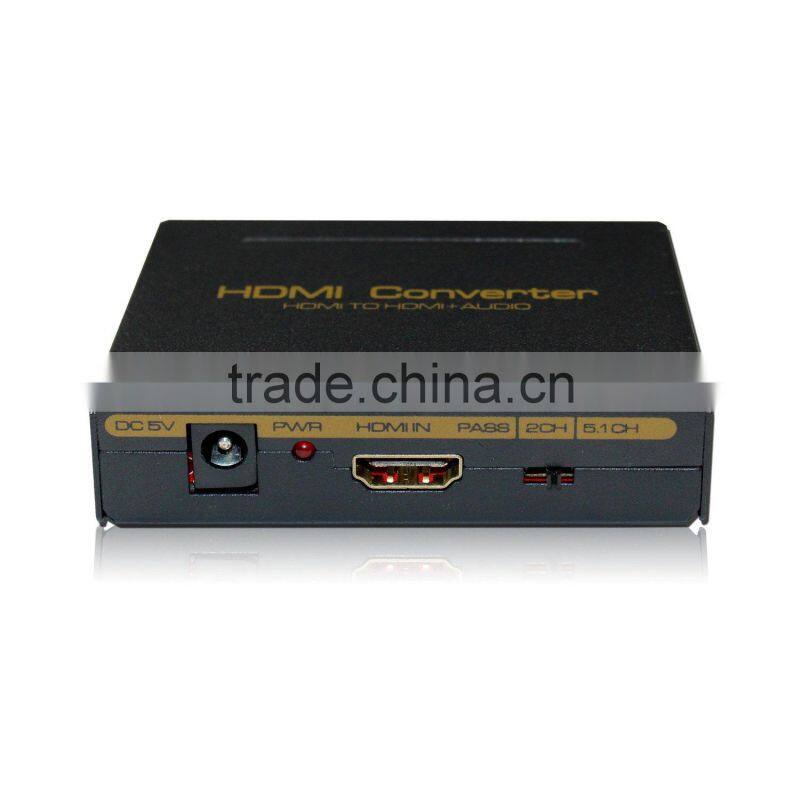

This converter has 3 Audio model:
PASS: HDMI pass mode. The audio and video from the HDMI output,SPDIF and L/R no output.
2CH: 2 channel stereo mode. The HDMI / SPDIF and L/R output stereo audio.
5.1CH: 5.1 channel mode. The HDMI/SPDIF output 5.1 channel audio,L/R no output.

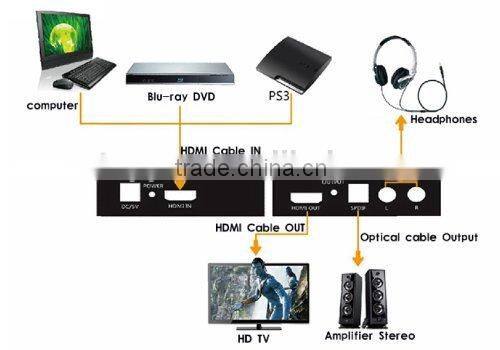

Operating and Connecting:
1. To use one HDMI cable to connect the HD Source with the input HDMI port.
2. To connect the converter HDMI output port with the HD Display.
3. To use one audio cable to connect the converter R/L port with the audio equipment.
4. To use the optical cable to connect the SPDIF port with the audio equipment.
5. To connect the converter with 5V DC power adaptor.
Notes:
Please use the machine as the instruction listed to keep the long use lifetime of the machine.
* The machine should be placed at the spot far from the Damp, High-Temperature, Dusty, Erosive, and oxidative environment.
* All parts will be free from the strong shake, hit, fall.
* Touching the power adaptor with the wet hands is prohibited.
* Please hold the power adaptor head and do not pull the power cord when cut off from the socket.
* Please turn the power off when the machine is not used for long time.
* Please do not open the cover and do not touch the inside parts.
* Please use the original factory power adaptor.
