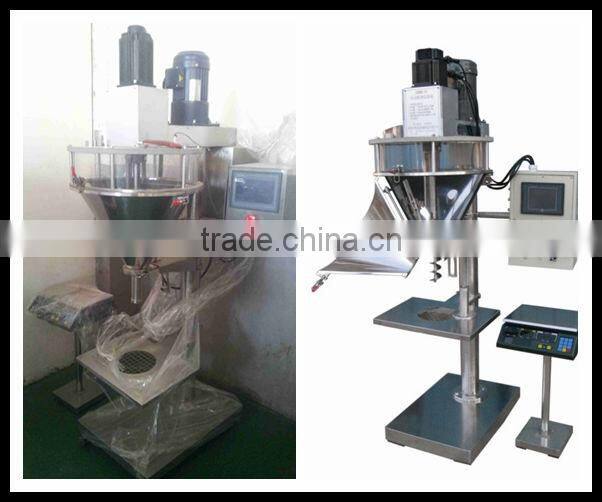

Help CenterJLCT-F-2000 Semi Automatic Powder Filling Machine
Related Products
-
Weighing and Packing Machine JLCT-K-2000US$ 2,000 - 4,000MOQ: 1 Set -
Hot Sell JLCT-F-2000 Semi Automatic Auger Filling MachineUS$ 4,165 - 4,500MOQ: 1 Set
-
JLCT-F-2000 Powder Filling MachineUS$ 3,000 - 8,000MOQ: 1 Set
-
Powder Filling MachineUS$ 5,640 - 5,800MOQ: 1 Set
-
Paste Filling MachineUS$ 1,370 - 1,610MOQ: 1 Set
Specifications
Semi Automatic Powder Filling Machine1.High Accuracy
2.Easy to Operate
3.Reasonable Price
Product Usage

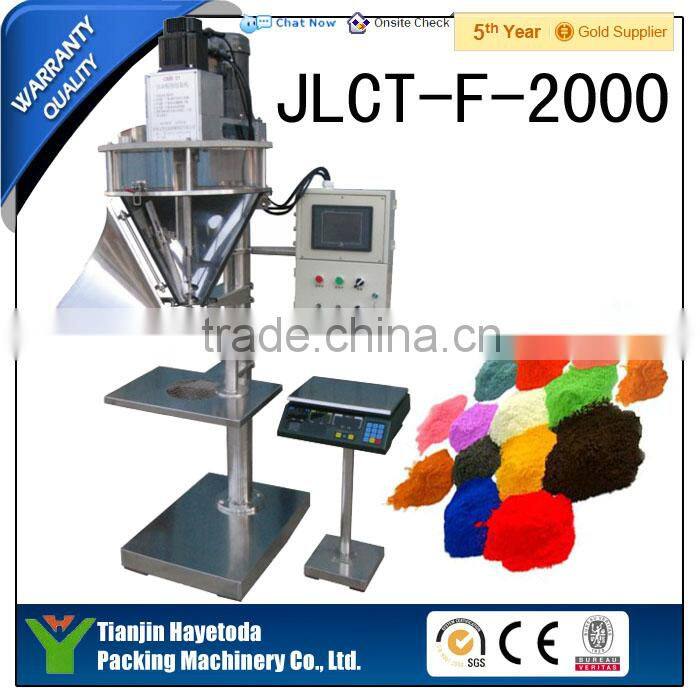

"JLCT-F-2000 Semi Automatic Powder Filling Machine" is suitable for measuring and filling powder in food, chemical, medical industry. This "powder filling machine" measures powder in the volume of screw rotation, which driven by stepping motor, it has high measuring accuracy and easy to operate. This "Powder Quantitative Filling Machine" can manual adjust the filling time by foot pedal switch. In order to prevent dripping, the screw will instantaneously reverse at the end of the blanking everytime via the screw reverse function.
Product Range
This filling machine can filling milk powder, starch, washing powder, spices, flour, soybean milk powder, and etc.
Machine Parameters
Machine name |
Semi automatic powder filling machine |
Model |
JLCT-F-2000 |
Metering methods |
Screw Metering |
Working methods |
Foot switch |
Mode of operation |
Manual control |
Filling Range |
2-5000g |
Filling rate |
10-40pcs/min |
Filling accuracy |
±1% |
Power supply |
380/220V 50-60HZ |
Power |
1.5kw |
Overall weight |
180kg |
Dimensions |
1000×650×1900mm |
Product Advantage
1. Two Ways to Control the Filling:

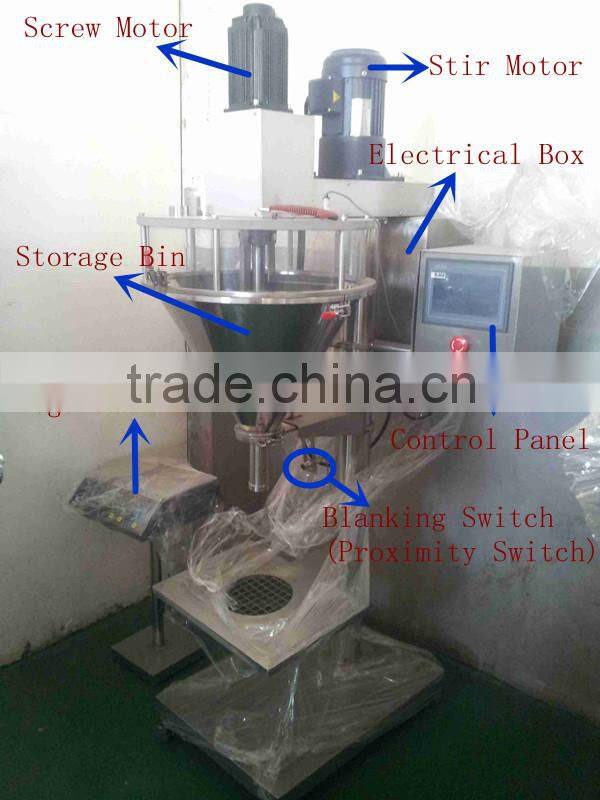

a) Set the filling range on the control panel, and than use hand to touch the proximity switch.
b) Use foot pedal switch to control the filling time manually.
2. The screw reverses function:
The screw will instantaneously reverse at the end of the blanking everytime, to prevent the powder dripping from the discharge hole.

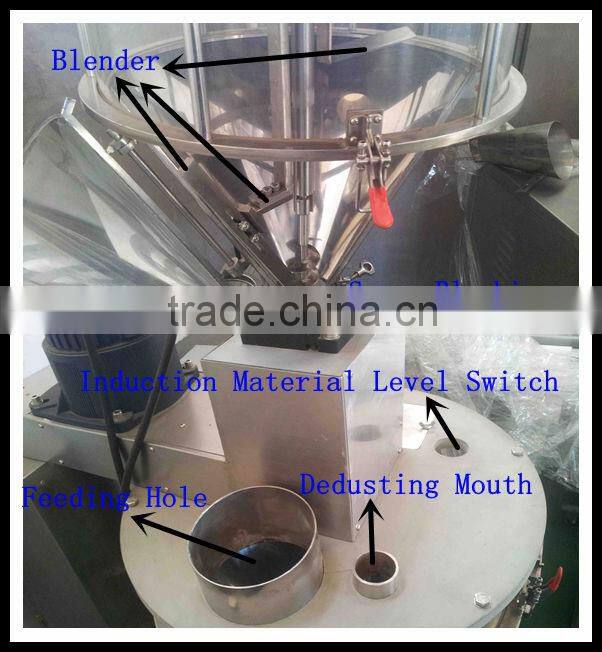

3. Induction Material Level Switch:
If you buy a "feeding machine", then we can connect the "feeding machine" to "induction material level switch". When the powder in the storage bin is low, the "induction material level switch" will give a signal to the "feeding machine", and the "feeding machine" will automatically feeding the powder into the storage bin.

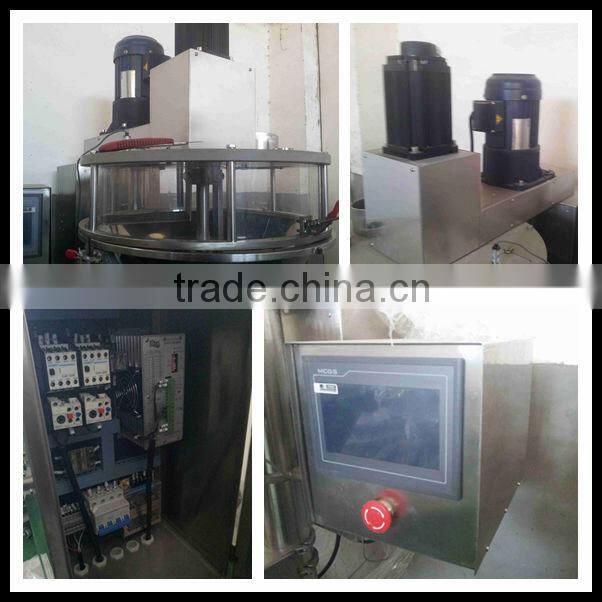

4. PLC Control and Touch Screen
Programmable Logic Controller (PLC) is better than the Peripheral Interface Controller (PIC), PLC has powerful
computing capacity, therefore it controls the stepping motor more accurate.
Instead of using buttons to control, we equip the "powder filling machine" with touch screen, compare with buttons the touch screen is convenient and fast to adjust the filling range.
5. Automatic Regulator (Electric Scale):
This "automatic regulator" can help the PLC to adjust the filling range by continuous weighing 3 bag's weight. If the bag's weight is not right, the PLC can adjust the speed of the rotation of the screw to meet the right weight.
Open-able stock bin (No need to take the stock bin down for cleaning and maintenance):
Feature:
- Can clean the corner within ten minutes at any time.
- Can adjust the stirrer’s position, which can make the powder’s accuracy achieve best.
- Can maintain stirrer, metering screw, long axis parts conveniently.
Under the high precision processing technical, the motor, long axis, hopper, metering screw, and filling cup works highly synchronize.
Feature:
- Improve the operation efficiency.
- Reduce the wear and tear of metering screw.
- Greatly reduced the moving of metering screw’s center when machine moving, cleaning, long time operation.
- Measuring cup and hopper is adopted fast clamp connection; it is easier to setting.

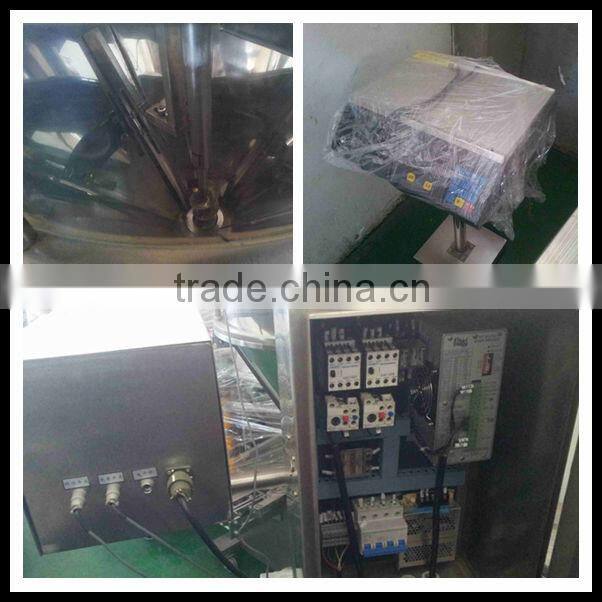

Product Detailed Pictures
Sample
We can express the finished bag sample to our client, to let our client to have a close look at the finished bag.
This can help our client to have a better understanding of the performance of the machine they are going to buy.
Customized Machine

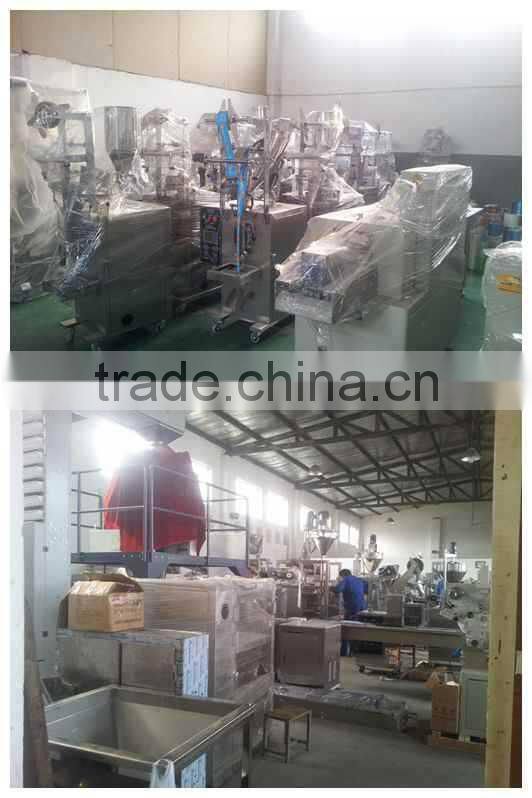

Our factory can produce granule, powder, liquid, sauce, and tea packing machine.
If the client want change the machine to meet their need, we can change the machine for you.
We can make Non-standard machine to meet our client's need.
After-Sale Service
We have 1 year guarantee for the machine. If any thing broken in 1 year, we can change the broken part free.
Our engineers are available to servece machinery overseas.
Our after-sale department will be solve our client's problem on the machine at the first time when our client has problems on the machine.
1. Ask: How can I know which machine is suitable for me?
Answer: Pls inform us below information.
- Your Packing Material? Description and Pictures. (Granule, Powder, Liquid, Sauce, Tea)
- Your Packing Bag’s Filling Range (ml) in volume and in weight(g)?
- Your Packing Bag’s size? Length and Width.
- Your Packing Bag’s Packing Way: a)Three Sides Sealing b)Four Sides Sealing c)Back Sealing.
