Specifications

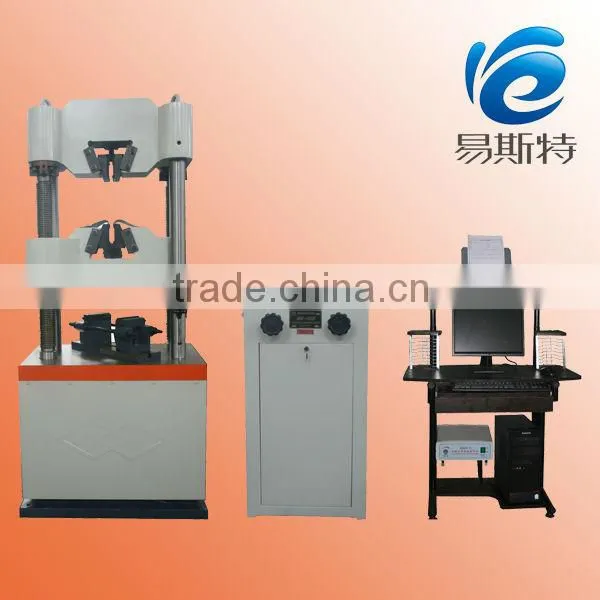

WEW is computer displayUTM Micro-computer
hydraulic unviersal testing machine,
use for metal and
nonmetallic materials.
WEW-1000B UTM Micro-computer Display Hydraulic Universal Testing Machine
WEW-1000B UTM Micro-computer Display Hydraulic Universal Testing Machine
Applications:

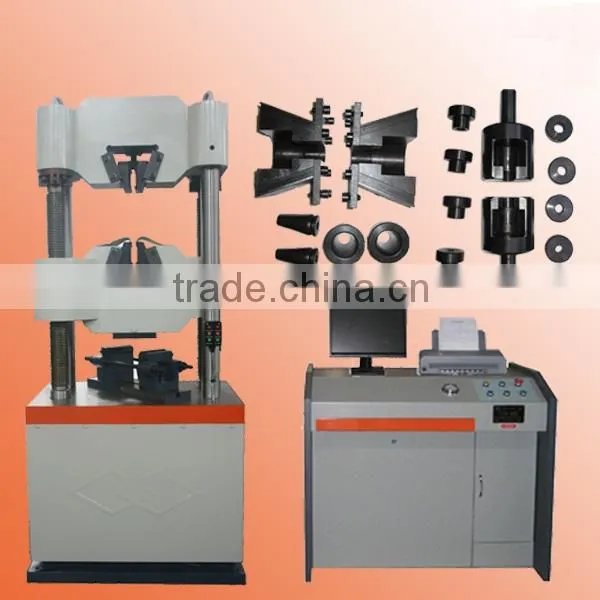

1.UTM this hydraulic universal material testing machine

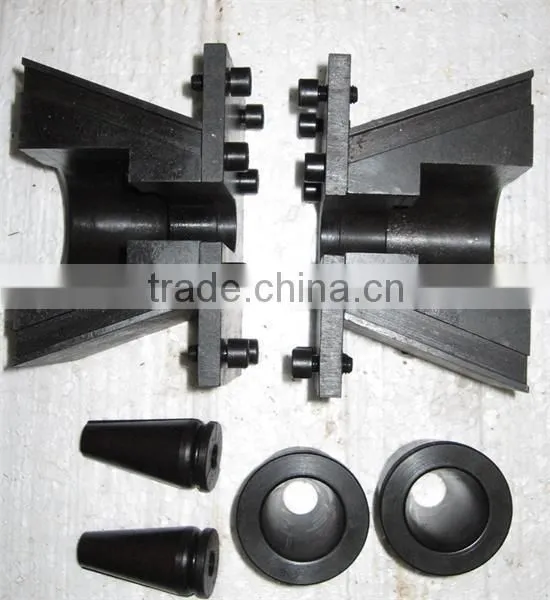

can to do tensile testing .compressin testing .bending testing ,we supply these grips as standard grips

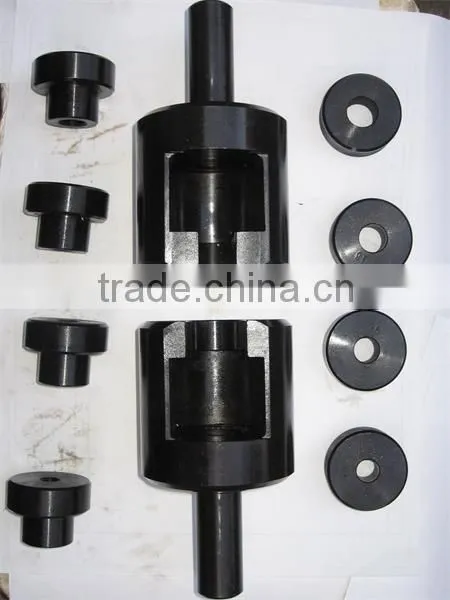

2.optional accessories:grips for bolt .grips for steel strand,grips for shear
3.all testing date and curve will been showed by computer print by printer,save by computer
4. this UTM can automatically seek the multiple
technical parameters such as elastic module E, upper yield strength Reh, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength RM, stipulated total elongation intensity Rt, yield point percentaege elongation etc.
Main technical parameters for
WEW-1000B UTM Micro-computer Display Hydraulic Universal Testing Machine
Model & specification |
WEW-600B |
WEW-1000B |
WEW-2000B |
Max. test force (kN) |
600 |
1000 |
2000 |
Measuring range (kN) |
2%-100%FS Can improve range to 0.4%-100% FS |
||
Relative error toforce value (%) |
≤±1 |
≤±1 |
≤±1 |
Distance between compression surfaces (mm) |
0-660 |
0-660 |
0-1000 |
Max. distance between tensile jaws (mm) |
0-700 |
0-700 |
0-1000 |
Bending test pressed rolling distance (mm) |
30-600 |
60-700 |
60-750 |
Clip diameter of round sample (mm) |
Φ13-Φ40 |
Φ20-Φ60 |
Φ20-Φ70 |
Clip thickness of flat sample (mm) |
0-30 |
0-40 |
0-40 |
Width of flat plate specimen (mm) |
≤70 |
≤80 |
≤110 |
Size of shearing specimen (mm) |
0-Φ20 |
0-Φ30 |
0-Φ30 |
Effective distance between the pillars (mm) |
565 |
650 |
700 |
Piston stroke (mm) |
200 |
200 |
250 |
Motor power (kW) |
2.2 |
2.5 |
3.0 |
Main frame outline dimension (mm) |
890×600×2210 |
1010×700×2400 |
1100×760×2700 |
Oil source control cabinet outline dimension (mm) |
580×480×1000 |
580×480×1000 |
580×480×1000 |
Weight (about) (kg) |
2600 |
3500 |
4500 |
