Specifications
this CNC equipment frame is designed with advanced solutions with resin casting iron body,it is precise and rigid.

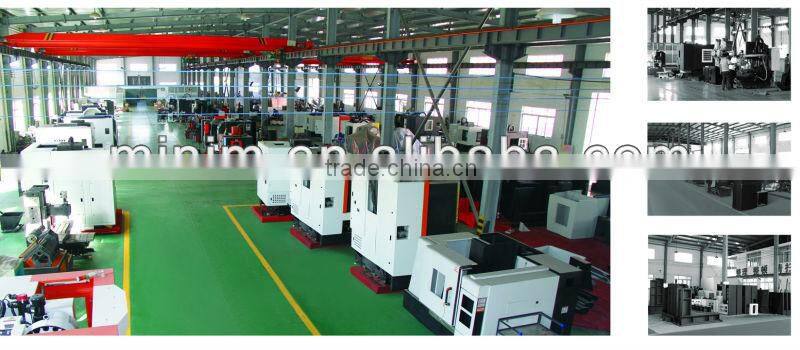

We, Tengzhou City Good CNC Machine Co., Ltd. are professional supplier and experienced manufacturer CNC mill machine in China, especially specialize in developing and manufacturing CNC milling machines.
Products: Mini CNC Milling Machine, Machining Centers, Machining Tools DIY CNC Low Cost CNC Small CNC Desktop CNC Milling CNC Benctop CNC CNC Machine Machine tool CNC machining CNC milling Conventional milling Universal milling CNC machine CNC machine center, CNC machine, CNC Machine Tools CNC VMC Series milling machine.

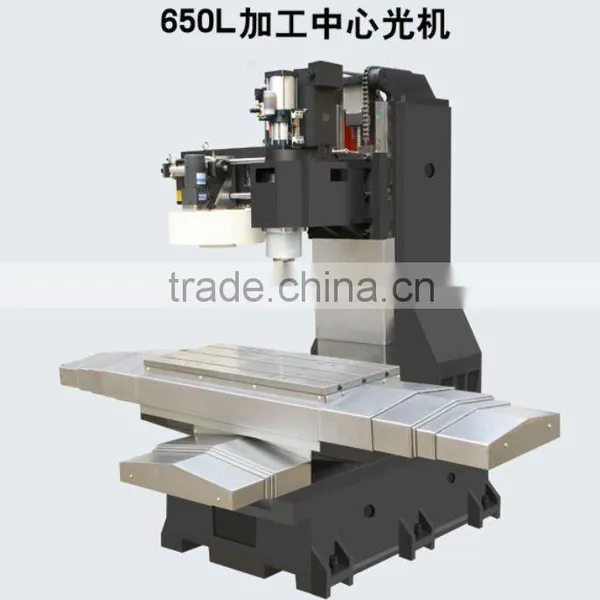

CNC equipment VMC650L frame

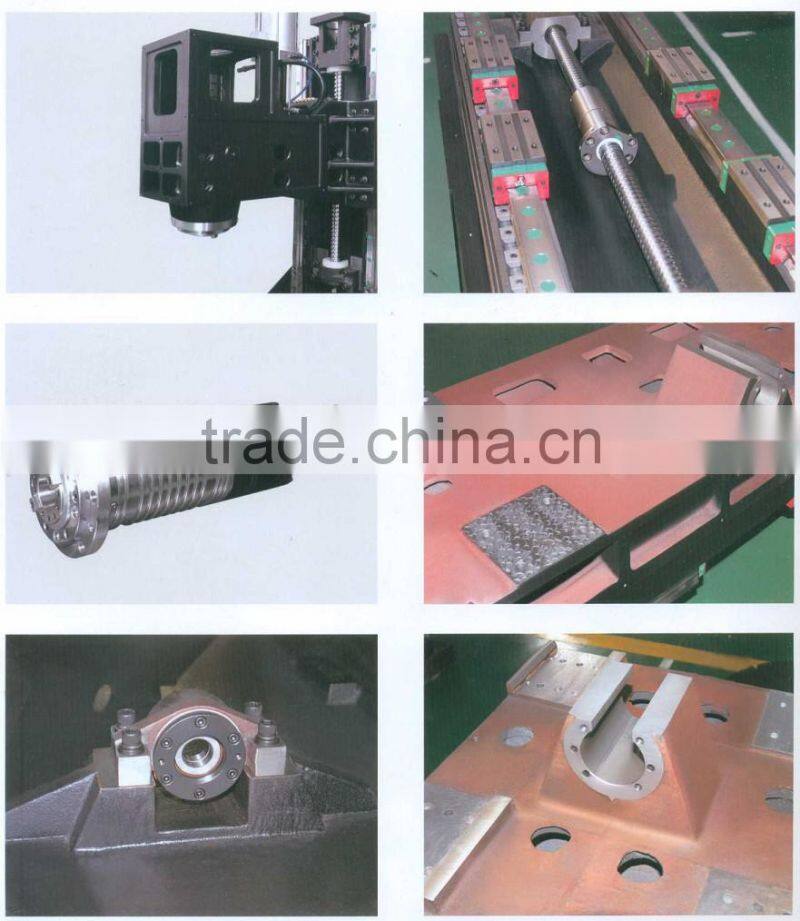

Standard fittings:
Taiwan-made spindle
Highly rigid resin sand casting
Taiwan-made linear guideway
Precise ball screw
Taiwan precise cap nut

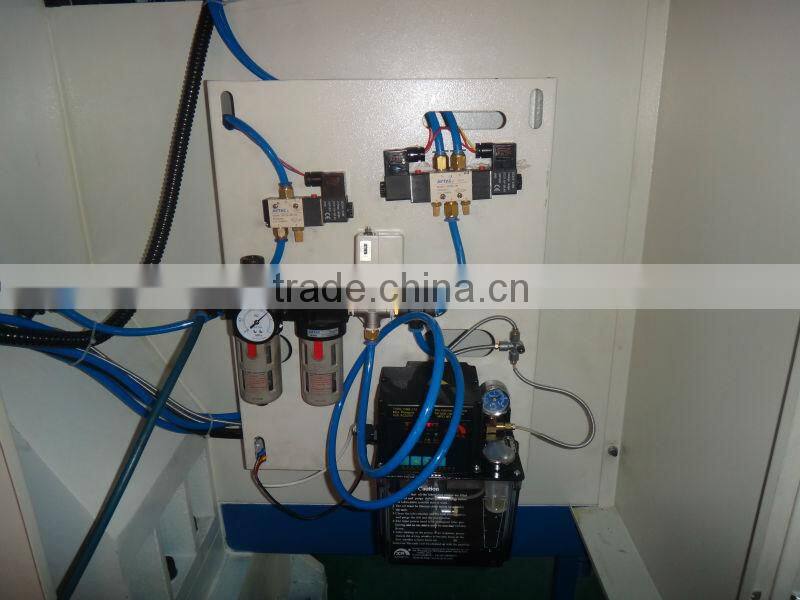

Automatic intermittent lubrication system
Adjustable horn
Japan NSK bearing
NO. |
ITEM |
Specification |
|||
1 |
Table size L(mm)×W(mm) |
900×360 |
|||
2 |
T slot QTY /width/interval distance(mm) |
3-14-120 |
|||
3 |
Maximum load(KG) |
400 |
|||
4 |
X travel (mm) |
650 |
|||
5 |
Y travel (mm) |
380 |
|||
6 |
Z travel (mm) |
480 |
|||
7 |
Spindle nose to table (mm) |
100-600 |
|||
8 |
Spindle center to column (mm) |
410 |
|||
9 |
Spindle taper |
BT40/120 |
|||
10 |
Max. spindle speed (Rpm) |
8000 |
|||
11 |
Main motor (kW) |
7.5 |
|||
|
12
|
Feed motor
|
X torque(N.M) |
6 |
||
Y torque(N.M) |
7.7 |
||||
Ztorque(N.M) |
7.7 |
||||
Max. install size |
7.5 |
||||
13 |
Rapid moving speed (m/min.) |
12/12/10 |
|||
14 |
Cutting speed (mm/min) |
1-6000 |
|||
15 |
Ball screw (diametermm/pitch )mm |
32/10 |
|||
17 |
Accuracy
|
Positioning accuracy (mm) |
0.016 |
||
Repeatability accuracy (mm) |
0.008 |
||||
18 |
Tool changer |
Funnel type (optional ) BT40 |
10 or 12 |
||
19 |
Air pressure Mpa |
0.6 |
|||
20 |
Machine weight (kg) |
Frame |
2500 |
||
Complete machine |
3000 |
||||
21 |
Machine overall size : L(mm)×W(mm)×H(mm) |
Frame |
2200×1550×2000 |
||
Complete machine |
2500x2250x2300 |
||||
