Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > VMC Small Cnc Milling Machine Frame

VMC Small Cnc Milling Machine Frame

Name: VMC Small Cnc Milling Machine Frame
Brand: Good
SKU: 111606703
Availability: InStock

VMC Small Cnc Milling Machine Frame thumbnail-1

VMC Small Cnc Milling Machine Frame photo-1

US$ 1 - 14,500 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Place of Origin:

Shandong, China

Brand Name:

Good

Contact Supplier Request Quote Chat Now

Tengzhou City Good CNC Machine Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Place of Origin Shandong, China

Brand Name Good

Model Number V5

Type Vertical

CNC or Not CNC

Voltage 380/220

Dimension(L*W*H) 2100*1800*2400

Weight 2200KG

Certification ISO9001

Warranty 12months

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Taiwan spindle ,Taiwan linear guide way,Taiwan ball screw
2. ISO9001certification 3. 12months warranty

The small cnc milling machine frame V5:

the small cnc milling and boring machine frame is made of GB300 resin sand casting,thus the machine body has a good rigiduty,the wide guide rails have excellent wear-resistan performance,extra-wide base and column can ensure good precision and stability.it's suitable for completing drilling,milling,tapping,expanding,boring and other processes.

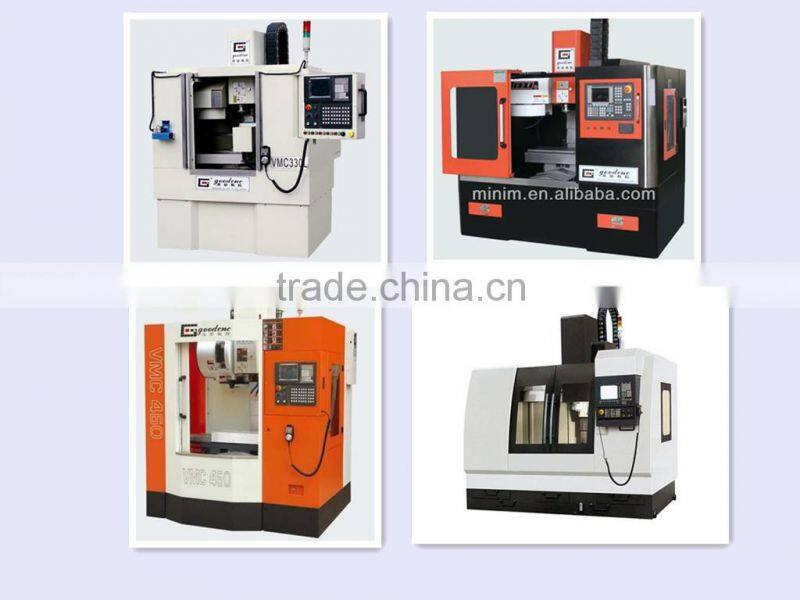

Small cnc milling machine series:

V5 Main parameters:

TRAVEL
X-AXIS	550mm
Y-AXIS	400mm
Z-AXIS	500mm
Spindle nose to table	100-600mm
Spindle axis to column	467mm
FEED
X rapid feed speed	48m/min
Y rapid feed speed	48m/min
Z rapid feed speed	48m/min
Cutting feed	1-10m/min
XYZ servo motor torque	X:8N.m Y:8N.m Z:12 N.m
Work table
Work table size	800×400mm
Max.load	300Kg
Working from the ground surface height	Around 800mm
T-slot	3×14×125mm
spindle
optional	Belt type	Direct type
speed	8000 rpm	12000 rpm
Spindle taper	BT40	BT40
Motor power	7.5/11KW	5.5/7.5KW
accuracy
Positioning accuracy (JIS)	±0.005/300mm
Repeat positioning accuracy(JIS)	±0.003mm
other
Frame weight	Around2200Kg
Machine overall dimension	Around2100×1800×2400mm

Features of vertical cnc milling machine frameV5:

1.Able to mill steel,copper,aluminum,wood and plastic

2.Able to continuously complete drilling,milling,tapping,boring,expanding and other processes.

3.Is applicable to processing plate,board,shell mold and small complex parts

4.The complete machine is with full enclosed housing,lubrication system,coolant system and controller

5.The frame machine is with lubrication system,without coolant system,without controller,without ant electric parts.

6.Taiwan P4 grade spindle,Taiwan linear guide way,Taiwan C3 grade ball screw

7.With 16 tools funnel type automatic tool changer.

8.XYZ are all servo motor,Y axis servo motor is on the back side.

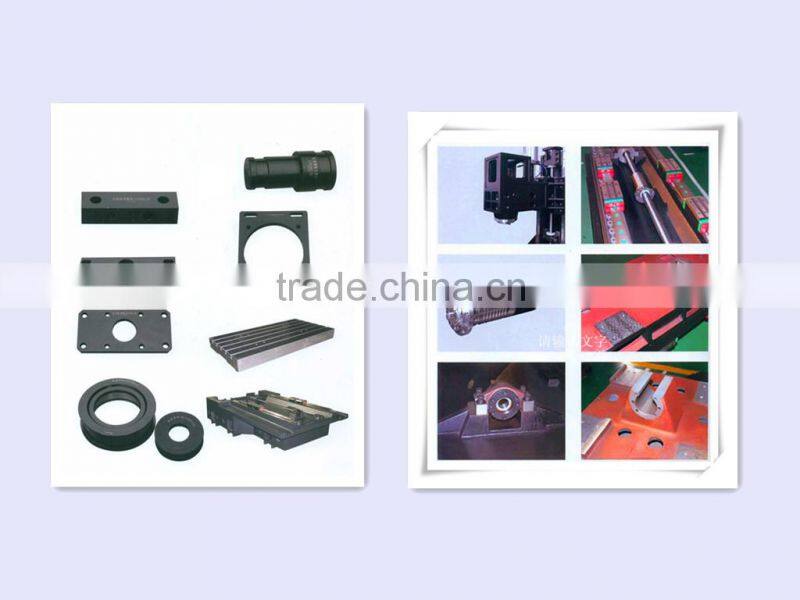

Basic component parts:

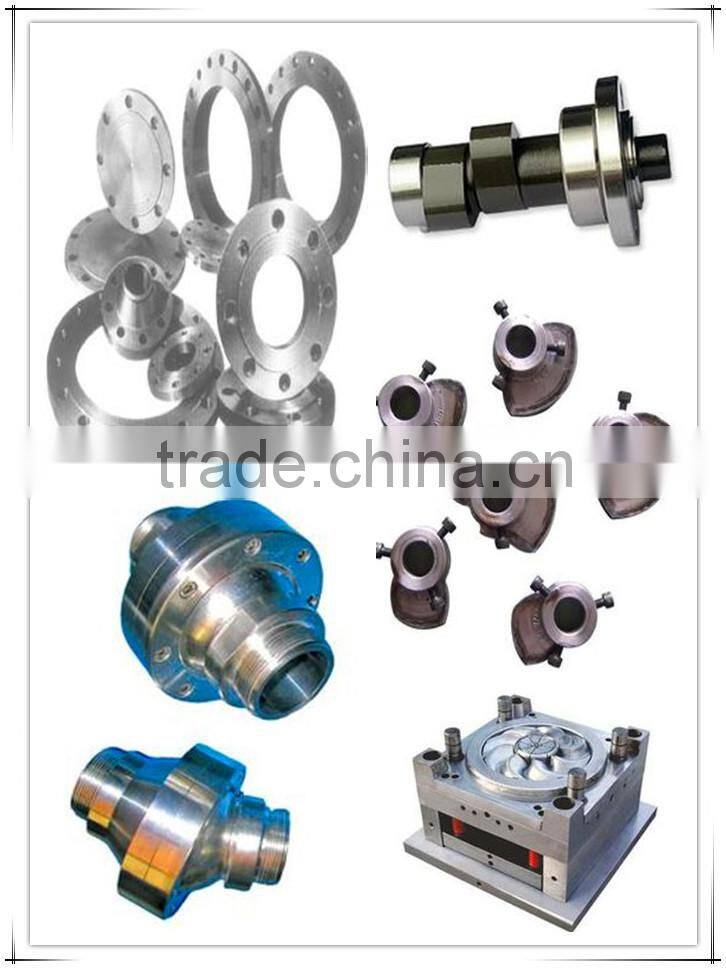

It can process products as follows:

The company profile:

We, Tengzhou City Good CNC Machine Co., Ltd. has been a professional supplier and experienced manufacturer CNC mill machine from China, We especially specialize in developing and manufacturing CNC milling machines. and we have established GOOD brands which is popular among customers both at home and abroad.
Good CNC covers an area of 10000 square meters with independent R&D. there are 100 staffs including 10 technicians and engineers. We are dedicated to the ongoing cnc milling design solutions. to guarantee the quality, we manufacture cnc milling machines and milling machines with carefully inspected raw materials and advanced manufacturing equipments.with the integration of Taiwan and Japan technology and well trained workers, our products have achieved a good reputation and well-known performance among customers. our machines have been widely used all over the world. involved in the globalization, we are also offering OEM services to customers. we can manufacture and develop products according to clients needs. our continuous development will assure everything perfect.Providing excellent machines and offering perfect services and after-sales services.

Company honors:
