Home > Manufacturing & Processing Machinery > Rubber Machinery > Rubber Product Making Machinery > Rubber Injection Machine/rubber Vulcanizing Press/vulcanizer
Rubber Injection Machine/rubber Vulcanizing Press/vulcanizer
US$ 4,888 - 24,889
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Goworld
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Conveyor Belt Hot Vulcanizing Machine/steam q Iron PriceUS$ 5,000 - 24,800MOQ: 1 Set -
Six-column Vulcanizing Machine Made in Qingdao China/rubber Machine ManufacturerUS$ 4,900 - 22,000MOQ: 1 Set
-
Oil Seal Trimming Machine / Rubber Vulcanizing MachineUS$ 2,000 - 70,000MOQ: 1 Set
-
Qingdao Goworld Rubber Plate Vulcanizing Machine/rubber Vulcanizing PressUS$ 1,999 - 3,999MOQ: 1 Set
-
Steam Heating 50 Ton Medical Rubber o Ring Vulcanizing Press With Adjustable Rail DeviceUS$ 10,000 - 20,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
Goworld
Model Number
XLB
Voltage
380V
Power(W)
3KW/4KW
Dimension(L*W*H)
customize
Weight
customize
Certification
CE ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Products show

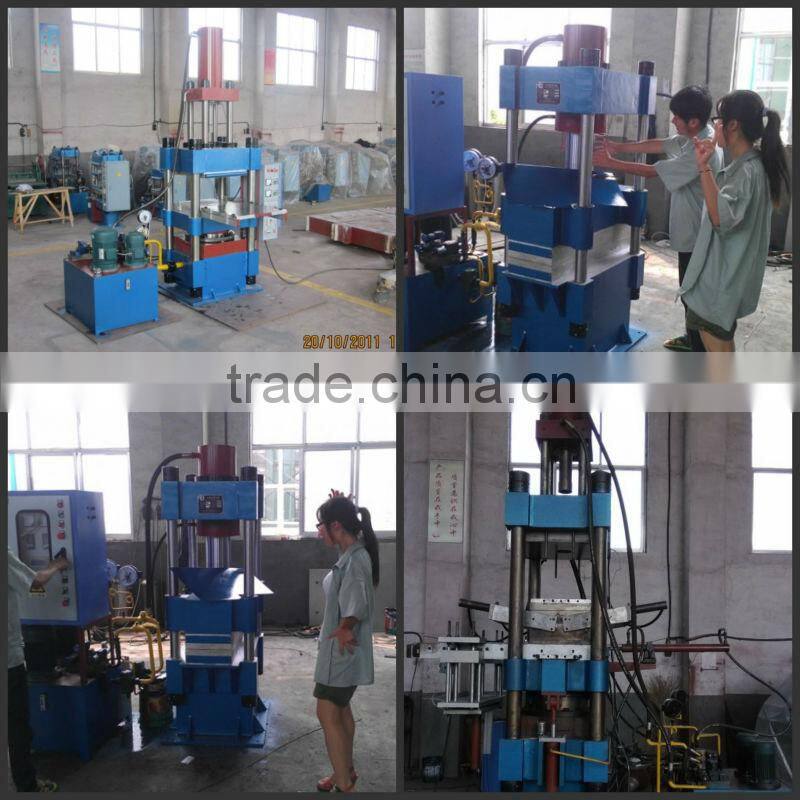

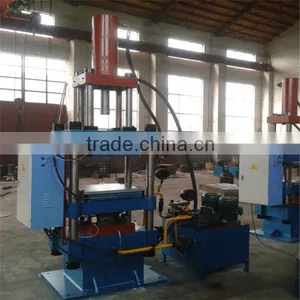

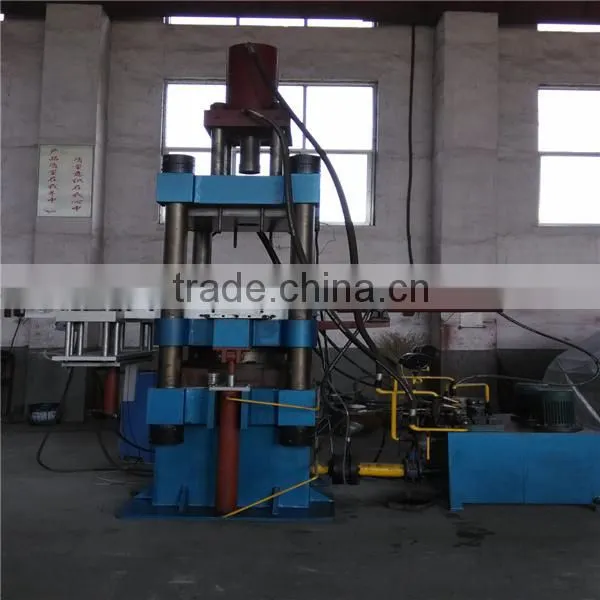

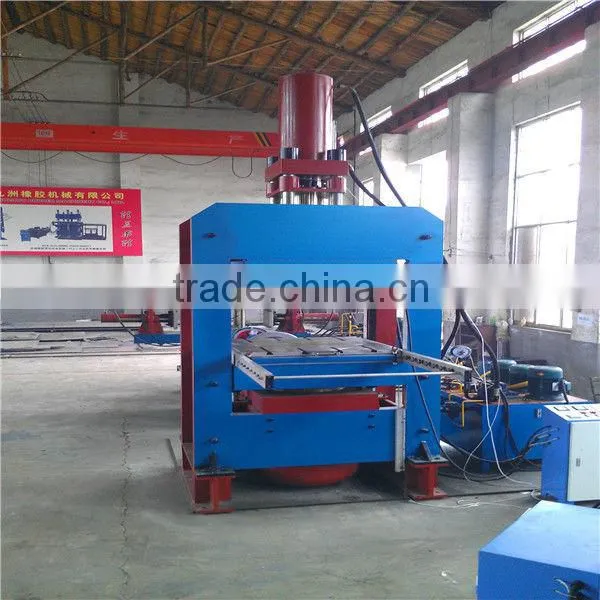

| Pictures of rubber injection moulding machine |
| Technical Parameter of rubber injection moulding machine |
Item |
CRI-1500 |
Clamping force (kN) |
1500 |
Heating Plate Size (mm×mm) |
500×500 |
Heating Plate Space (mm) |
400~500 |
Theoretical Injection Capacity (cm3 |
1000 |
Screw Diameter (mm) |
Φ40 |
Screw Rotational Speed (r/min) |
0~120 |
Plunger Diameter (mm) |
Φ60 |
Injection Pressure (MPa) |
170 |
Mould Opening Stroke (mm) |
400 |
Motor Power (kW) |
7.5+5.5 |
Heating Power (kW) |
12 |
External Dimension(L×W×H) |
2600×1900×4000 |
Weight (kg) |
8000 |
Oil Tank Capacity (L) |
380 |
CRI Series rubber injection molding machine is advanced rubber molding machine, its structure is compact with wide applicability, high efficiency and high yield. Especially it is suitable for the rubber products of complex shapes, exhausting difficultly, difficult to molding .
| Features of product |
1.Standard configurations are the entire computer, the electro-hydraulic proportional control system, high degree of automation, special configuration for users with computerized frequency conversion power- saving control system. These series products are high efficiency, power-saving, stable and reliable.
2.Injection volume and the stroke of mould-open&close can be calculated and controlled precisely by electronic ruler , mould-open&close is a multi-polar speed regulation.
3.Injecting, preplasticating screw and feeding cylinder are nitrogen treated, with abrasion resistant.
4. Heating plate uses cast aluminum overall heating, computer PID control, precision temperature; injecting, preplasticating feeding cylinder use hot oil heating method, stable and even.
5. Infrared light screen protection devices ensure operation safe.
6. Equipped with moving mould, ejection , mechanical tip and core devices.
7.Applicable line:uto Rubber Parts, Body Rubber Parts,Rubber Boots for Cables,Hydraulic Seals,Engine Mountings,Anti Vibration Mountin.
Product Line :
Packing & Shipping :
Our Certificate :
Welcome to contact us :
