36w 12v plug-in led driver laptop power adapter
- 300000 Piece / Pieces per Month
- xiamen
- Credit Card
You May Like
-
12v 48w ac to dc laptop power adapter for computer
-
12v 60w switching adapter the power adapter for cctv
-
12v 90w laptop power supply desktop power adapter
-
12v 100w ac dc laptop power adapter desktop power supply
-
12v 120w switching power adapter for cctv with single output
-
12v 24v EU standard AC plug wall-mount power adapter
Product Details
Place of Origin | Fujian, China | Brand Name | SMARTS | |
Model Number | SMT-012-036VP | Output Power | Other, 36w | |
Output Type | Single | Input Voltage | Other, 100-240VAC | |
Output Voltage | 12V | Output Frequency | 47-63HZ | |
Output Current | 3A |
Product Description

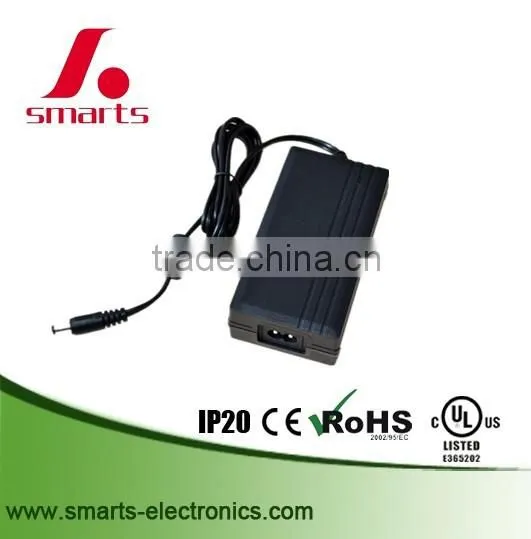

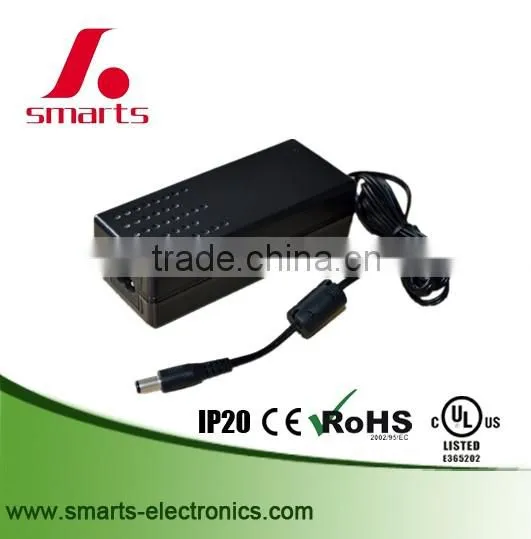

36w 12v plug-in led driver laptop power adapter
Specifications:
- Modle: SMT-012-036VP
- Input:100~240vAC / 47-63HZ
- Output :12V @3A 36W
- Energy transfer: AC-DC
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Plastic housing
- Waterproof rate: IP20
- DC connector:5.5*2.1*10mm
- CE, UL&CUL, ROHS approval
- DC cord:1.2m EU/UL standard cord with male plug
- 18 months warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment:
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
parameter:
ITEM NO | Input Voltage(vAC) | Frequency range(Hz) | Output voltage(vAC) | output Current(A) | output Power(W) | Working Temp('C) |
SMT-012-036VP | 100-240vAC | 47-63Hz | 12V | 3A | 36W | -20-50'C |
SMT-012-009VP | 100-240vAC | 47-63Hz | 12V | 1A | 9W | -20-50'C |
packaging & shipping
inner box-white box + outer carton- standard exporting carton for packing
l We are UL/cUL audited LED drivers/power supplies enterprise in China.
l Alibaba assessed 6 years Gold Supplier and more than 10 years LED industrial
experience. It will guarantee your order 100% safe!
l Price is negotiable if you have large quantity demand.
l 100% QC inspection Before Shipping.
l Best Quality & Best Service with Competitive price.
l Shipping will be the most economical for you and freight cost is informed in advance
for your consideration.decision for the shipping terms will be made according to your requirements.
l We have our engineer team, if you have any question about your LED applications,
let us know freely, we will give you the best solution.
l Our trade manager is online 12 hours. and we will reply your inquiry within 8 hours.
l OEM design & OEM packing welcome.
l Samples will be ready within 7 working days
Quanzhou Smarts Electronic & Technology Co.,Ltd (SMARTS INDUSTRIAL (HOLDING) CO LTD) was founded in 1998. The company is located in a developed economy, abundant resources, beautiful scenery of Quanzhou city Licheng district town pontoon, the company has an area of 2000 square meters, production workshop, warehouse, office, living facilities complete with. With the development of society, human increasing awareness of "green energy, environmental protection, save energy" becomes... View detail website:
our team:
certifications:
CE, UL/CUL, ROHS approval.
factory & equipments view:
Q1. What's type power supply do you have?
Answer: We specialized in constant voltage & current LED drivers,
0- 10v/triac/DALI dimmable led drivers, enclosure power suppliers, power adapters
Q2. What's shipping mode can we choose?
Answer: 1.FedEx/DHL/UPS/TNT/Express for samples;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping method
Q3. What's the MOQ?
Answer: Our MOQ is 500pcs, but we accept your trail order/small order, no problem.
Q4. What can you do if the product is broken?
Answer: We promise to replace new ones to you if there is any defective happen
during the warranty period, but we need pictures or video to prove the defective
comes from our quality problem
Q5. How about the protection of product?
Answer: Most of our products have protection of short-circuit. overload,
over voltage, over current and reserve polarity. About the specific product,
please consult our salesstuff.
Q6. How about the transportation?
Answer: For small order,express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air to airport plus our ship partner send to your door.
We will cooperate with your choice.
Q7. What's the Payment do you have?
Answer: To assure you the maximum comfort and satisfaction, Currently, you can pay via T/T, L/C,
WESTERN UNION, PAYPAL. More payment options will be added in the near future
