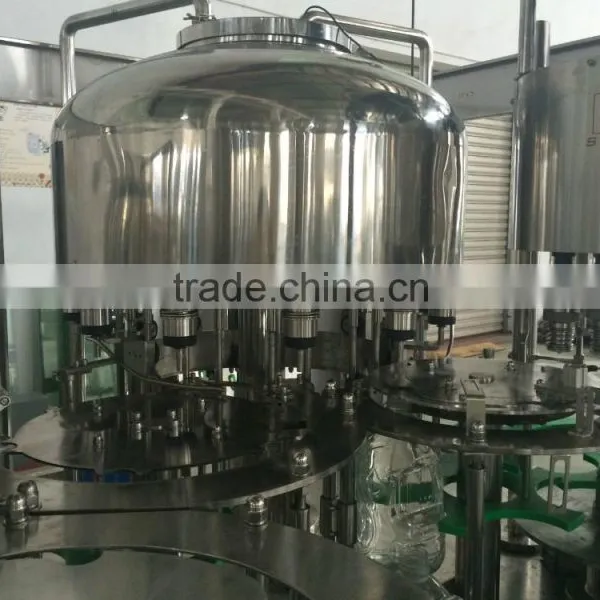

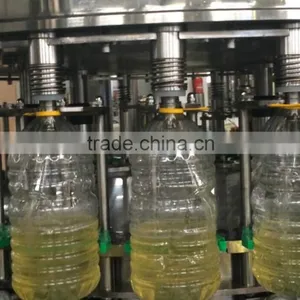

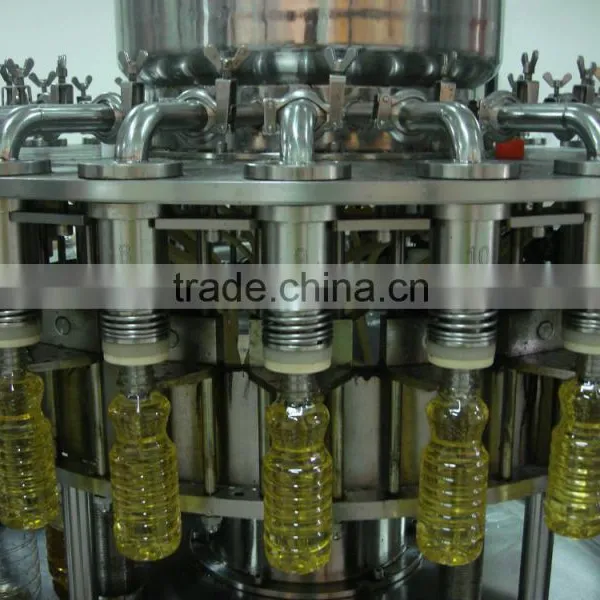

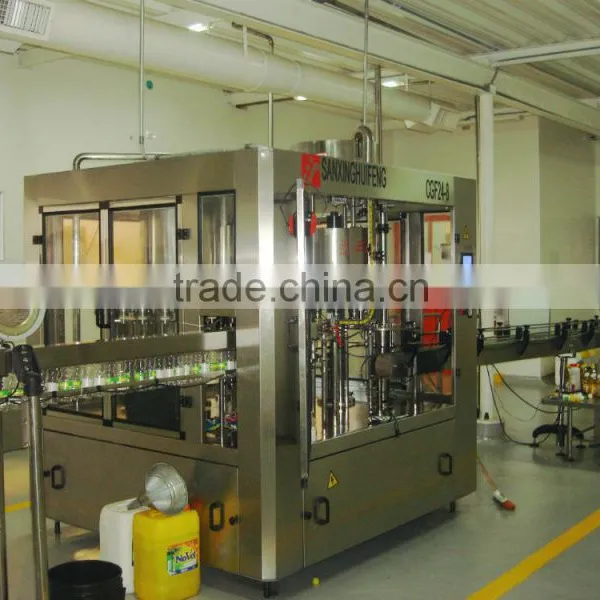

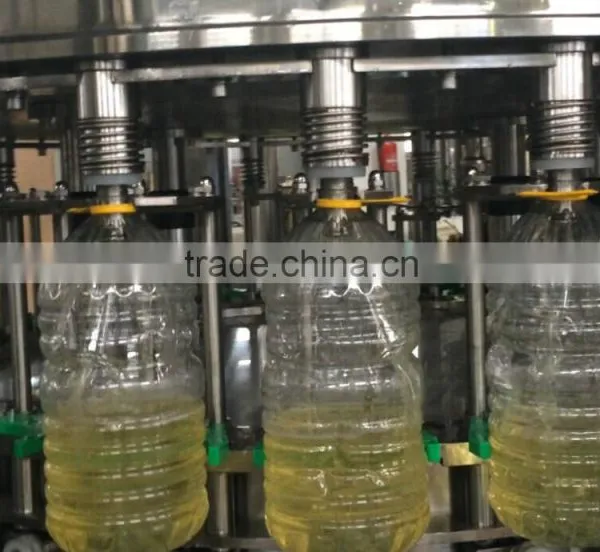

Help CenterOlive Oil Filling Machine
Related Products
Specifications
olive oil filling machine,cooking oil filling machine,
vegetable oil filling mchine
Olive oil filling machine, soy source filling 2 in 1 machine, vegetable oil filling machine, rotary filler
This machine only has filling and capping 2parts it suit for the detergent, juice, beer, oil and the other liquid material filling and capping
This machine only has filling and capping 2parts it suit for the detergent, juice ,beer, oil and the other liquid material filling and capping
Feeding conveyor:
1 easily to change the bottle shape
2. Rise the speed
3. Connect the bottle feeding part
4. Could add the bottle stopping device
5. Air conveyor for the plastic bottle, screw conveyor for the glass bottle
Filling parts
1. No bottle no filling
2. Same filling level of all the bottles, adjustable filling level
3.Filling precision ≤±2mm
4. Vacuum filling method
5. No dropping
Capping part
1.PCO ,plastic cap, metal cap, aluminum cap
2.no bottle no capping
3.two sensor to check, PLC control
4.no full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
Lamp checker
Clearly to see the filled bottle
Vacuum tank and pump
Because the liquid contains the foam , so not only the valve has the degas feature, we also need the fit the vacuum pump and tank, to suck all the foam from the liquid , and send to the vacuum tank through the vacuum pump
Electrical apparatus
PLC/ transducer/ touch screen: siemens
Contactor/ air switch/ stabilized voltage supply: Schneider
Photo electricity/ proximity switch: Atonics
Cylinder: Air tack
Model: |
OXGF12-4 |
OXGF18-4 |
OCGF24-4 |
OXGF32-6 |
Capacity |
1000 |
2000 |
3000 |
5000 |
Suitable Bottle:(mm) |
3L 5L |
|||
Power: (W) |
2.2 |
3.84 |
3.84 |
5.6 |
Total Weight:(kg) |
2500 |
3000 |
4000 |
5000 |
Suitable Cap: |
φ50-φ110 (mm) |
|||
Filling Pressure: |
0.2-0.3 Mpa |
|||
Filling Temperature: |
Room Temperature |
|||
