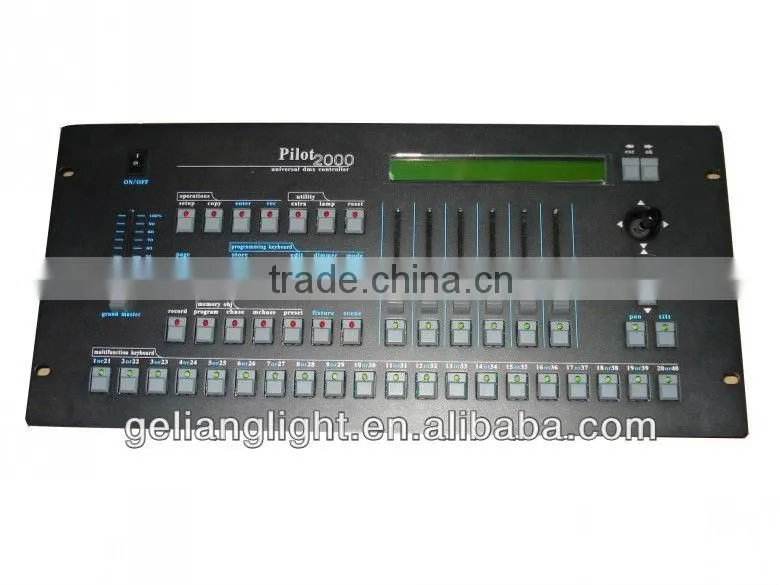

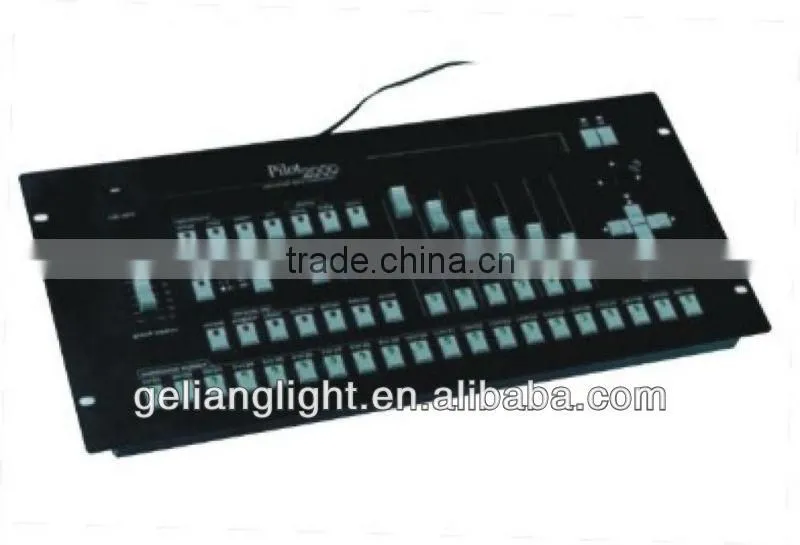

DMX controller Pilot 2000

DMX controller,stage light controller,Pilot 2000

New Pilot 2000 universal lighting controller is one of the results of our long experience in the manufacture
of this type of control equipment, and is able to control 512 channels using DMX 512 protocol, of which a
maximum of 192 channels can be set as dimmer channels and the rest reserved for 40 intelligent Fixtures
using up to a maximum of 36 channels each (the channel limit obviously remains 512).
The quality and design are those the trade has come to expect from SGM and the sophisticated elec-tronics
used, combined with ground-breaking performance, places this Fixture at the top of the best inter-national
products. Careful in-depth study of the functions, an on-going search for innovative materials, technical
updating and constant research aimed at even greater safety have led to the realization of this unique product.
This Fixture’s structure and electronics were entirely designed by our R&D lab, ensuring we have comple-te
command of the know-how and the best possible quality:price ratio.
Like all other SGM products, before being put on the market these boards underwent a lengthy burn-in
period, passing the strict tests with brilliant results: further proof of their high quality and reliability.
Great care taken with the lines and optimisation of the external structure to ensure utmost user-friend-liness,
enable them to be easily installed and facilitate any necessary maintenance work to the utmost.
The Pilot 2000 is built in compliance with current CE norms.

1.2 Technical Specifications

Power supply               (+12V DC, 1A max.)
Power required            +12VDC, 300mA
Power absorbed            5W
Storage protection       a dipswitch allows programs and/or setup to be protected
Setting                 via dipswitches (for RS-232 and MIDI)
Inputs/Outputs           - DMX IN/OUT via 5-pin XLR-F connector (*) for serial digital return signal;
                        - 6.3mm. stereo jack for up/down Record change pedal;
                        - 3mm. unbalanced stereo jack for audio IN - 0dB, mono (or left)

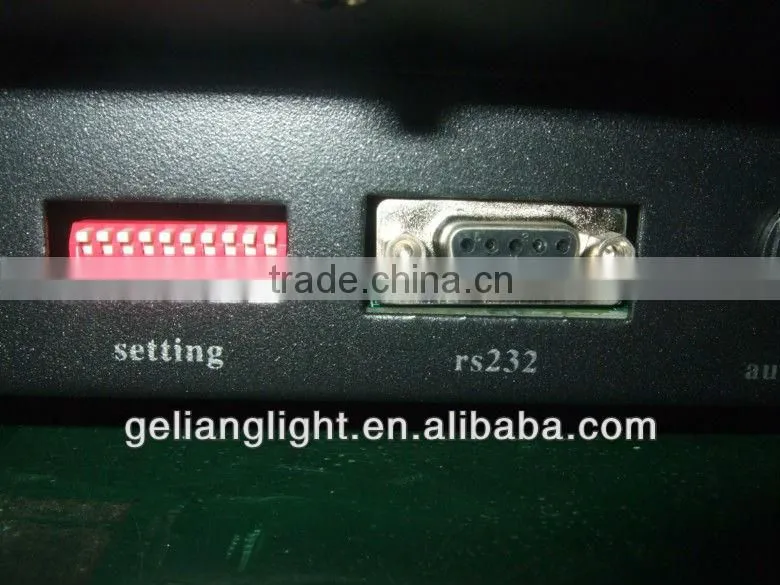

                         - DB9 connector for RS-232 serial connection with a personal computer;
                        - 3-pin XLR-F for SMPTE signal input;
                         -   Standard 5-pin DIN connector for MIDI IN-THRU-OUT.

DMX channels:           512 (max.) configurable for intelligent Fixtures and dimmer channels
Fixture frame               Sheet metal with epoxy powder finish
Dimensions              5u rack 19” (cm 48,2 x 22,2 x 6,5 h max). Peso Kg 3,7

Specifications:

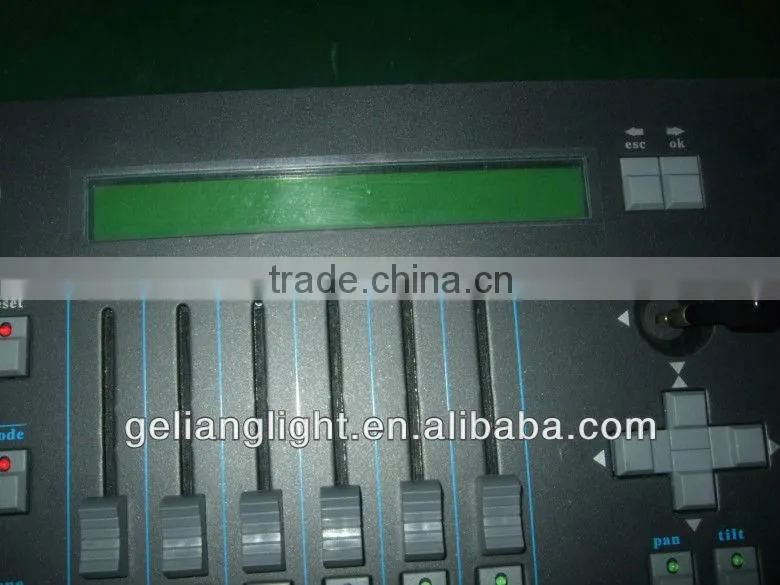

Constant monitoring, the output parameters to a large back-lit display

Using the Scroll function, operators can control blocks of 6 channels at a time.

Thanks to the (editable) internal libraries, it is possible to assign functions to the

faders at will. Physical and logic channels are independent.

Co-ordinate system:absolute and relative. This ensures perfect fixture positioning.

DMX in / out connector, SMPTE socket for changing memories in synchronous and independent

regulation of scene and preset cross fade times.

Audio input and built ¨C in microphone for music sync functions.

MIDI in / through / out connector

Data and memories can be downloaded to a PC.

Jack socket for pedal for stepping up/down through memories.

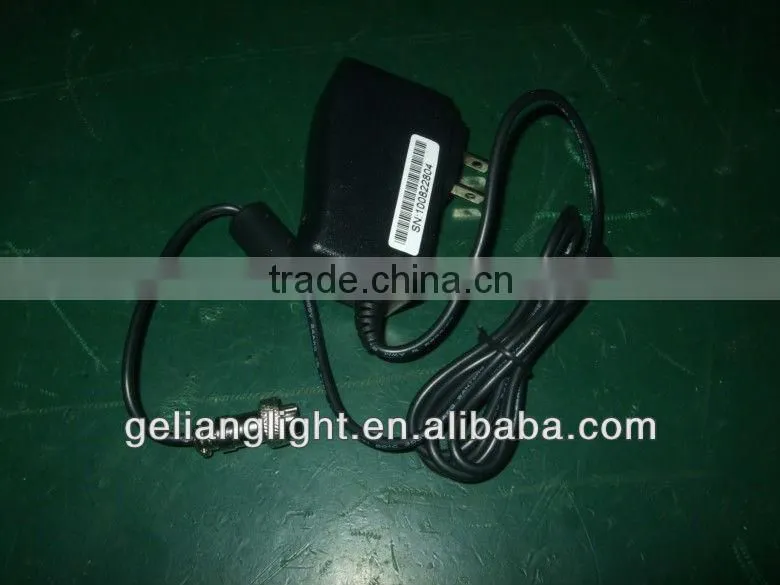

Universal AL4 switching power supply included.

Packing size:600 x 330 x 180 (MM)

Gross Weight:5 KG
