eva foam/eva foam rubber for shoesole material eco-friendly eva foam sheet fitness
Application of EVA Foaming Equipment :
By cold hard surface of the plunger for HR - 70, the product is reliable in pressure and heat preservation, and opening and closing mold speed. Usually it is used in EVA foaming, such as shoe materials.
Feature of eva foaming vulcanizing machine:
1. This rubber brick making machine is used for all kinds of vulcanizing mould, rubber and plastic mould products, and non-mould products.
2. Being a column structure and downward pressing type, the heating plate opens by the self-weight of the heating plate, platform and plunger. The rising of the plunger makes the heating plate close while the hydraulic oil provides the pressure.
3.This engine base is combined together with the cylinder and base frame, which is made of ductile iron to increase the cylinder intensity and anti-abrasion. The cylinder is fitted with the sealing washer made of the oil-resisting rubber for the sealing purpose.
4.By moving the operational handle of the control valve to the two different positions, the heating plate can open and close.
5.It uses the electrical heated tube for heating, thus makes the workshop clean with easy and reliable operation.
6.Each layer is matched with two sets of moulds, so it can be vulcanized batch by batch for better efficiency.
Techinical parameter of eva foaming vulcanizing machine:
Type |
XLBQ 1200/1200*4 |
XLBQ 1400*1500*6 |
XLBQ 1500*1500*6 |
|
Total pressure(MN) |
5 |
8 |
10 |
|
Plate size(mm) |
1200*1200 |
1400*1500 |
1500*1500 |
|
Plate clearance(mm) |
150 |
150 |
150 |
|
Piston stroke(mm) |
500 |
800 |
150 |
|
Plate pressure(Mpa) |
3.4 |
3.8 |
4.5 |
|
Motor power(kw) |
18.5 |
26 |
33 |
|
overall dimension(L*W*H) |
2400*2100*3200 |
2650*2400*3600 |
2750*2400*3600 |
|
Weight(kg) |
22000 |
38000 |
48000 |
|

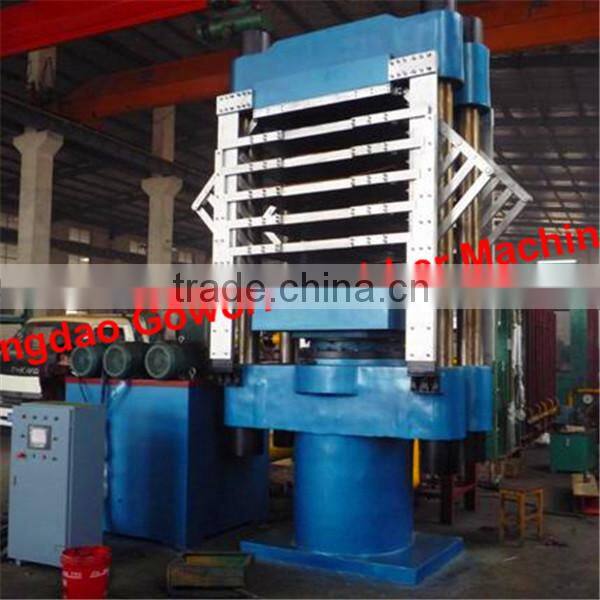

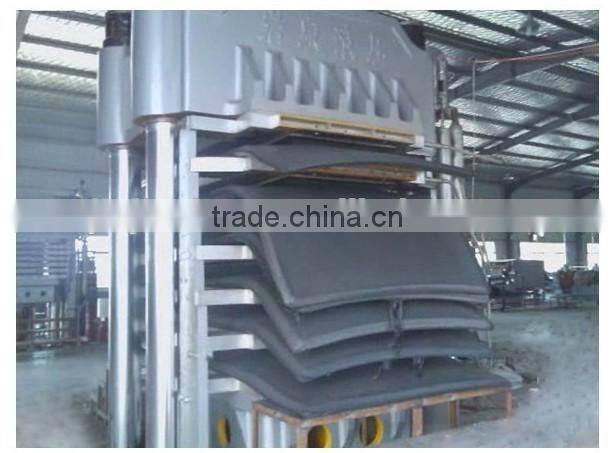

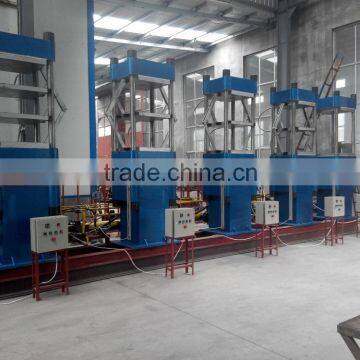

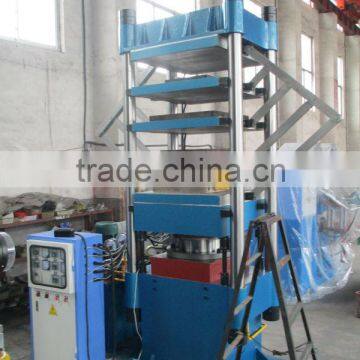

Detail Pictures of EVA Foaming Equipment :
1.the ture manufacturer,and has our own factory.We are professional in rubber machine.
2.we can design and manufacture all kinds of non-standard machinery according to the costomers' requirement.
3.we are constantly improve our technology. it appeals to many foreigners to visit our company and order our products.
We have professional engineers to provide service after sale and give one year quality guarantee and long-term technical support. If you have any interesting about our products, please tell us, we will give you the best service.
More questions, welcome to contact us~~
