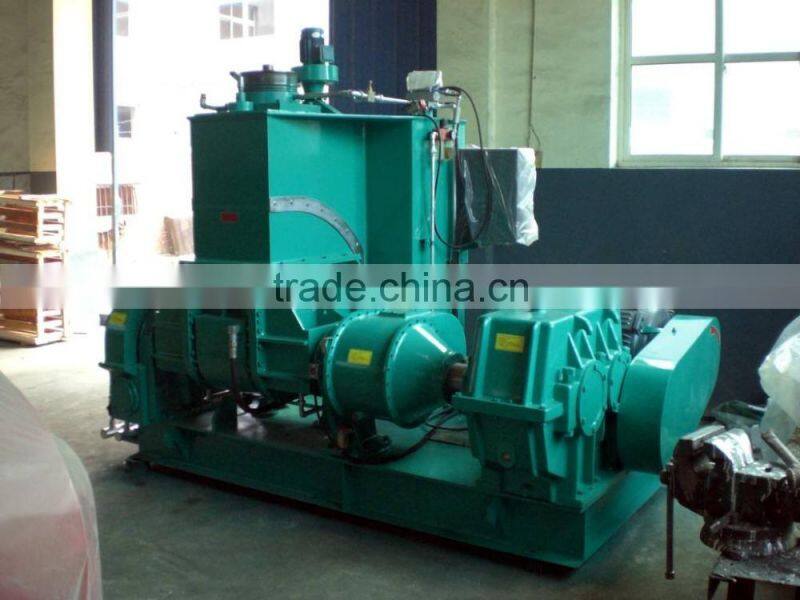

Lab Banbury Mixer/rubber Kneader Machine/rubber Mixer/mixing Mill

Name: Lab Banbury Mixer/rubber Kneader Machine/rubber Mixer/mixing Mill
Brand: Goworld
Availability: InStock

FOB Price

US$ 5,000 - 75,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	Goworld	Model Number	X(S)N
Voltage	as your need	Power(W)	as your need
Dimension(LWH)	as your need	Weight	as your need
Certification	CE ISO	Warranty	One Year
After-sales Service Provided	Engineers available to service machinery overseas

China Qingdao Good Quality Dispersion Kneader Banbury Rubber Mixer Machine -CE Approval

CE Approval

Product Description

What is the specification of the machine?

Usage: For rubber & plastic raw materials mixing/kneading/blending

Model: X(S)N-1L X(S)N-3L X(S)N-10L X(S)N-20L X(S)N-35L X(S)N-55L

X(S)N-75L X(S)N-110L X(S)N-150L X(S)N-200L X(S)N-300L

Model	X(S)N- 1X12-58	X(S)N-3X32	X(S)N- 10X32	X(S)N-20X32	X(S)N- 35X30	X(S)N-55X30	X(S)N-75X30	X(S)N-110x30	X(S)N- 150x30	X(S)N- 200x30	X(S)N- 300x30
Total volume of mixing chamber (L)	3	8	25	45	75	125	180	250	325	440	700
Working volume of mixing chamber (L)	1	3	10	20	35	55	75	110	150	200	300
Driving motor power (KW)	4	5.5	15	30	55	75	110	185	220	280	280/400
Tilting motor power (KW)	MANUAL	0.55	1.1	1.5	2.2	2.2	4	4	5.5	7.5	7.5
Tilting angle (°)	≤140	135	140	140	140	140	140	140	140	140	140
Rotational speed of the rotor (front/rear) r/min	12-58	6-60	32/23.5	32/25	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of compressed air (MPa)	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.5-0.8	0.6-0.8	0.6--08	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Capacity of compressed air(m3/min)	≥0.3	≥0.3	≥0.5	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥2.0	≥2.0
Weight Kg	800	2000	3300	4500	6500	7800	105000	14500	19500	22500	27500

What are your machine characters?

1. Rotor wings are welded by hard chrome and carbide alloy.

2. Abrasion proof and corrosion proof.

3. Rubber stock are discharged by tilting 140 degrees.

4. High efficiency, energy saving and saving occupied space.

5. Imported brand PLC control ensure good performance.

6. Interlock protection ensure low personal injury.

7. Our machines have CE certificate.
