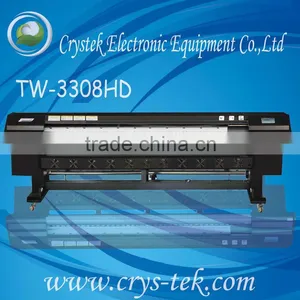

Icontek Large Wide Format Solvent Printer Tw-3308hd

Name: Icontek Large Wide Format Solvent Printer Tw-3308hd
Brand: Icontek
SKU: 111558829

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Plate Type:

Gravure

Place of Origin:

Guangdong, China

Guangzhou Crystek Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou/huangpu

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Gravure

Place of Origin Guangdong, China

Brand Name Icontek

Model Number TW-3308hd

Usage Paper Printer

Automatic Grade Automatic

Gross Power AC 220V ,50Hz/60Hz

Dimensions(L*W*H) L4,360 x W790 x H1,170

Specifications

Extra 50% media pressing system gives a precise feeding and flat media moving, increase printing resolution and decrease banding

Mechanical Motion Section:


Powerful LCD control panel bringsa user friendly interface.		Using high–quality imported spare parts such as Joint Sino-US Venture Servo motors, Hi-win Rails etc.

Strengtheness steel girder,high precision linear guide makesk every inkdots drop onto the right position and brings high resolution.		Extra 50% media pressing system gives a precise feeding and flat media moving, increase printing resolution and decrease bandings.

lignment of bi-direction, feeding and moving speed of carriage can be adjusted while printing.		nfra-red sensor, automatic tension sensitive feeding system, Take up System Optional.

Tri heater system warms up media before and after printing,which improve absorbability of media and drying printing job, can enhance outdoor durability.		uilt in vaccum hold down system ensures the flatness of media ,so as to protect the printhead and improves printing resolution.

Electronic Control Section:


Double raster controlling system plus blank skipping function improves productivity and commercial benefit.		Adopt USB2.0 output system,faster and flexible.

Powerful and user friendly RIP and excellent ICC profile system assures vivid and accurate color reproduction.		Printhead voltage can change by temperature accordingly, with professional ink, fluent and stable printing is guaranteed.

Black text job can be printed by 100% black ink and no need mix with other colors.		Printing can be continued after unpurposive power off.

SPECIFICATIONS:

Product Model	TW-3306HD	TW-3308HD	TW-3306FD	TW-3308FD
Printhead	SPT- 510/35pl		SPT -1020/35pl
Number of Printhead	6 heads	8 heads	6 heads	8 heads
Printhead Sequency	1x6	2x4	1x6	2x4
Print Speed	3200mm 125.9 inch
Maximum Media Width	3300mm 129.9 inch
printing mode	Print Speed
High-speed mode	52m²/h	104m²/h	107m²/h	214m²/h
Standard mode	39m²/h	78m²/h	76m²/h	152m²/h
High quality mode	26m²/h	54m²/h	54m²/h	108m²/h
Ink Type	Solvent Ink
Ink Color	6Color CMYK LMLC,4Color CMYK
Ink Supply System	Low Ink Detector,Auto or Manual Ink Supply System
Auto Media Feeding & Take-up System	Positive Cleaning Anti-clogged Flash Function
RIP Software	Maintop, PhotoPrint, UltraPrint
Print Interface	USB2.0
Printhead Height	2 to 4mm Above Media Adjustable
Media Type	Vinyl,Flex,Polyester,Back-Iit Film,Window Film,etc Roll Media or Sheet Media
Auto Media Feeding	Equipped(Max.Media Weight 80kg)
Pre-heating & Drying System	Equiped(Drying System Optional) Infra-red Heating System Optional
Clamp	Equipped
Input Power	AC220V 50HZ
Operation Environment	Temperature: 20°C--28°C, Humidity: 40%--60%
Machine Dimension	L4820 W950H1370mm, 540kg
Package Dimension	L4920 W1120H1530mm, 700kg
