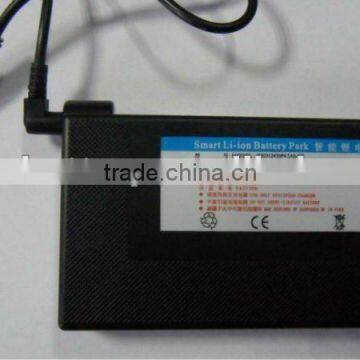

FIR heated clothes with Lithium battery 12V4400mAh and charger

Specifications

FIR heated clothes with Lithium battery 12V4400mAh

1.Five stage electric quantity display
2.Five grades of thermostat
3.More than 500 cycles
4.Nomial voltage:12V

Product Name: high capacity lithium battery, intelligent temperature control electric heating clothes batteries, lithium batteries fever clothing, armed police officers and soldiers electric heating coat

Lithium battery, the frontier soldier special insulation battery battery, winter clothes

Nominal voltage: 12V

Nominal capacity ( 0.2C5A ): 4400mAh

Standby current:≤15 μ A

Efficiency : 95%

Electric quantity display:

( press to open the key, the electricity quantity display ) 5 electric quantity display:

Power representation

5.--100%

4.--75%

3.--50%

2.--25%

1.--10%

Stall regulation:

( connected to the load, long press key 3 seconds boot) 5 gear thermostat

5--99% power output

4--80% power output

3--60% power output

2--40% power output

1--20% power output

The on / off

Operating voltage range: 12.6V-9.0V

Maximum output power: 20W MAX

Resistance load: 5 Ω-200 Ω

Charge cutoff voltage: 12.6V

Discharge cut-off voltage: 9.0V

Battery life: more than 500 cycles

Resistance ( m≤ 230ΩmΩ):

Cell size ( mm ): thick 22* width 72* length 140

Charge / discharge port: 1.DC/2.1*5.5/10mm, 2.USB 5V/1.2A regulated output

Battery weight ( g ): 330g

Charging temperature: 0°C ~ 45 °C; 32oF ~ 113oF

Discharge temperature: -20 °C ~ 60 °C; -4oF ~ 149oF

Storage temperature: -20 °C ~ 45 °C; -4oF ~ 113oF

The battery appearance: milky white color

Single packaging specifications: 95mm*138mm*290mm

The outer packing specification: 200mm*300mm*430mm

Long-term storage performance: 75% n ( stored for a year)

Carton packing / weight: 6 small / big box, 21Kg

Customer service guarantee: shifting a year

Matching charger parameters:

Input voltage range: AC100V~240V 50/60Hz

Charging method: constant current and constant voltage ( CC/CV )

Input plug: the United States and plug ( may require other specifications )

Output voltage: 12.6V

Output current: 1200mA

Output port: DC:2.1*5.5/10mm

Weight ( g ): 80g

Charge indicator: with turning lamp ( red light, green light full charging )

Battery charge time: 5~7h

Single packaging specifications: 30mm*82mm*107mm
