Vinyl Cutter Machine With Dx5 Head/plotter Cutter Machine

Name: Vinyl Cutter Machine With Dx5 Head/plotter Cutter Machine
Brand: CrysTek
SKU: 111553595
Availability: InStock

US$ 5,500 - 9,500 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Other, inkjet printer

Place of Origin:

Guangdong, China

Guangzhou Crystek Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Huangpu Guangzhou/ shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Other, inkjet printer

Place of Origin Guangdong, China

Brand Name CrysTek

Model Number dx7 eco solvent printing plotter with cutter

Usage Bill Printer

Automatic Grade Automatic

Voltage AC220V,50Hz/60Hz

Gross Power 1500W

Dimensions(L*W*H) 2190*600*410mm

Weight 130KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

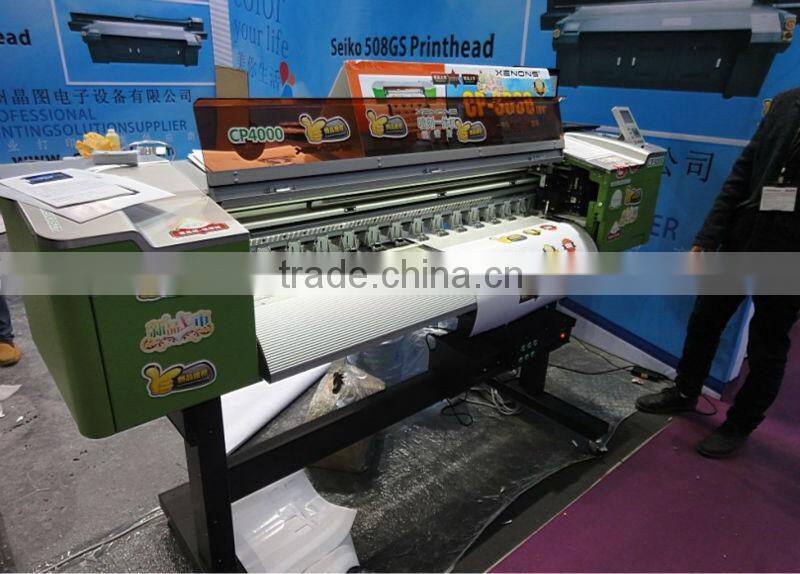

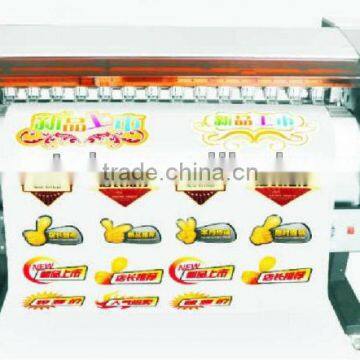

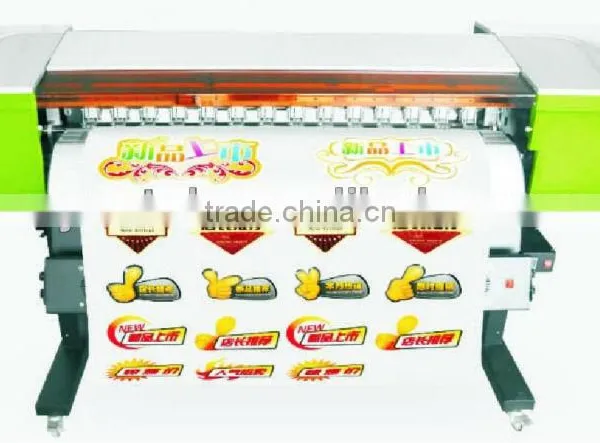

CP-3000 printing&cutting plotter with Dx5/Dx7 eco solvent printhead

1. New model Printing&Cutting Plotter

The newest model of Printing and Cutting plotter, used with Epson Dx7 printheads.

35’’ printing width, the speed can be 9 sq.m/h.

2. Stable performance

The highest speed for cutting can reach 300 mm/s, and the cutting offset just 0-1.5mm.

The cutting force is 30-800GF, the power of media adsorption can be adjusted which avoids printhead scratching with media.

3. Humanized design

Embedded intelligent sectional heating system, auto cleaning system with anti-clogged flash spray&mositurzing function.

Model	CP-3000
printhead	Piezo Electric Printhead DX7
Number of Printhead	1 Head
Max Print Width	890mm(35”)
Printing Resolution	4Pass	8m²/hr
	6Pass	6m²/hr
	8Pass	4m²/hr
	16Pass	3 m²/hr
Ink	Type	Eco-solvent ink, UV ink
	Color	Dual 4 colors (C.M.K.Y)
	Capacity	440ml of each ink cartridge
	Ink Supply System	Block brake type of ink supply system
Media	Width	890mm(35”)
	Type	Label, sticker, banner, billboard, vinyl, POP display material etc.
Print Height	1.5-3mm above media adjustable
Cutting speed	10-300mm/s
Cutting offset	0-1.5mm
Cutting force	30-800 GF
Heating System	Embedded intelligent sectional heating system
Media adsorption system	Muti-sectional intelligent air suction system with adjustable strength
Feeding system	Equipped
Auto Printhead Cleaning System	Auto cleaning system with anti-clogged flash & moisturizing function
Clamp	Equipped
Auto take up system	Selectable
Print Interface	HI-USB2.0
RIP software	FlexiSIGN-PRO, SAI
Input Power	AC220V,50Hz/60Hz
Machine Dimension	2190×600×410mm(L×W×H)
Packing Dimension	2320×850×690mm(L×W×H)
