CP-3000 print&cut digital printing machine

Name: CP-3000 print&cut digital printing machine
Brand: CP-3000 printing and cutting printer plotter
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Plate Type:	Other, inkjet printer	Place of Origin:	Guangdong, China
Brand Name:	CP-3000 printing and cutting printer plotter	Model Number:	CP-3000 print&cut digital printing machine	Usage:	Bill Printer
Automatic Grade:	Automatic	Voltage:	AC220V,50Hz/60Hz	Gross Power:	1500W
Dimensions(LWH):	2190600410mm	Weight:	130KG	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

CP-3000 printing&cutting plotter
1. print&cut plotter
2. 890m, Dx7 head
3. eco solvent ink/UV ink
4. high quanlity

CP-3000 printing&cutting plotter with Dx5/Dx7 head

1. New model Printing&Cutting Plotter

The newest model of Printing and Cutting plotter, used with Epson Dx7 printheads.

35’’ printing width, the speed can be 9 sq.m/h.

2. Stable performance

The highest speed for cutting can reach 300 mm/s, and the cutting offset just 0-1.5mm.

The cutting force is 30-800GF, the power of media adsorption can be adjusted which avoids printhead scratching with media.

3. Humanized design

Embedded intelligent sectional heating system, auto cleaning system with anti-clogged flash spray&mositurzing function.

Model	CP-3000
printhead	Piezo Electric Printhead DX7
Number of Printhead	1 Head
Max Print Width	890mm(35”)
Printing Resolution	4Pass	8m²/hr
	6Pass	6m²/hr
	8Pass	4m²/hr
	16Pass	3 m²/hr
Ink	Type	Eco-solvent ink, UV ink
	Color	Dual 4 colors (C.M.K.Y)
	Capacity	440ml of each ink cartridge
	Ink Supply System	Block brake type of ink supply system
Media	Width	890mm(35”)
	Type	Label, sticker, banner, billboard, vinyl, POP display material etc.
Print Height	1.5-3mm above media adjustable
Cutting speed	10-300mm/s
Cutting offset	0-1.5mm
Cutting force	30-800 GF
Heating System	Embedded intelligent sectional heating system
Media adsorption system	Muti-sectional intelligent air suction system with adjustable strength
Feeding system	Equipped
Auto Printhead Cleaning System	Auto cleaning system with anti-clogged flash & moisturizing function
Clamp	Equipped
Auto take up system	Selectable
Print Interface	HI-USB2.0
RIP software	FlexiSIGN-PRO, SAI
Input Power	AC220V,50Hz/60Hz
Machine Dimension	2190×600×410mm(L×W×H)
Packing Dimension	2320×850×690mm(L×W×H)

1. The printing manual

2. The LED UV Lamp

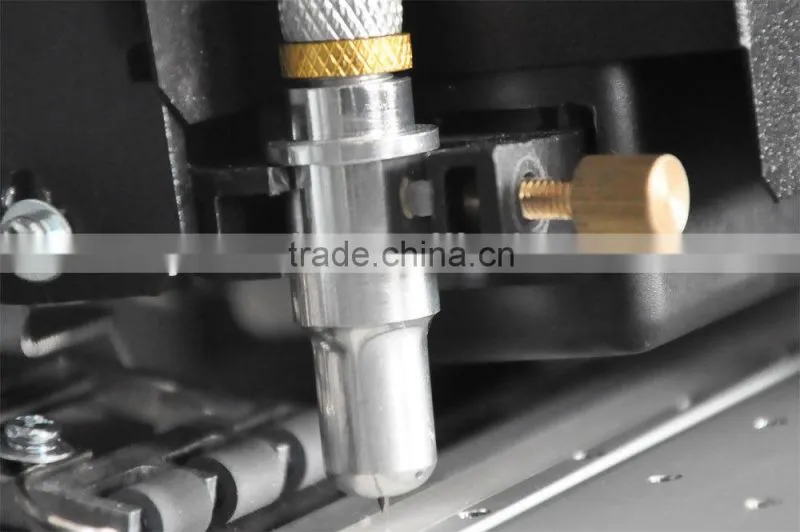

3. The cutter

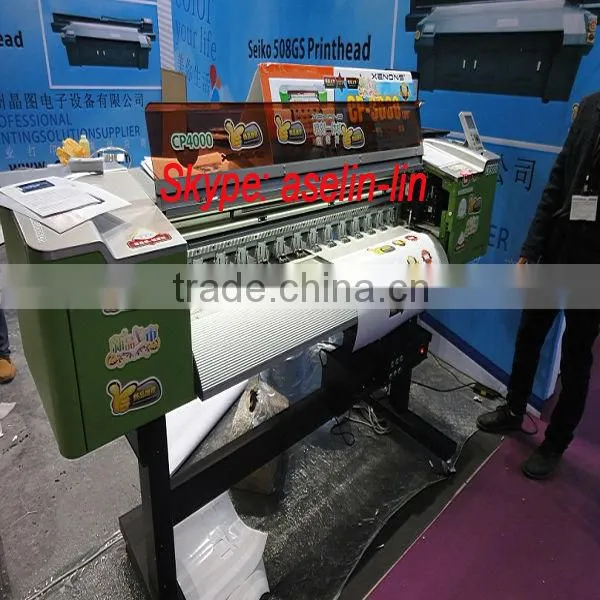

4. Priner on the Sign China exhibition
