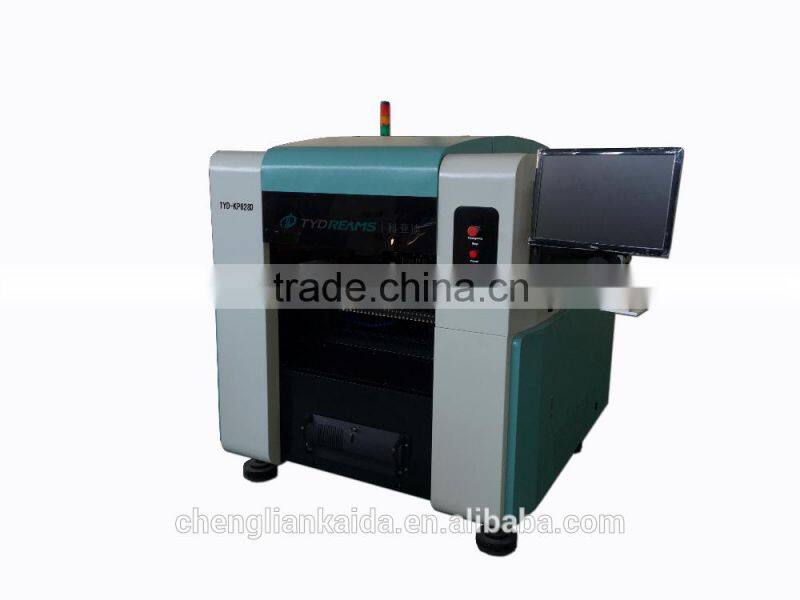

Specification of Full automatic visual placement machine KT6280 :
| Max PCB size | 420 mm×305 mm |
| Max moving range of Z axis | 40mm |
| Actual mounting speed | 7000cph |
| Max mounting speed |
11000cph |
| Min moving distance |
0.004mm |
| Positioning accuracy | 0.03mm |
| Mounting heads qty. | 4 |
| Feeder qty | 80 |
| X/Y drive structure | Panasonic AC servo + Taiwan high precision ball screw + Taiwan high precision square guide |
| motion drive system | high speed DSP digital high voltage drive combined with screw drive guide rail |
| component angle rotation | 0-360 degree arbitrary angle, movement in the synchronous rotation |
| belt type feeder standard | 8mm 12mm 16mm 24mm optional |
| Vacuum source | vacuum generator, vacuum pump |
| Operation system | windows xp |
| Programming way | Industrial computer visual programming, PCB file coordinate import. |
| automatic nozzle system | Standard (random standard 16 nozzle) |
| IC tray:Standard | 1 set, 2 sets optional |
| Weight | 800Kg |
| Power | 3000W |
If you have mass production demand , this kind of machine very better for you .
Application field : IGBT modular , MEMS packaging, Large-power component ,LED light
Product features:
1. The high performance of four head placement machine, x, Y axis coordinate systems formed axis adopts high speed and high precision servo motor driven precision screw, effectively improve placement accuracy and balance circuit board transmission speed, the most suitable for mass resistance capacitance and SOP, SOIC, QFP and mixed production
2 . The unique screw drive structure, so that the movement of the driving force and the direction of the road overlap, reducing the resistance to run more stable, more accurate.
3. The head is driven by Panasonic servo motor with high precision guide, makes the discharge more stable
4 . Configured with 4 groups heads with special structure. flexible structure, overall head weight is less than 1000g, make the operation more quickly.
5. Automatic access system of the guide board, through the connection platform and automatic solder paste printing machine, reflow automatic connection, forming perfect production line.
6. the feeder can meet the requirement of different configurations with different components.
7. Open set method, the intelligent optimization based on artificial optimization becomes possible, improve production efficiency.
8. Provide a default feeder reclaimer coordinate functions, accelerate the speed of manual programming.
9. Special heat sink design can make the equipment continuous work, unique electrical system design, convenient maintenance and system maintenance.
10 . the whole machine is controlled by the industrial computer with special. software, which is convenient and practical. the software is simple and easy to operate, Chinese and English interface is friendly and easy to learn.
11 . Automatic visual online programming software, without manual input element coordinates, programming is simple, easy for beginners to convenient and practical, meet mass production of a variety of demand. To carry out a simple setting, you can achieve PCB fight board programming and paste.
12 . PCB import will be more easier, saving programming time. Software component database is easy to operate, and with the machine to provide a variety of common types of Library package
13 . According to the components of the situation to choose whether to open the image correction function, improve the accuracy of the placement of the placement speed.
14 .Placement sequence by the software to achieve automatic optimization, give full play to the performance of four. the design of hardware and software to protect the function of the equipment caused by the loss of the device is less.
15 .The open type of operation and the software interface to make different customer requirements to be met. You can display all the coordinates of the board in the software, and the coordinates of the fine-tuning, to achieve high precision.
16 .Can set the distance between each puzzle in software, and depending on the spacing shows all material coordinates, you can choose not to stick the imposition .
17 .Completely independent research and development of automatic nozzle system, can be replaced at the same time 16 different types of nozzle, to meet the requirements of different types of components.
|
Configured with different feeders to meet the mounting requirement of different components. |
|
The mounting head uses stepper motor with high precision rail, more stable, quicker. |
|
The machine is controlled by industrial computer with special software, easy operation. |
|
Unique X axis three axis design, making the mounting heads more stable, higher accuracy. |
|
The standard KD bottom camera system, special optical processing, the key parts of the mount is more accurate. |
Packaging & Shipping:
Our service :
Why you choose us ?
1 . Face to face technical guidance : our professional technical staff will be abroad for technical guide and after-sale service .
2. Visual monitoring analysis system: Real -time monitoring the welding process and perform statistical analysis on date . stability , reliability and security operating system .
3. Rapid cooling system : Independent water cooling and gas cooling device is set in the cavity, achieve rapid cooling of the device.
