Specifications
hot press machine20 years history hot press machine
CE ISO hot press
exp. 30 countries
supply 1200 ton woodworking hot press machine for bamboo board
Xingtai Ya Han Machinery Factory is the manufacturer of the plywood making machine , veneer peeling machine , cold press machine , hot press machine , panel saw etc.. Have more than 10 years history , and exported to more than 35 countries . new press machine manufacturer hydraulic hot press machine plywood press machine
| Model | BY21-4*8/30-5 hot press machine | BY21-4*8/30-5 hot press machine | BY21-4*8/30-5 hot press machine |
| Quantity of cylinder | 2units | 2units | 2units |
| Diameter of cylinder | 2*Φ280mm | 2*Φ360mm | 4*Φ320mm |
| Quantity of layers | 5 layers | 15 layers | 10 layers |
| No-load closing time | About 10s | About 15s | About 12s |
| Hydraulic system | Microcomputer manually /automatic controlled | Microcomputer manually /automatic controlled | Microcomputer manually /automatic controlled |
| Pressure capacity | 300ton plywood hot press machine | 500ton plywood hot press machine | 800ton plywood hot press machine |
| cylinder stroke | 500mm | 1050mm | 1000mm |
| Hydraulic system compress | 25Mpa hydraulic hot press machine | 25Mpa hydraulic hot press machine | 25Mpa hydraulic hot press machine |
| Main pump | Shanghai aviation 250 pump by JES | Shanghai aviation 250 pump by JES | Shanghai aviation 250 pump by JES |
| Pressurized pump | 10ml/rev plunger pump | 10ml/rev plunger pump | 10ml/rev plunger pump |
| Integral quality drilling board | 1370.2600.42mm | 1370.2600.42mm | 1370.2600.42mm |
| Thickness of main frame steelplate | 35.22.12mm | 35.22.12mm | 35.22.12mm |
| Main motor | 11kw | 11kw | 11kw |
| pressurized motor | 5.5kw | 5.5kw | 5.5kw |
| movable crossbeam | 2250*1150*500mm | 2250*1150*500mm | 2250*1150*500mm |
| Model | BY21-4*8/30-5 hot press machine | BY21-4*8/30-5 hot press machine | BY21-4*8/30-5 hot press machine |
| Quantity of cylinder | 2units | 2units | 2units |
| Diameter of cylinder | 4*Φ280mm | 4*Φ400mm | 2*Φ160mm |
| Quantity of layers | 8 layers | 20 layers | 1 layers |
| No-load closing time | About 15s | About 15s | About 15s |
| Hydraulic system | Microcomputer manually /automatic controlled | Microcomputer manually /automatic controlled | Microcomputer manually /automatic controlled |
| Pressure capacity | 600ton plywood hot press machine | 1600ton plywood hot press machine | 100ton plywood hot press machine |
| cylinder stroke | 800mm | 2000mm | 100mm |
| Hydraulic system compress | 25Mpa hydraulic hot press machine | 25Mpa hydraulic hot press machine | 25Mpa hydraulic hot press machine |
| Main pump | Shanghai aviation 250 pump by JES | Shanghai aviation 250 pump by JES | Shanghai aviation 250 pump by JES |
| Pressurized pump | 10ml/rev plunger pump | 10ml/rev plunger pump | 10ml/rev plunger pump |
| Integral quality drilling board | 1370.2600.42mm | 1370.2600.60mm | 1370.2600.42mm |
| Thickness of main frame steelplate | 35.22.12mm | 35.22.12mm | 35.22.12mm |
| Main motor | 11kw | 11kw | 11kw |
| pressurized motor | 5.5kw | 5.5kw | 5.5kw |
| movable crossbeam | 2250*1150*500mm | 2250*1150*500mm | 2250*1150*500mm |
Main introductions for new press machine manufacturer hydraulic hot press machine plywood press machine :
1. Hot press machine is one of main equipments for wood-based panel, the series hot press that we develop and produce based on our experience and other manufactures' products advantage is suitable for the producing of plywood ,bamboo plywood,construction template, block board, shaving board, density board, decorating facing board etc. 2. It is suitable in thermo-compressing moulding section for production of shaving board, fiber compressed board etc.
3. This machine is equipped with advanced hydraulic system and control system, and synchronous-close function is also available.
4. Thus the time difference between press time of upper layer and bottom layer is decreased and product quality is guaranteed.
5. It is the preferred equipment to improve production efficiency in enterprise of large-scale man-made board production.
The feature of plywood production line
- The cylinders we use are from Wuxi top three brands, and guaranteed one-year after-sale service;
- The hot platens we use are from Kunshan Guangqi---best in quality and largest in output. The platens are produced on high precision machine tool. Three features of the platen: precision in thickness: all 0.5mm; flatness 0.5mm; surface finish 1.6.
- The main frame has improved over 20 items, among which the most outstanding items are:
a) The vertical shaft was used H model, inner support moved 20cm inward; the semicircle beneath the inner support moved up 30cm, thus decreased the moment and increased the security of the vertical shaft.
b) The whole frame is made of imported steel plate. An R-shaped arch is added on the spot of largest moment force of the frame, thus strengthened the security of the frame.
c) The movable crossbeam is assisted with a precision guide to keep pace with the cylinder.
d) The slideway is fastened with CL.8.8 bolts, which are easy for replacement and destuffing and of high precision.
e) The three machining surface of the frame are qualified to produce any kind of panel.
f) The main pipe is welded together and the joints are flanged, easy to destuff.
g) The whole machine is installed without welding.

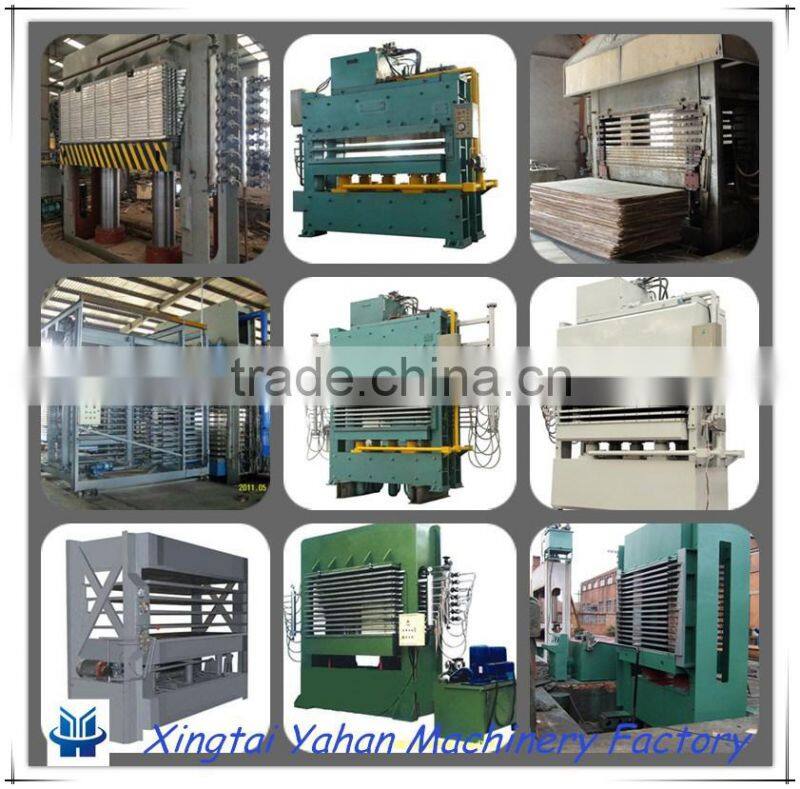

product display :
Should any of these items be of interest to you , please let us know, we will be happy to give you details.
We also can design the machine as our customer’s requirement, the customer need show us the specification as follow: Nominal pressure, platen size, platen number and opening, the process capacity.

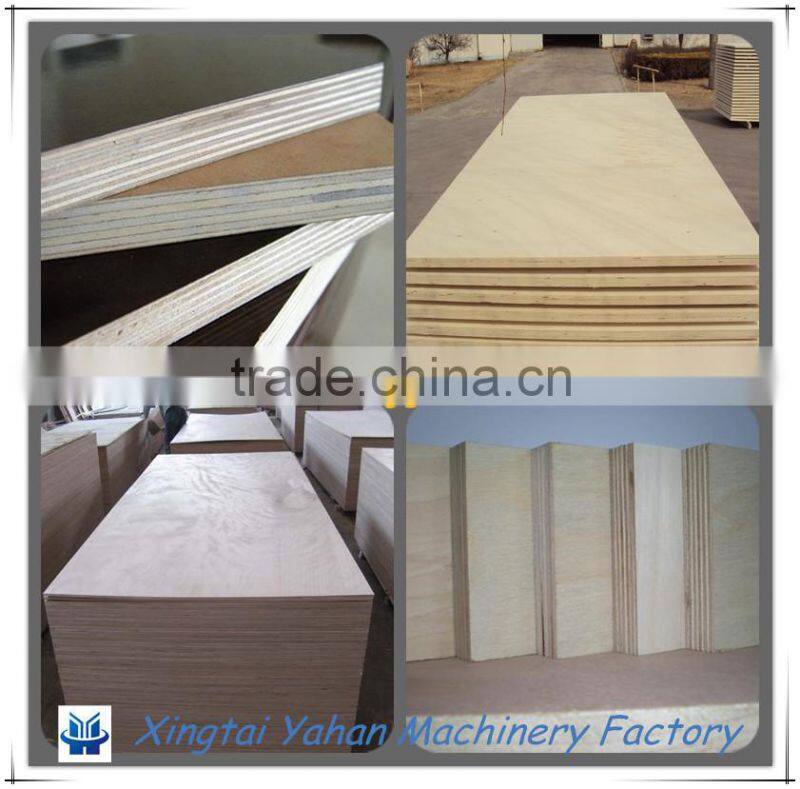

plywood production line plywood production line plywood production line
