Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Engineering & Construction Machinery Parts > Double Acting Telescopic Hydraulic Cylinder for Dump Truck

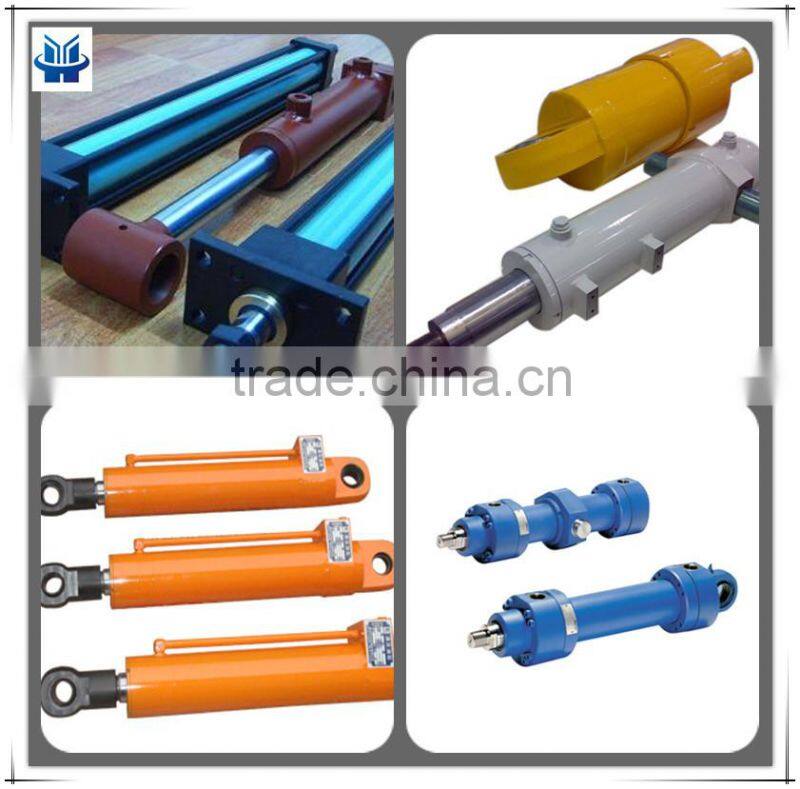

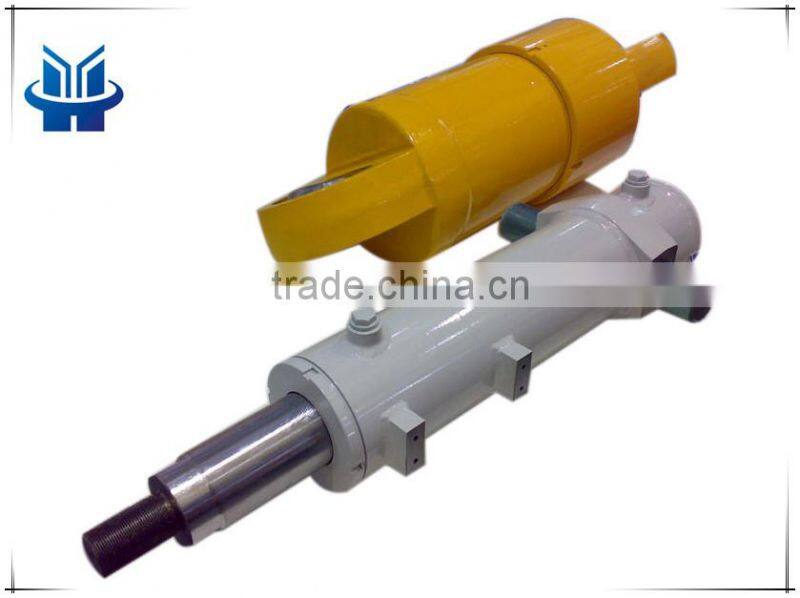

Double Acting Telescopic Hydraulic Cylinder for Dump Truck
US$ 90 - 3,080
MOQ: 1 Piece
Key Specifications
Get Latest Price
Type:
Fittings
Model Number:
YHC
Brand Name:
YH
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lifter Machine Piston Structure Hydraulic CylinderUS$ 90 - 3,080MOQ: 1 Piece -
Heavy Duty Multi Stage Telescopic Hydraulic CylinderUS$ 90 - 3,080MOQ: 1 Piece
-
Main Hydraulic Cylinder for Concrete Pump MachineryUS$ 90 - 3,080MOQ: 1 Piece
-
Oil Cylinder / Large Steel Forged Hydraulic CylinderUS$ 90 - 3,080MOQ: 1 Piece
-
Manufacturers/Large Diameter and Long Stroke Hydraulic Cylinder for Water Gate/ Dam Gate/ Radial GateUS$ 90 - 3,080MOQ: 1 Piece
Type
Fittings
Model Number
YHC
Brand Name
YH
Place of Origin
Hebei, China
Specifications
escopic hydraulic cylinder for dump truck2.Max Stroke:15000mm
3.Seal kits:Parker/Merkel Seal or as you required
telescopic hydraulic cylinder for dump truck
Company Information
telescopic hydraulic cylinder for dump truck
- ISO9001:2008 certified
- Complete CNC Machining capabilities
- Bore size from 1 1/5" to 20" (30mm to 500mm)
- Stroke lengths to 200'' (5000mm) or longer
- Working pressures to 32Mpa
- Up to 4 stage of multi stage hydraulic cylinder experience
Our Services
telescopic hydraulic cylinder for dump truck
We have more than one decade experience in supplying custom hydraulic cylinders with provided drawings or samples, or if you could provide following specification:
- diameter of bore & rod
- stroke
- mounting type
- closed/open centers
- working pressure
- ports
- seals
- other requirement
Product Description
telescopic hydraulic cylinder for dump truck
| Model Number | Cylinder Capacity ton (kN) | Stroke (mm) | Collapsed Height A (mm) | Extended Height B (mm) | Outside Dia. D (mm) | Cylinder Bore Dia. E (mm) | Plunger Dia. F (mm) | Cylinder Effective Area (cm2) | Oil Capacity (cm3) | Weight (kg) |
| YH-50** | 5 (45) | 16 | 41 | 57 | 58*** | 28,7 | 25,4 | 6,5 | 10 | 1,0 |
| YH -51 | 5 (45) | 25 | 110 | 135 | 38 | 28,7 | 25,4 | 6,5 | 16 | 1,0 |
| YH -53 | 5 (45) | 76 | 165 | 241 | 38 | 28,7 | 25,4 | 6,5 | 50 | 1,5 |
| yh-55* | 5 (45) | 127 | 215 | 342 | 38 | 28,7 | 25,4 | 6,5 | 83 | 1,9 |
| YH-57 | 5 (45) | 177 | 273 | 450 | 38 | 28,7 | 25,4 | 6,5 | 115 | 2,4 |
| YH-59 | 5 (45) | 232 | 323 | 555 | 38 | 28,7 | 25,4 | 6,5 | 151 | 2,8 |
| YH-101 | 10 (101) | 26 | 89 | 115 | 57 | 42,9 | 38,1 | 14,5 | 38 | 1,8 |
| YH-102* | 10 (101) | 54 | 121 | 175 | 57 | 42,9 | 38,1 | 14,5 | 78 | 2,3 |
| YH-104 | 10 (101) | 105 | 171 | 276 | 57 | 42,9 | 38,1 | 14,5 | 152 | 3,3 |
| YH-106* | 10 (101) | 156 | 247 | 403 | 57 | 42,9 | 38,1 | 14,5 | 226 | 4,4 |
| YH-108 | 10 (101) | 203 | 298 | 501 | 57 | 42,9 | 38,1 | 14,5 | 294 | 5,4 |
| YH-1010* | 10 (101) | 257 | 349 | 606 | 57 | 42,9 | 38,1 | 14,5 | 373 | 6,4 |
| YH-1012 | 10 (101) | 304 | 400 | 704 | 57 | 42,9 | 38,1 | 14,5 | 441 | 6,8 |
| YH-1014 | 10 (101) | 356 | 450 | 806 | 57 | 42,9 | 38,1 | 14,5 | 516 | 8,2 |
| YH-151 | 15 (142) | 25 | 124 | 149 | 69 | 50,8 | 41,4 | 20,3 | 51 | 3,3 |
| YH-152 | 15 (142) | 51 | 149 | 200 | 69 | 50,8 | 41,4 | 20,3 | 104 | 4,1 |
| YH-154* | 15 (142) | 101 | 200 | 301 | 69 | 50,8 | 41,4 | 20,3 | 205 | 5,0 |
| YH-156* | 15 (142) | 152 | 271 | 423 | 69 | 50,8 | 41,4 | 20,3 | 308 | 6,8 |
| YH-158 | 15 (142) | 203 | 322 | 525 | 69 | 50,8 | 41,4 | 20,3 | 411 | 8,2 |
| YH-1510 | 15 (142) | 254 | 373 | 627 | 69 | 50,8 | 41,4 | 20,3 | 516 | 9,5 |
| YH-1512 | 15 (142) | 305 | 423 | 728 | 69 | 50,8 | 41,4 | 20,3 | 619 | 10,9 |
| YH-1514 | 15 (142) | 356 | 474 | 830 | 69 | 50,8 | 41,4 | 20,3 | 723 | 11,8 |
| YH-251 | 25 (232) | 26 | 139 | 165 | 85 | 65,0 | 57,2 | 33,2 | 86 | 5,9 |
| YH-252* | 25 (232) | 50 | 165 | 215 | 85 | 65,0 | 57,2 | 33,2 | 166 | 6,4 |
| YH-254* | 25 (232) | 102 | 215 | 317 | 85 | 65,0 | 57,2 | 33,2 | 339 | 8,2 |
| YH-256* | 25 (232) | 158 | 273 | 431 | 85 | 65,0 | 57,2 | 33,2 | 525 | 10,0 |
| YH-258 | 25 (232) | 210 | 323 | 533 | 85 | 65,0 | 57,2 | 33,2 | 697 | 12,2 |
| YH-2510 | 25 (232) | 261 | 374 | 635 | 85 | 65,0 | 57,2 | 33,2 | 867 | 14,1 |
| HY-2512 | 25 (232) | 311 | 425 | 736 | 85 | 65,0 | 57,2 | 33,2 | 1033 | 16,3 |
| YH-2514* | 25 (232) | 362 | 476 | 838 | 85 | 65,0 | 57,2 | 33,2 | 1202 | 17,7 |
| YH-308 | 30(295) | 209 | 387 | 596 | 101 | 73,2 | 57,2 | 42,1 | 880 | 18,1 |
| YH-502 | 50 (498) | 51 | 176 | 227 | 127 | 95,2 | 79,5 | 71,2 | 362 | 15,0 |
| YH-504 | 50 (498) | 101 | 227 | 328 | 127 | 95,2 | 79,5 | 71,2 | 719 | 19,1 |
| YH-506* | 50 (498) | 159 | 282 | 441 | 127 | 95,2 | 79,5 | 71,2 | 1131 | 23,1 |
| YH-5013 | 50 (498) | 337 | 460 | 797 | 127 | 95,2 | 79,5 | 71,2 | 2399 | 37,6 |
| YH-756 | 75 (718) | 156 | 285 | 441 | 146 | 114,3 | 95,2 | 102,6 | 1601 | 29,5 |
| YH-7513 | 75 (718) | 333 | 492 | 825 | 146 | 114,3 | 95,2 | 102,6 | 3417 | 59,0 |
| YH-1006 | 95 (933) | 168 | 357 | 525 | 177 | 130,3 | 104,9 | 133,3 | 2239 | 59,0 |
| YH-10010 | 95 (933) | 260 | 449 | 709 | 177 | 130,3 | 104,9 | 133,3 | 3466 | 72,6 |
