battery 12v 2.3ah accumulators ups

Specifications

1. ups battery 12v 2.3ah
2. maintenance free
3. Battery capacity:12V 2.3AH
4. Certificates:ISO1400,ISO9001,CE,FCC,UL,V

Specifications

POWER KINGDOM  MF Lead acid battery Capacity:2.3AH Voltage: 12V Certificates:ISO9001,UL,VDS,CE,FCC,IEC

POWER KINGDOM  12V 2.3AH lead acid battery with CE,ISO9001:2000,UL,VDS,FCC,IEC

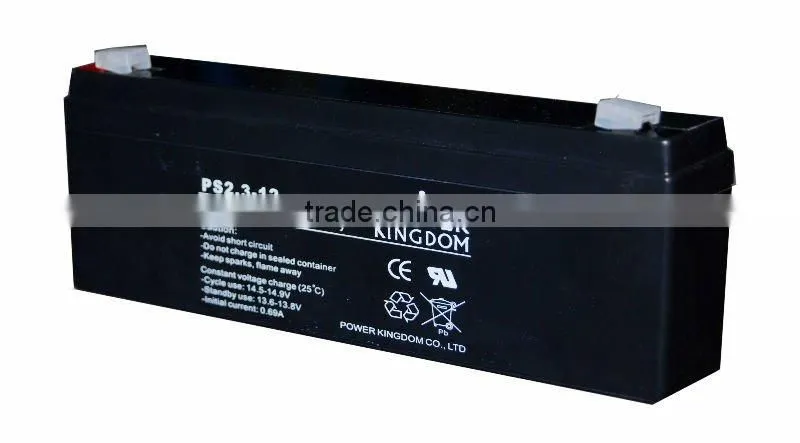

Battery Model: PS2.3-12 12V 2.3AH

Dimension:  178*35*61*67(mm)

Approx Weight: 0.9kg (2.1lbs)

Terminal:  T1-A

Container Material:  ABS

Rated Capacity:



20h rate (0.115A)	2.3Ah
10h rate (0.21A)	2.1Ah
5h rate (0.37A)	1.96Ah
1h rate (1.56A)	1.38Ah
15 min rate (4.16A)	1.04Ah



















Max. Discharge Current: 34.5A(5s)

Internal Resistance: Approx 65mΩ

Operating Temp.Range:

           Discharge : -15~50⁰C (5 ~122⁰F)

           Charge : 0~40⁰C (32 ~104⁰F )

            Storage : -15~40⁰C (5~104⁰F)

Nominal Operating Temp. Range:  25±3⁰C (77±5⁰F )

Cycle Use:  Initial Charging Current less than 0.69A.Voltage 14.4V~15Vat 25⁰ C(77⁰ F)Temp. Coefficient -30mV/⁰C

Standby Use: No limit on Initial Charging Current Voltage 13.6V~13.8V at 25⁰ C(77⁰ F) Temp. Coefficient -20mV/⁰C

Capacity affected by temperature:

                     40 ⁰C (104 ⁰ F)   103%

                     25 ⁰C ( 77 ⁰F )    100%

                     0 ⁰C ( 32 ⁰F )      86%



 POWER  KINGDOM 12V 2.3AH lead acid battery  Typical Applications:(lead acid battery)



1. Uninterruptable power supply(UPS)

2. Electric power system(EPS)

3. Emergency backup power supply

4. Emergency light

5. Railway signal

6. Aircraft signal

7. Alarm and security system

8. Electronic apparatus and equiment

9. Communication power supply

10. DC power supply

11. Auto control system



 POWER KINGDOM 12V 2.3AH lead acid battery Battery general features

1.Using oxygen recombination technology: maintenance-free

2.PbCaSn alloy for plate grids: less gassing, less self-discharging

3.High quality AGM separator: extend cycle life and prevent micro short circuit

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)

5.High purity raw material: ensure low self discharge rate

6.Silver-coated copper terminals (T1-A terminal), brass insert terminals and lead terminals improve theelectric conductivity
