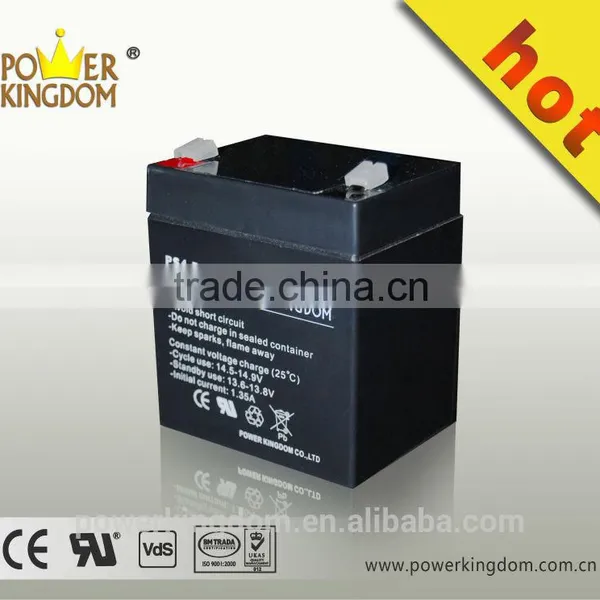

12v 4.5ah Lead Acid Battery

12v 4.5ah Lead Acid Battery thumbnail-1
12v 4.5ah Lead Acid Battery photo-1
US$ 4 - 6 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
POWER KINGDOM
Model Number:
PS4.5-12
Contact Supplier Request Quote Chat Now
Shenzhen Power Kingdom Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENHEN PORT
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name POWER KINGDOM
Model Number PS4.5-12
Type Other, VRLA-AGM
Nominal Voltage 12V
Size Other, 90*70*101
Nominal Capacity 4.5AH

Specifications



POWER KINGDOM  MF Lead acid battery Capacity:4ah Voltage: 12V Certificates:ISO9001,UL,VDS,CE,FCC,IEC



POWER KINGDOM  12V 4AH lead acid battery with CE,ISO9001:2000,UL,VDS,FCC,IEC



Battery Model: PS4-12 12V 4AH

Dimension:  90*70*101 (mm)

Approx Weight:     3.04 lbs. (1.38kg)

Terminal:  T1/T2

Container Material:  ABS

Rated Capacity: 12AH



20h rate

4.5Ah

10h rate

4.2Ah

5h rate

3.8Ah

1h rate

2.7Ah

15 min rate

2.0Ah















Max. Discharge Current:      68A(5s)

Internal Resistance: Approx   38mΩ

Operating Temp.Range:

           Discharge : -15~500C (5 ~1220F)

           Charge : 0~400C (32 ~1040F )

            Storage : -15~400C (5~1040F)

Nominal Operating Temp. Range:  25±30C (77±50F )

Cycle Use:  Initial Charging Current less than 1.35A .Voltage 14.4V~14.9Vat 250 C(770 F)Temp. Coefficient -30mV/0C

Standby Use: No limit on Initial Charging Current Voltage 13.6V~13.8V at 250 C(770 F) Temp. Coefficient -20mV/0C

Capacity affected by temperature:

                     40 0C (104 0 F)   103%

                     25 0C ( 77 0F )    100%

                     0 0C ( 32 0F )      86%



 POWER  KINGDOM 12V 4.5AH lead acid battery  Typical Applications:(lead acid battery)



1. Uninterruptable power supply(UPS)

2. Electric power system(EPS)

3. Emergency backup power supply

4. Emergency light

5. Railway signal

6. Aircraft signal

7. Alarm and security system

8. Electronic apparatus and equiment

9. Communication power supply

10. DC power supply

11. Auto control system



 POWER KINGDOM 12V 4.5AH lead acid battery Battery general features

1.Using oxygen recombination technology: maintenance-free

2.PbCaSn alloy for plate grids: less gassing, less self-discharging

3.High quality AGM separator: extend cycle life and prevent micro short circuit

4.ABS material: increase the strength of battery container. (Flame-retardant ABS is optional)

5.High purity raw material: ensure low self discharge rate

6.Silver-coated copper terminals (T1/T2 terminal), brass insert terminals and lead terminals improve theelectric conductivity













12v 4.5ah lead acid battery
