DF-A Quantitative Powder Filling Machine(5-5000g)

DF-A Quantitative Powder Filling Machine(5-5000g) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Application:
Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type:
Bags, Barrel, Bottles, Case, Pouch, Stand-up Pouch
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Application Apparel, Beverage, Chemical, Commodity, Food, Medical
Packaging Type Bags, Barrel, Bottles, Case, Pouch, Stand-up Pouch
Packaging Material Glass, Plastic
Automatic Grade Automatic
Driven Type Electric
Voltage 220V/110V 50HZ/60HZ
Power 1000W
Place of Origin Zhejiang, China
Brand Name Youlian Machine
Model Number DF-A
Dimension(L*W*H) 1950*970*650mm
Weight 200KG
Certification CE

Destription:



DF-A Quantitative Powder Filling Machine was designed in terms of the National GMP Standard.The hopper is sheer,The dust can be collected.and the working table height adjustable.Over 10 recipes can be saved for later using.The machine is suitable for packaging product,for instance,milk powder,feed/rice powder,icing sugar coffee,monosodium glutamte,solid beverage,dextrose,solid medicament,etc.



Feature:





1.Filling system is driven by step motor high weighing precision.

2.Working conditions shows in english by touch screen display.

3.Auger is driven by fast response clutch/brake,and weighing feedback proportion tracked.

4.Chinese/English is displayed in touch screen.

5.Made of stainless steel totally,the door of hopper can be side opened.

6.Machine structure is simple, compact, easy to operation and maintenance.

7.Change the auger attachment,suitable for packing materials from powder to petty grainy.

8.With pedal swith and inclined screw feeder if you need.



Product Pictures:

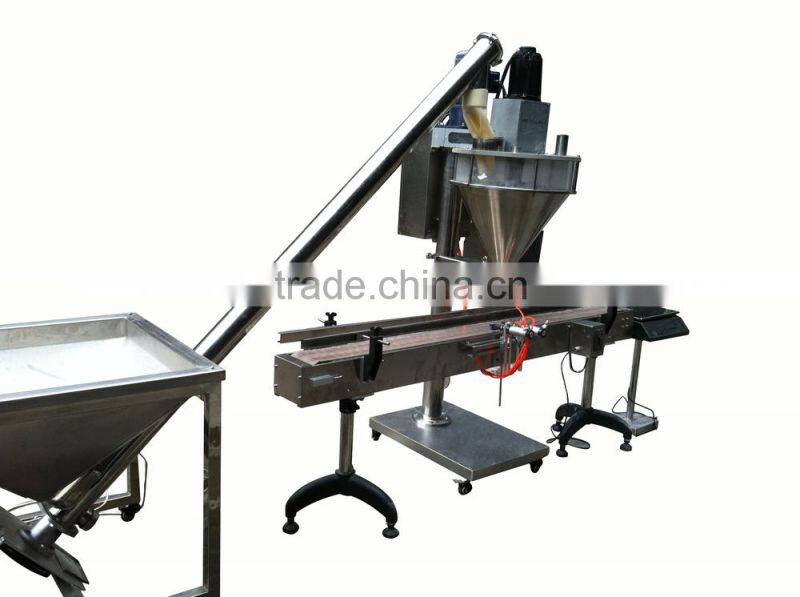

DF-A Quantitative Powder Filling Machine(5-5000g)

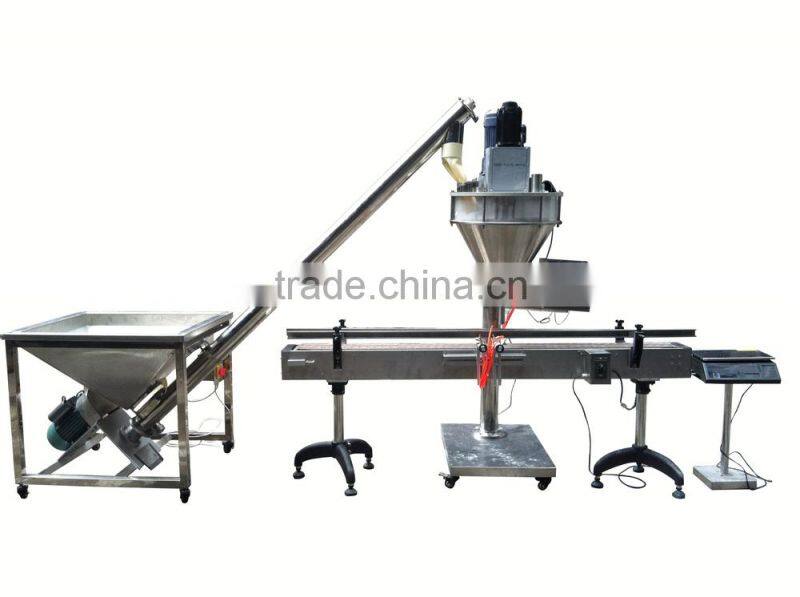

DF-A Quantitative Powder Filling Machine(5-5000g)

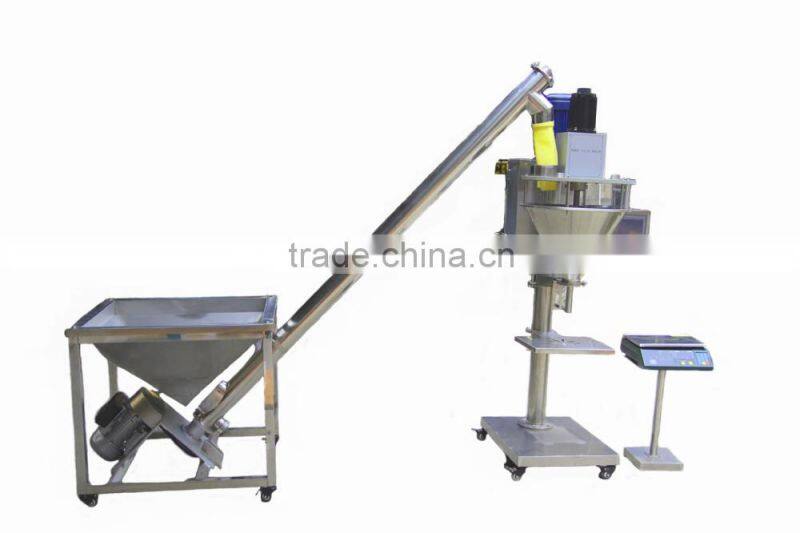

DF-A Quantitative Powder Filling Machine(5-5000g)

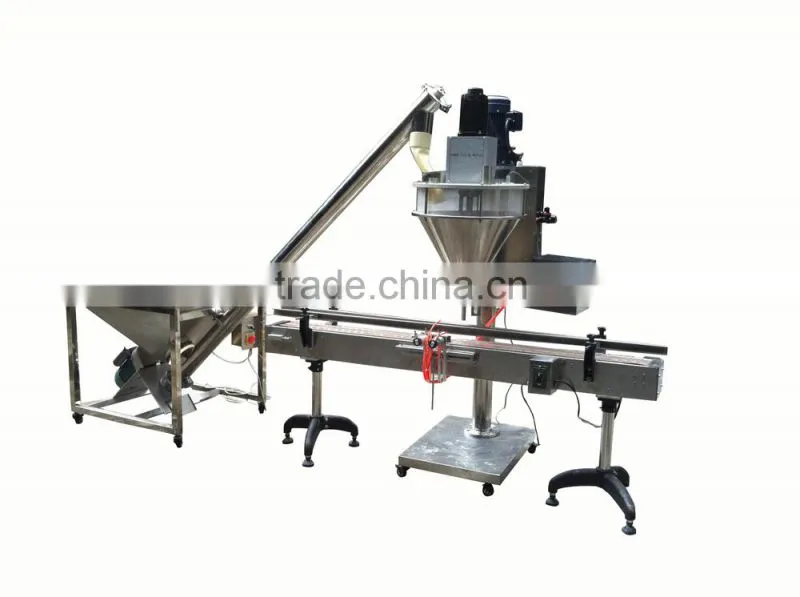

DF-A Quantitative Powder Filling Machine(5-5000g)





Technical Parameters:







Model

DF-A

Voltage

220-240V  50/60Hz

Power

1KW

Filling Weight

5-5000g

(Change auger attachment)

Filling Accuracy



≤±0.3%-1%

(According to packing weight and product specs)

 Filling Speed

20-50 bags/min

Hopper Volume

30L

Machine size (L *WH)

 1950 *970 *650 mm

Weight

200Kg

Package

Export Wooden Case




Our services:



1.Customized service can be provided according to your requirement.

2. Before packaged& delivered, we will test the machine seriously and guarantee the machine runs stably with high accuracy.

3. Periodically call visit, to make sure there is no problems of the equipment.

4. 1 year warranty, technician available to service at any time.



More information, operation video, pls feel free to contact me.
