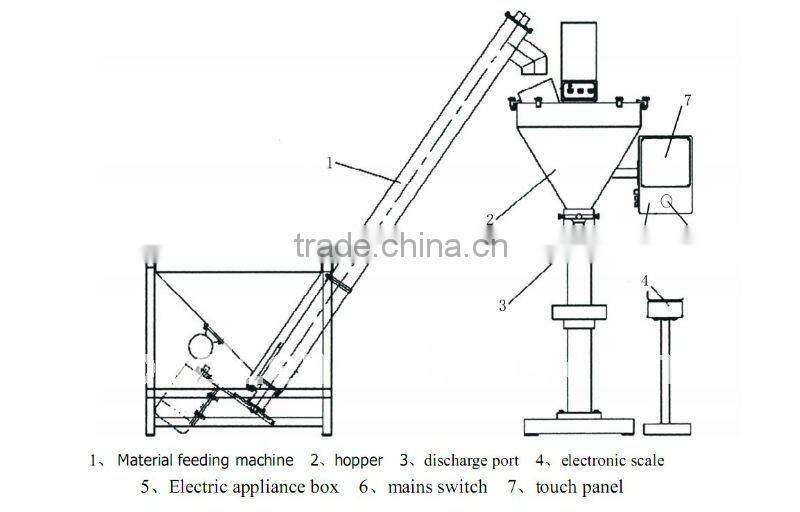

Powder Filling & Feeder System

Powder Filling Machine

This semiautomatic filling and packaging machine was designed in terms of the Nationai GMP Standard.

thehopper is sheer,The dust can be collected .

and the working table height adjustable.

Chinese/English is displayed intouch screen.

HMI using PLCPlus touch screen.Filling system is Driven by servmotor,

higher weighing precision.Thedoor of hopper can be side opened,

the machine is suitable for packaging Powdery product,forinstance,

milk powder,feed,rice powder,icing sugar,coffee,monosdium giutamate,solid beverage,

dextrose,solid medicament,etc.

Name DS-3 Vibrating hopper Inclined screw feeder
Number DS-3

DF-A series of major aircraft and supporting the use of packaging machine to reduce dust and reduce labor intensity, improve labor efficiency, according to materials can be divided into two kinds of carbon steel and stainless steel, the material I can be round or square cause I expected.
The DS series spiral conveyer, may powdery either granulated and has the viscosity or the moisture content is big, the viscosity big material to send in automatically directly from the Chu feed box in the hopper, and by the level indicator control feeding circulation, realizes the feeding automation. Transports in the process raw material not to receive completely pollutes, does not lead any foreign matter, this serial products may widely use in the medicine, food, the chemical industry, and so on professions.
Characteristic This conveyer adds the screw blade transportation material by the rigid drive shaft, therefore it may transport has the viscosity or the moisture content big material. This machine biggest merit, raw material does not receive in the transportation process pollutes, may in several minute rapid disassembling, the clean be convenient. Meets the GMP requirement, widely applies in professions and so on drugs manufacture, food, chemical industry.
Spiral conveyer (non-sign) The non-standard equipment, the parameter which provides according to the user designs the manufacture. carries on the scene survey, provides advanced, reasonable, the economical overall plan for the user. has the stainless rigid frame structure.

Technical parameters

Charging Capacity  2 cbm/hr.
Hopper Volume  120 L
Screw diameter 110 mm
Feed tube diameter 115 mmIn
height 1600 mm(According to requirements)
Voltage power AC380v Spiral motor 1500W,Vibration motor 200W(Can be customized 220V voltage standard)
dimension 860×755×840 mm
Weight 150kg
Materials Stainless steel
