Summarize:

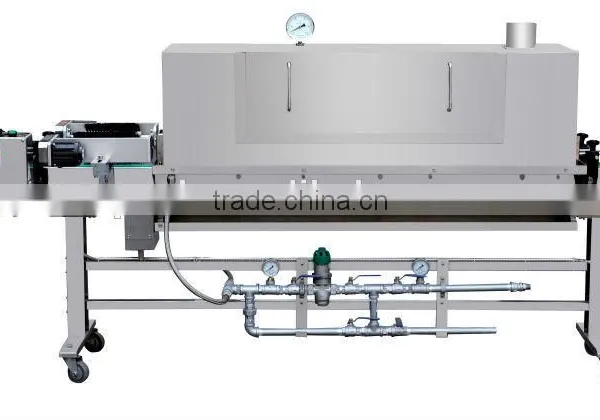

Steam label shrink machine is our new-developed shrink machine. It adopts steam as heat source, and has features of high speed, even heating, no wrinkle, adjustable power and perfect shrink effect. Machine body applies S/S material, addtionally heat-preservation layer is provided. This not only saves energy, but accords to international security standard. Whole machine adopts water-proof design, and S/S water receiver is mounted in the bottom in order to collect condensed water. It is easy to operate and maintain, and widely applied in the industry of mineral water, pure water, carbonated drink and tea etc.
Machine adopts steam-shrink model with S/S structure. It has advantage of high efficiency in energy-consumption, simple operation and easy adjustment. Achieve perfect shrink effect with lowest power consumption. 5-section design in shrink tunnel, independent temp. control in each section, as well as height adjust and distance adjust between objects. Any shape bottle is able to reach nice-looking shrink effect after simple adjust.
Technical parameters:
Type |
ZBS83A
|
Voltage |
220V 50/60HZ
|
Power |
150W
|
Tunnel size |
1350*180*380mm
|
Capacity |
5000-15000B/h
|
Steam pressure |
0.1Mpa
|
Steam consumption |
24Kg/h
|
Shrink temperature |
75-85°C
|
|
Machine size (L *W* H)
|
2620*500*1200mm |
Weight |
150kg
|
(Note:Other special size is able to be customized)
Steam Generator:
Voltage |
380V/3Phase
|
Power |
24KW
|
Pressure |
0.4Mpa
|
Volume |
27L
|
Steam production |
32Kg/h
|
|
Machine size (L *W* H)
|
590*500*1350mm |
Weight |
90kg
|
