Help CenterTBD03 High-Speed Three Sides Labeling Machine(Oval)
Related Products
-
MT-60 Square Bottle Labeling MachineNegotiableMOQ: 1 Set -
MT-50 Semi-automatic Round Bottle Labeling Machine(Width Label)NegotiableMOQ: 1 Set
-
MT-50B Round Bottle Labeling Machine(With Printer)NegotiableMOQ: 1 Set
-
10000 Bottle PK-60 Hot Melt Glue Labeling MachineNegotiableMOQ: 1 Set
-
MT-30 Semi Automatic Syringe Bottle Labeling MachineNegotiableMOQ: 1 Set

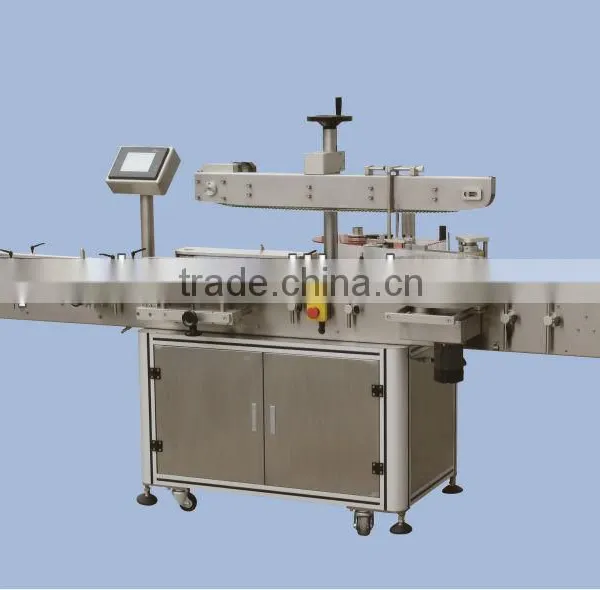

Machine Description:
TBD03 High-Speed Three Sides Labeling Machine is an ideal equipment to label one side of round, square, flat, ellipse and abnormity bottles in the industry of medicine, foodstuff, cosmetics and drink etc.
The machine has advanced function, simple operation, compact configuration. Adopts photoelectricity examine, PLC control, Touch screen software operation, transport belt, supporting belt, top belt, are all stepless for speed adjust, label nicely; at the same time it has the function of no object no labelling, no label can revise and inspect by itself.
The machine can work separately, and also it can work on line with other machines.
Machine Details:
1,The step or the servo motor system.
2,Clutch design, make the label tension force more stable, and easy to improve labeling precision.
3,Advanced color man-machine interface control system.
4,Germany Siemens PLC control, high reliability.
5,Use Germany, Japan magic eye.
6,Machine structure is simple, compact, easy to operation and maintenance.

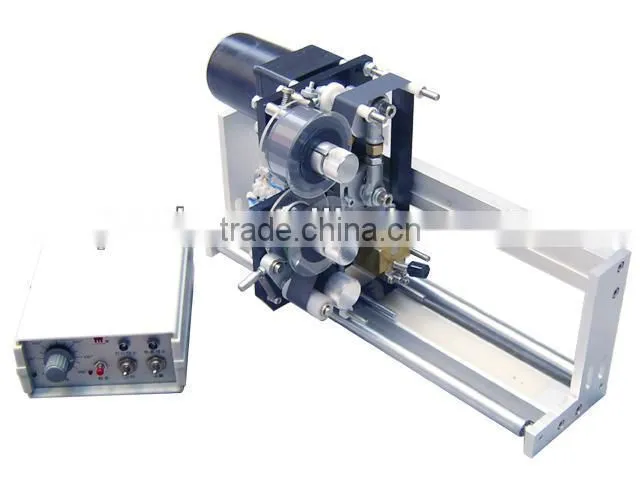

7,Can add ribbon typewriter, or heat transfer machine and automatic send bottle opener (optional).

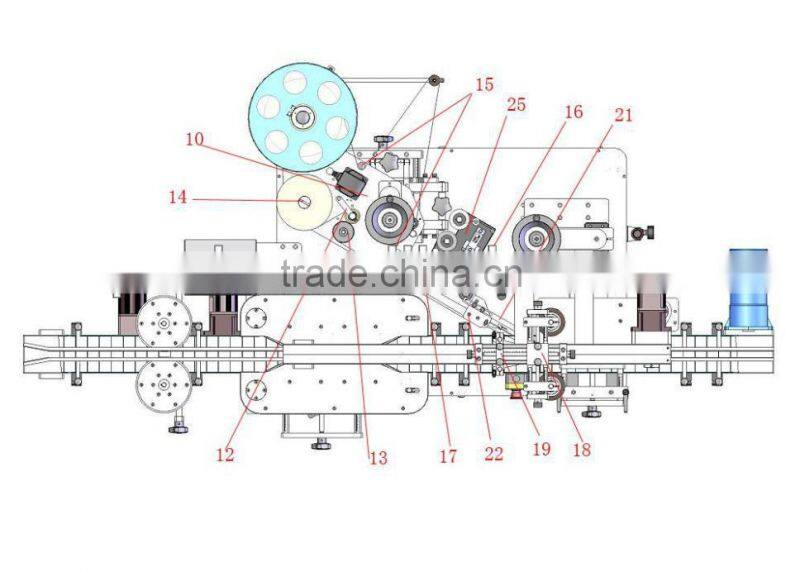

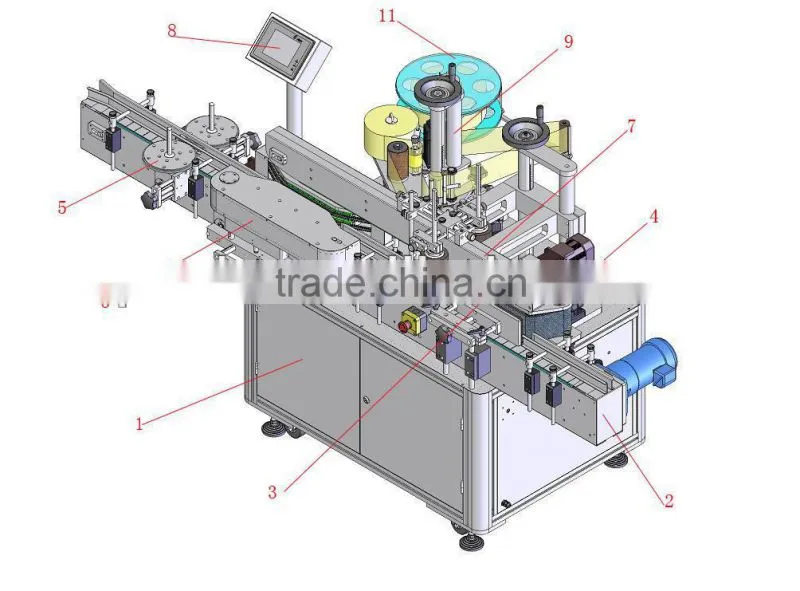

Machine Design:
Technical Parameters:
|
Model
|
TBD03 |
Voltage |
220V 50Hz
|
Power |
2KW
|
|
Label width (maximum)
|
170mm |
|
Label Length
|
10-300mm |
Bottle diameter (maximum) |
Φ110mm |
Paper roll diameter (maximum) |
φ350mm |
|
Inside of paper roll
|
φ76mm |
|
Labeling speed
|
20-60 pcs/min |
|
Labeling precision
|
±0.5mm |
|
Machine size (L *W* H)
|
2200 * 1500 * 1200 mm |
Weight |
460Kg
|
Package |
Fumigation Wooden Case
|
Configuration List:
|
Name |
Brand
|
1 |
Programmable controller
|
Siemens |
2 |
Sensor
|
Leuze |
3 |
Touch Screen
|
E-View |
4 |
Labeling servo motor
|
Panisonic |
5 |
Conveyor belt motor
|
Mitsubishi |
6 |
Separate bottle motor
|
Mitsubishi |
7 |
Low-voltage electrical
|
CHNT |
8 |
Drive
|
Omron |
9 |
Inverter
|
Mitsubishi |
