Steel Bending Machine for Sale, Cnc Steel Rod Bending Machine
US$ 10,000 - 20,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
LVD-CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Sheet Bending Machine, Pro Max Metal Bending MachineUS$ 10,000 - 20,000MOQ: 1 Set -
Auto Bender Machine, Metal Roof Panel Bend MachineUS$ 10,000 - 20,000MOQ: 1 Set
-
Heavy Duty Hydraulic Press Brake Series-dener Pump xl CncUS$ 10,000 - 20,000MOQ: 1 Set
-
Good Price LVD Press Brake Tooling, LVD Press Brake Die , Press Brake Punch and Die Tools Quality ChoiceUS$ 100 - 1,000MOQ: 1 Piece
-
Press Brake Die and Tooling, Goose Neck Punch for Press BrakeUS$ 100 - 300MOQ: 1 Piece
Condition
New
Place of Origin
Anhui, China
Brand Name
LVD-CNC
Model Number
WC67K
Machine Type
Beading Machine
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Stainless Steel
Power
Hydraulic
Automation
Automatic
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Company Information
| Factory Information |
| Manufacturers: Ma Anshan LVD CNC Machine Tool CO., LTD |
| Brand : LVD-CNC |
| Address: Zhenxi industrial Park, Bowang, Ma Anshan City, Anhui province, China |
| Tel: +86 555-6766881 Fax: +86 555-6766881 Phone: + 86 159 555 36553 (WhatsAPP) |
| E-M-A-I-L: purity(at) |
| Website: http://lvdcnc.en.china.cn/ |
| Main Products: CNC Press Brake, Shearing Machine, Power Press Machine, Rolling Machine, Hydraulic Press Machine, Ironworker, Hydraulic Machines, Forging Machine Equipment |
Steel bending machine for sale, cnc steel rod bending machine
Product Description
|
| Main Features |
| 1. WC67K series torsion bar NC control press brake which fitted with numeric controller basis on the WC67Y series press brake |
| 2. Multi-steps programming function is able to achieve an automatic operation and continous positioning of multi-steps procedures, as well as an automatic prcision adjustment for positions of rear stopper and upper beam. |
| 3. The machine is provided with bend counting function, real-time display of processing quantity, power-failure memory of positions of rear stopper, upper beam, programs and parameters. |
| 4. With ball screw, rolling guide, high repeat positioning accuracy. |
| Main outsourcing parts manufacturers |
| 1. Hydraulic System: Germony Bosch(Rexroh) |
| 2. Oil Pump: Shanghai Cheng Jie standards silence gear pump |
| 3. Seals: the choice of the United States Parker |
| 4. Electrical Components: French Snyder |
| 5. Motor: EDBO5 |
| 6. Ball Screw: Taiwan ABBA |
| 7. Linear Guide: Germony Bosch(Rexroh) |
| 8. CNC Contrl Systems: the choice of frequency control system Nanjing Estun E21 |
| Optional |
| 1. CNC system DA41 servo control system |
| 2. Fixture Device: portable fast clip |
| 3. Support Device: removable front support device and lift model back support device |
| 4. Safety Devices: photoelectric protection, laser protection |
| 5. Mechanism Compensation: the lower cylinder mechanism compensation |
Detailed Images

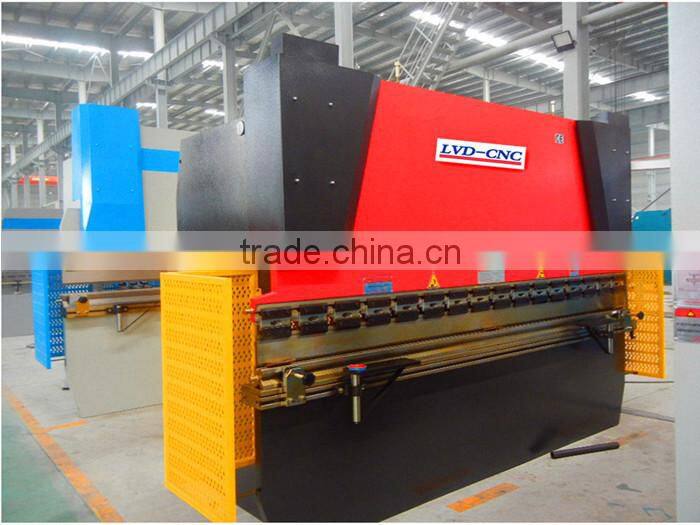

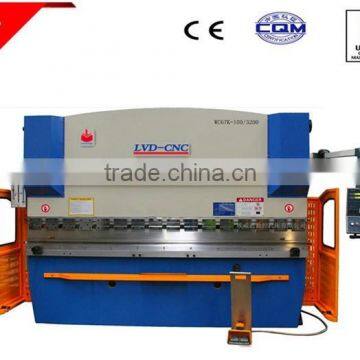

| The whole image of cnc steel rod bending machine |
|

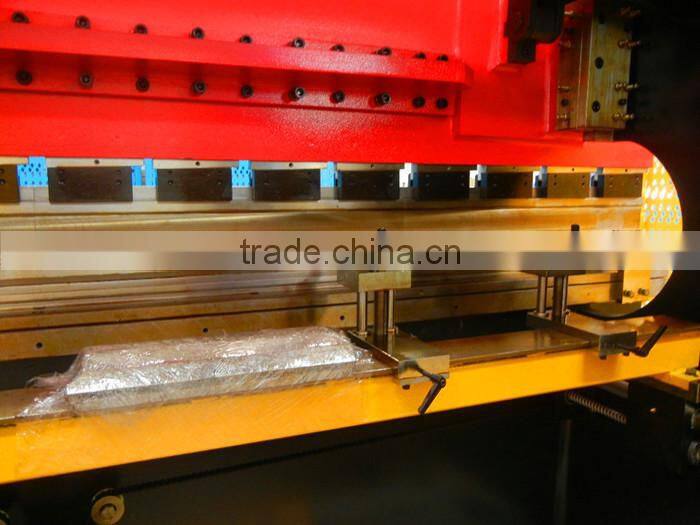

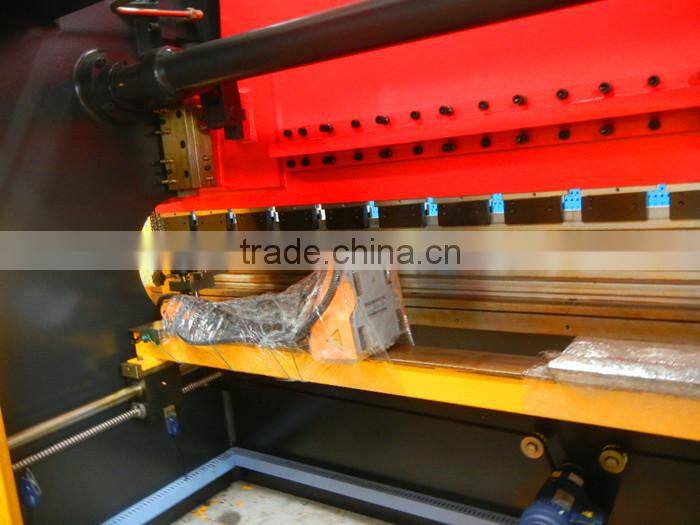

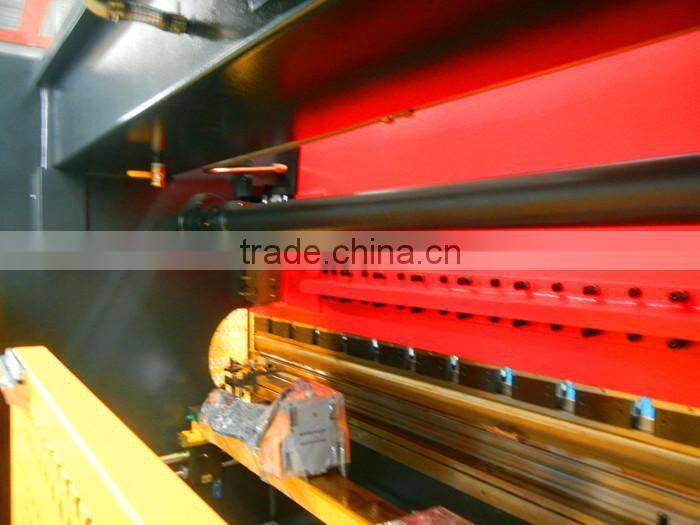

| Quick clamping and worktable of cnc steel rod bending machine |
|

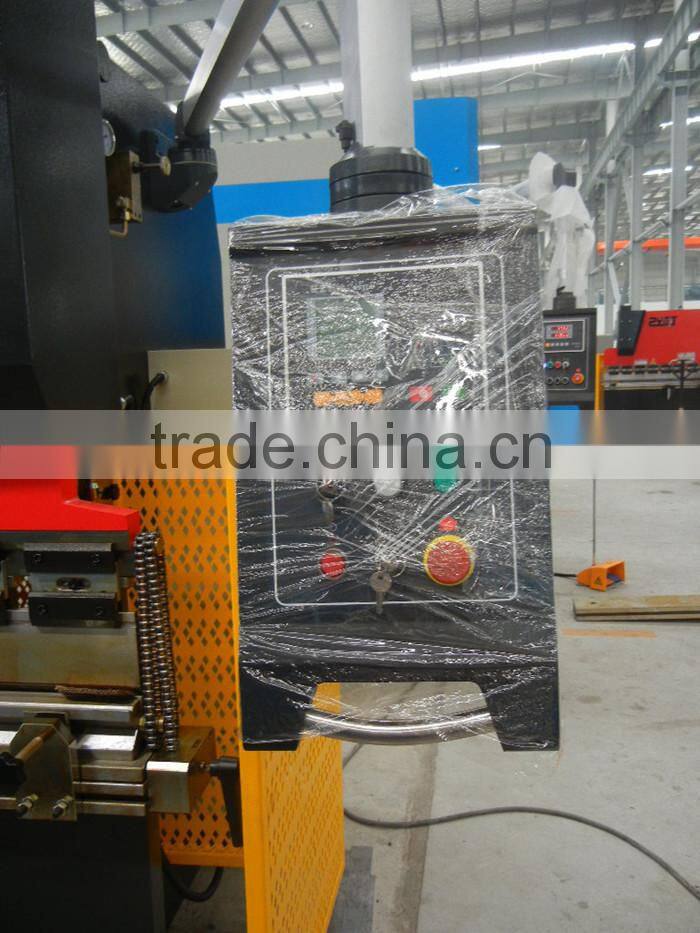

| E21 CNC system of cnc steel rod bending machine |
|
|
Features of E21 Controll System 1. Positioning control of backgauge 2. Intelligent positioning control 3. One-side and two-side positioning which eliminates spindle clearance effectively 4. Retract functions and automatic reference searching 5. One-key parameter backup and restore, fast positioning indexing 6. 40 programs storage space, each program has 25 steps 7. Power-off memorization |

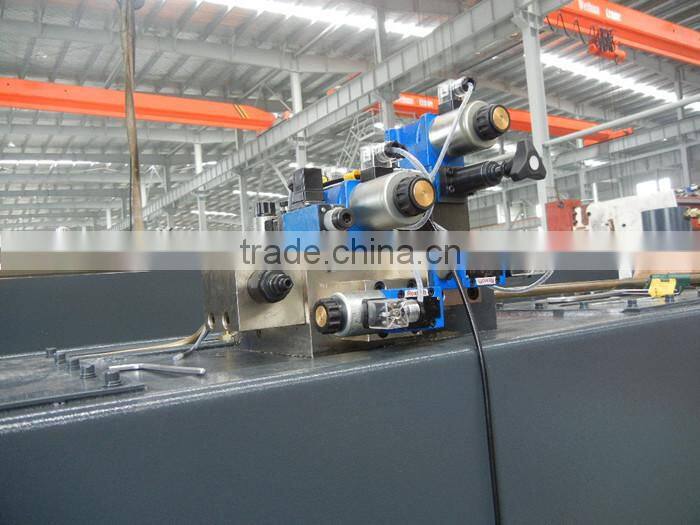

| Hydraulic valve from Germony Bosch(Rexroh) |
|

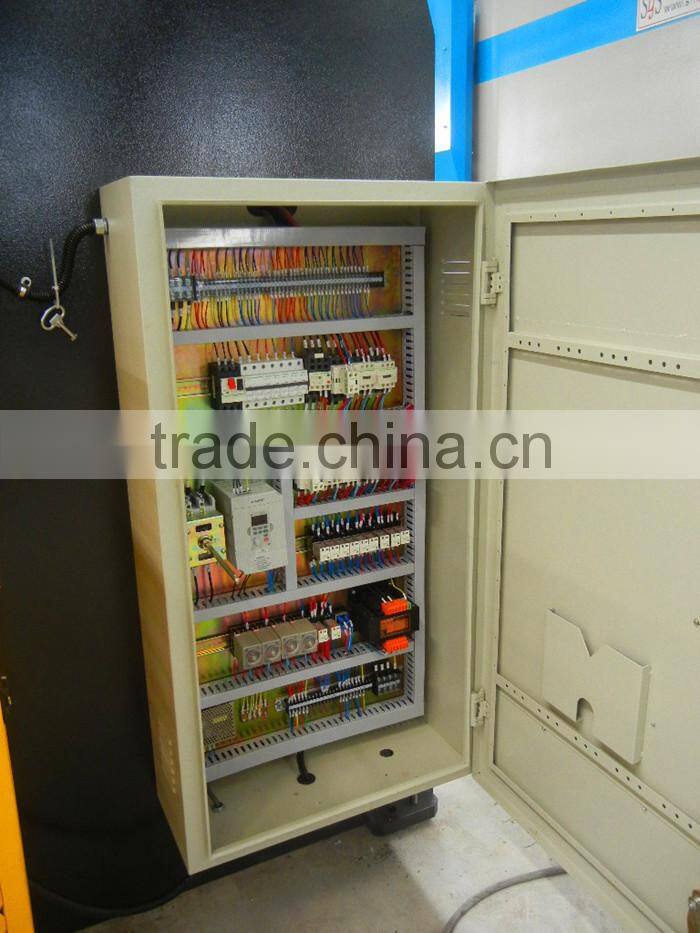

| All electrical original from Schneider Electric |
|
| 4 aix of cnc steel rod bending machine |
|

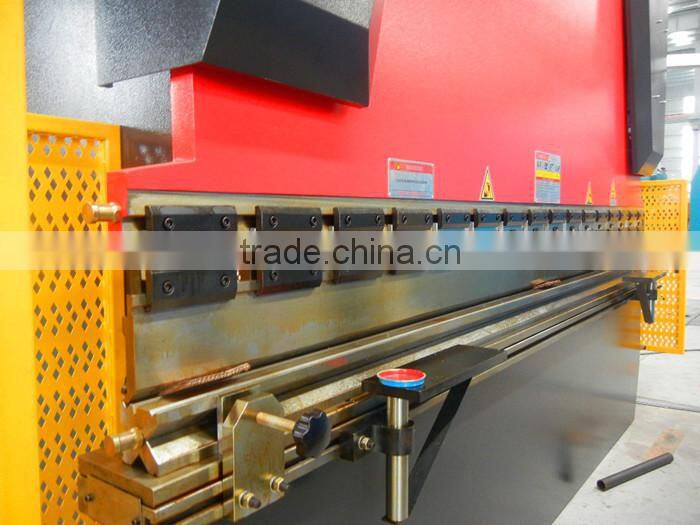

| Ball scew and linear guide from Taiwan ABBA |
|
| Torsion bar of cnc steel rod bending machine |
|

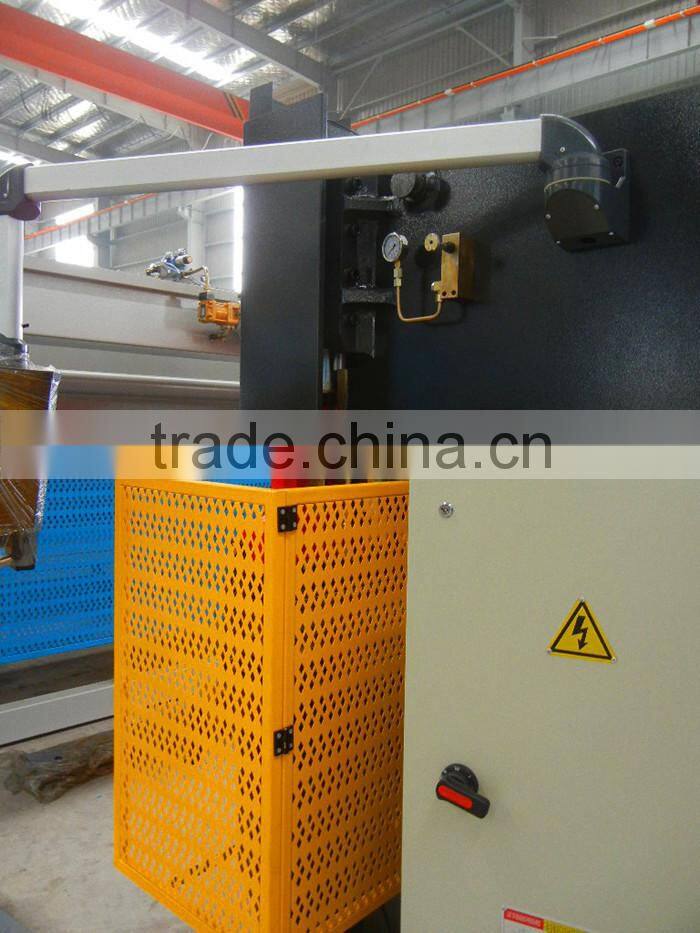

| Protection and interlock of cnc steel rod bending machine |
|

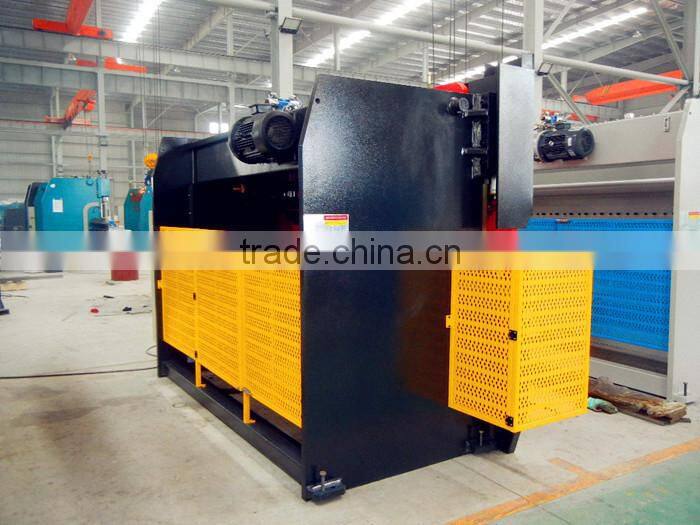

| CNC press brake machine on the back of protection |
|
|
Package
| Package |
|
|
Technical Parameters
| The main technical parameters of cnc steel rod bending machine | |
| Model | 100/3200 |
| Nominal Pressure(KN) | 1000 |
| Worktable Length(mm) | 3200 |
| Pillars Distance(mm) | 2700 |
| Throat Depth(mm) | 320 |
| Slider Stroke(mm) | 120 |
| Max. Open Heigh of Slider and Worktable(mm) | 450 |
| Main Motor Power(kw) | 7.5 |
| Dimension(L*W*H)(mm) | 3450*1450*2600 |
Our Services
| Our Services | |
| Long term cooperation | If we keep a long term cooperation, there will be more discount. |
| Problem solving | We will provide solution in one day. |
| Technical Service | Our technician is available to give your technical helping or how to use our machines. You can also send your technician to our company to learn how to operate machines. |
| Quality Guarantee | We provide two years warranty.We sign the agreement with detailed technical data |
FAQ
| FAQ |
| a. Where is your factory located? How can I visit there? |
| Our factory is located in Anhui Maanshan Province(next to Shanghai),China.You can fly to Shanghai airport directly.All our clients, from home or abroad, are warmly welcome to visit us! |
| b. How does your factory do regarding quality control? |
| "Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO,BV authentication. |
| c. Trade Terms: |
|
1.Payment: T/T,Western Union,MoneyGram,PayPal;30% deposits;70% balance before deliverying. 3.MOQ: 1 pcs |
| d. Why choose us? |
|
1. We are China leading hydraulic press manufacturer. 2. Inspected by the Inspection Institution of Bereau Verita Certification. 3. 100% QC inspection before shipment. 4. Best quality and best service with competitive price. |
| e.How to contact us? |
| Send your Inquiry Details in the Blow, Click "Send" Now! |
