Fast Pneumatic Bending Machine, Bending Machine Used for Sheet Metal
US$ 1 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
LVD-CNC
Payment & Shipping
Payment Methods:
Port of Shipment:
ShangHai Port China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Auto Bending Machine, Blade Bending Machine With Beautiful AppearanceUS$ 1 - 15,000MOQ: 1 Set -
High Precision and Efficiency Hand Operated Bending Machine, Hand Iron Bending MachineUS$ 1 - 15,000MOQ: 1 Set
-
Good Bending Machine Tools for New Type Steel Plate Bending MachineUS$ 1 - 15,000MOQ: 1 Set
-
Machine to Cut and Bending Iron, Cnc Sheet Metal Bending MachineUS$ 1 - 15,000MOQ: 1 Set
-
Folding Machine Manufacturer, Beautiful Automatic Folding Machine, Iron Folding Machine Metal CheapUS$ 300 - 1,500MOQ: 1 Set
Condition
New
Place of Origin
Anhui, China
Brand Name
LVD-CNC
Model Number
WC67Y-100T*3200
Machine Type
Press Brake
Raw Material
Sheet / Plate Rolling
Material / Metal Processed
Other, Stainless Steel, All of metal
Power
Hydraulic
Automation
Manual
Extra Services
End Forming
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Fast pneumatic bending machine, bending machine used for sheet metal
| Specifications | |
| 1. | High quality and high precision |
| 2. | Easy operation and safety |
| 3. | Hydraulic system |
| 4. | CNC machine |
| Product Information |
| Photos of pneumatic bending machine |

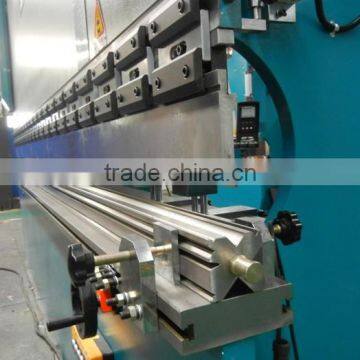

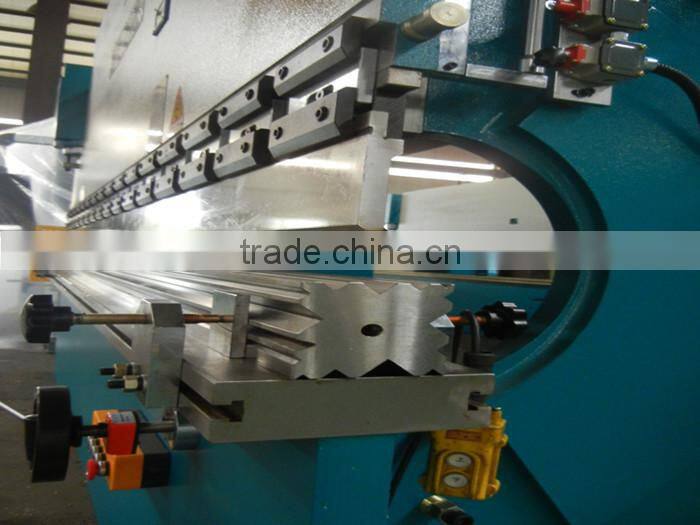

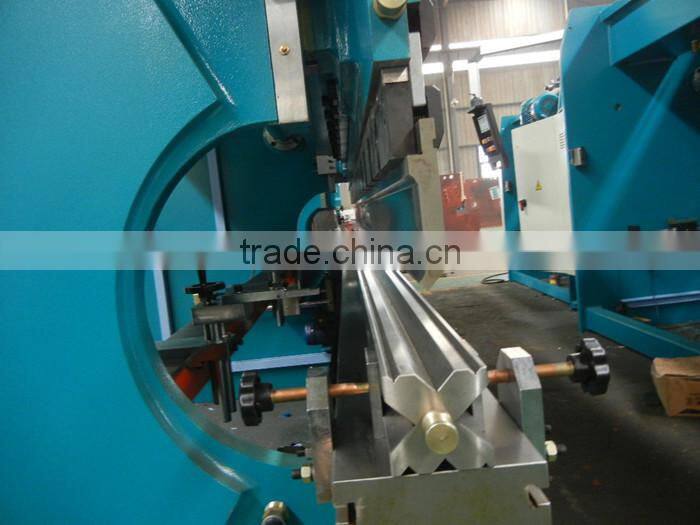

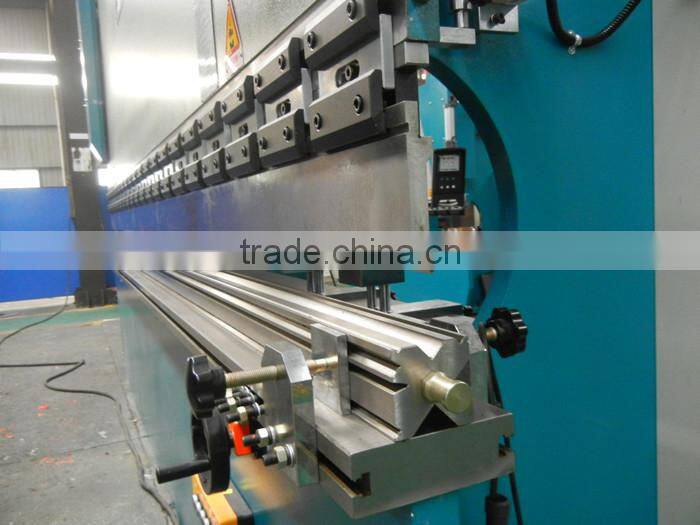

| Standard mould and mould fast clip of pneumatic bending machine |
|
|
|
|

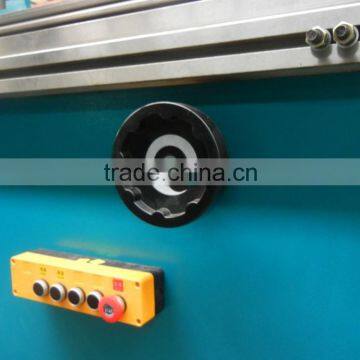

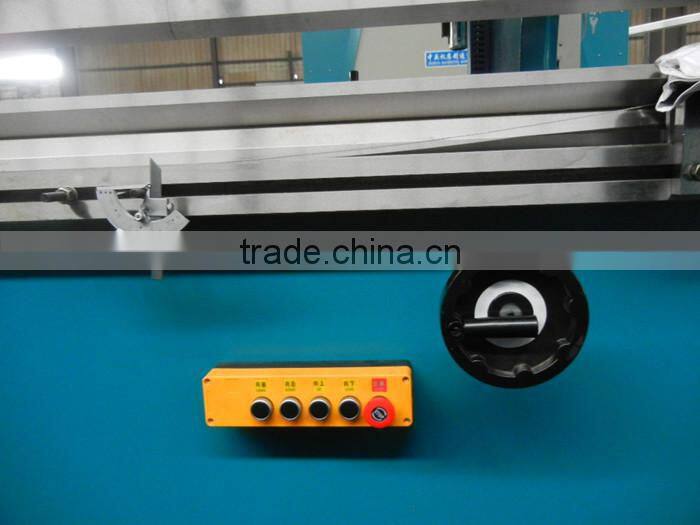

Manual adjustment of pneumatic bending machine
|
|

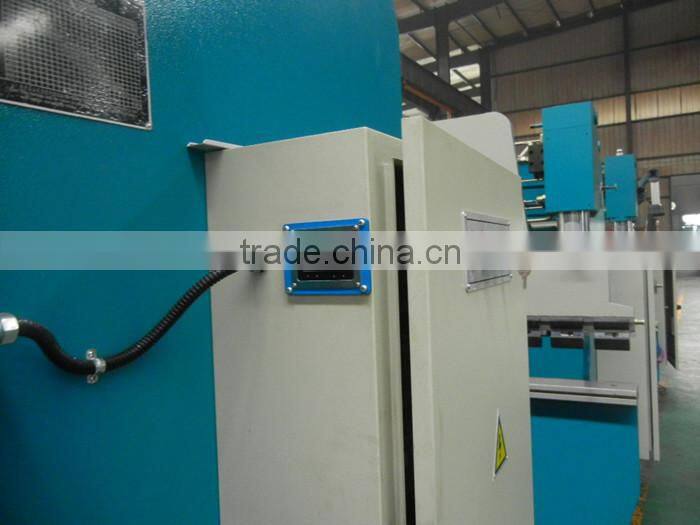

Interlock of pneumatic bending machine
|
|

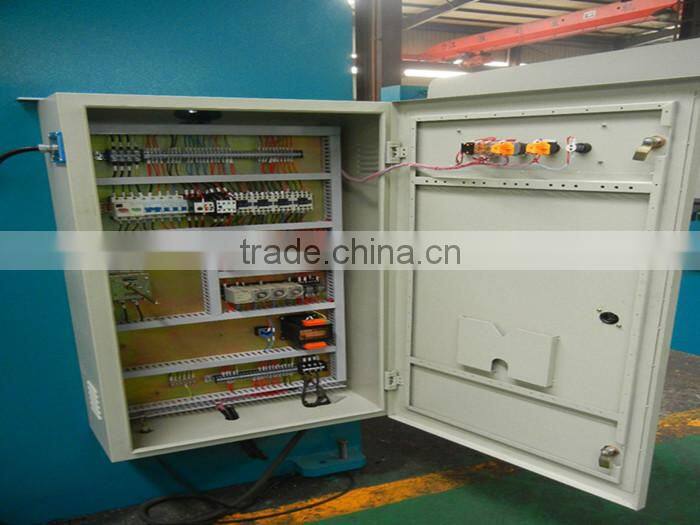

Electric cabinet of pneumatic bending machine
|

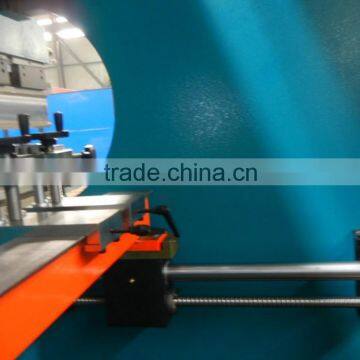

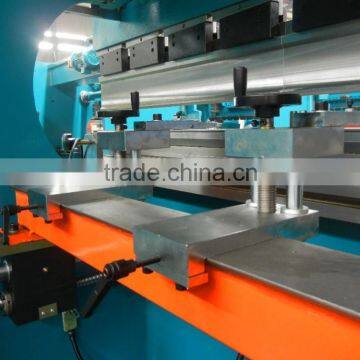

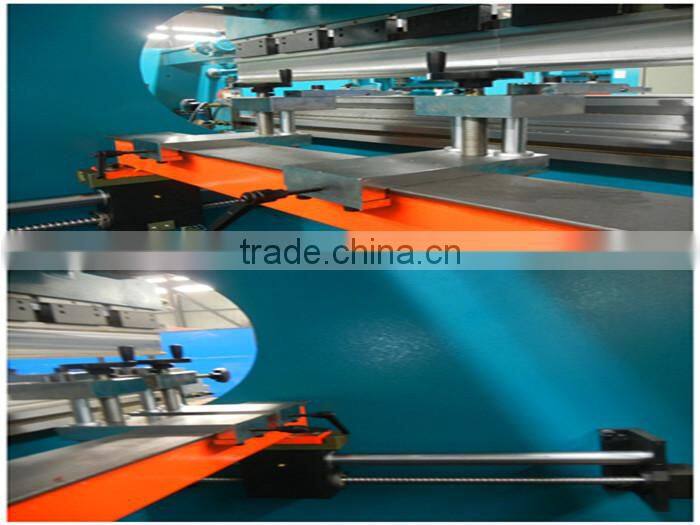

Backgauge and ball screw of pneumatic bending machine |
|

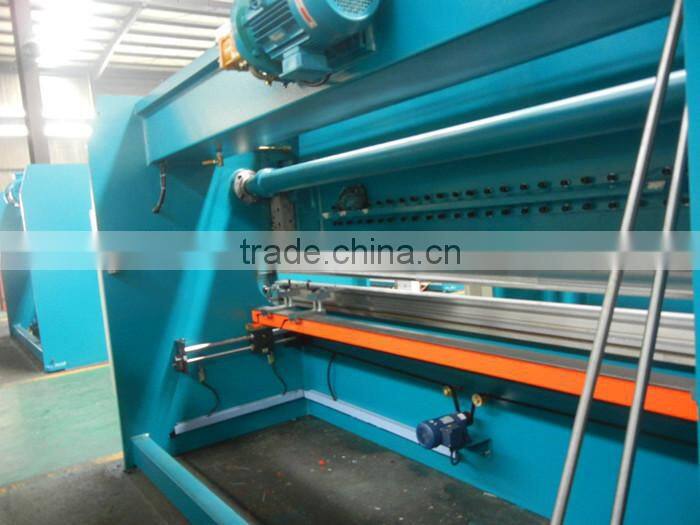

Back of pneumatic bending machine
|
| Characters and Features | |
| Frame | Overal welded structure,fireplace tempering treatment, and high accuracy of the machine |
| Hydraulic(tool moving mode) | Stepless adjustment, high-quality imported seal ring to ensure the reliability |
| Mechanical synchronization | Upper and lower composite compensation structure to improve the machining accuracy |
| Slide stroke adjustment and backgauge positioning adjustment | Electric fast tuning and manual fine-tuning, with digital display |
| Inch, single, continuous operation mode is designed for WC67Y Hydraulic Press Brake(Plate Bending Machine) and reversing and maintenance time can be controlled by the time relays | |
| Safety fence and electric interlocker have been designed for WC67Y Hydraulic Press Brake(Plate Bending Machine) to ensure the operation safety | |
| Optional Configuation | |
|
E10D |
Shear counting |
| Automation compaensation for X-axle screw pitch error | |
| Prompt of X-axle single-way positioning clearance | |
| X-axle soft limit stop | |
| One set of built-in time relays | |
| Free setting of proportional factors | |
| Power-failure position memeory | |
| Conversion between metric system and inch system | |
|
CNC-100 |
64*128LCD display, choice of high blue display |
| X, Y-ais all-digital display, display precision 0.01mm | |
| With manual and automatic positioning, high precision control | |
| Programmable, ten working steps | |
| Electric control valve assmbly of the movement by the system, convenient and reliable | |
| X, Y-ais positioning capabilities are one way to ensure transmission accuracy | |
| External switch self-diagnosis function to facilitate the circuit judge and eliminate breakdoan | |
| System with counting function, the user can choose plus or minus type of counter-type way | |
| External buttons can be extended to facilitate the needs of cuetomers; can choose to control the drive | |
| Technical parameters | |
| Model | 100/3200 |
| Mominal Pressure(kn) | 1000 |
| Length of Working Table(mm) | 3200 |
| Distance between Uprights | 2600 |
| Troat Depth(mm) | 320 |
| Ram Stroke(mm) | 120 |
| Power of Main Motor(kw) | 7.5 |
| Dimensions L*W*H(mm) | 3300*1800*2445 |
